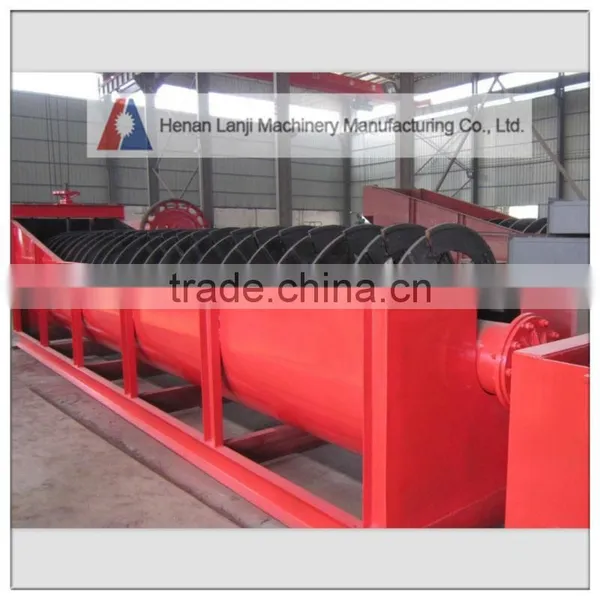

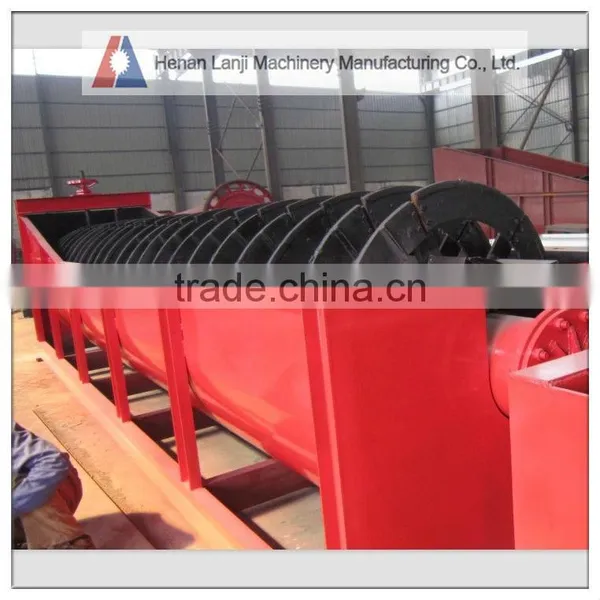

Mining spiral sand washer machine :
1. Three functions: cleaning, dewatering and grading.2. Cleaning and upward conveying at the same time.
3. Low water consumption; durable.
4. Impellers use wear resisting plate or polyurethane material, reduce the running cost.
5. Designed according to low volume, low investment.
6. Capacity of screw sand washer is above 100t/H, effectively control the sand washing loss.
Spiral sand washer Application fields:
The product of this series is applicable to washing, grading and dewatering #70 sand which is used for casting in construction field, sand plant, concrete dam field of hydropower station and post utility pole plant, quartz sand used in glass plant and pressure sand used for backfilling of oil well. It can wash and select material with fine or coarse granularity and is especially suitable for construction sand and road building sand.
Spiral sand washer Suitable material:
The product of this series is a high-efficiency bucket type sand washer developed and produced according to actual situations of Chinese sandstone industry. Cooperating with sand maker and having functions of cleaning, dewatering and grading, it can remove impurities (such as dust) in sand product.
3. Technical Data of spiral sand washer:
Model |
Spiral diameter (mm) |
Feeding size (mm) |
Water consumption(t/h) |
Capacity (t) |
Power (kw) |
Overall Dimensions L*W*H (mm) |
Weight(kg) |
XL-508 |
508 |
≤10 |
14-88 |
20 |
5.5 |
8000X2343X1530 |
2670 |
XL-610 |
610 |
≤10 |
14-165 |
50 |
7.5 |
8000X2490X1530 |
3800 |
XL-762 |
762 |
≤10 |
18-124 |
75 |
11 |
9070X2650X1638 |
5225 |
XL-914 |
914 |
≤10 |
18-162 |
100 |
15 |
9070X2650X1638 |
6370 |
XL-1118 |
1118 |
≤10 |
27-333 |
175 |
30 |
9070X2830X1900 |
9800 |
