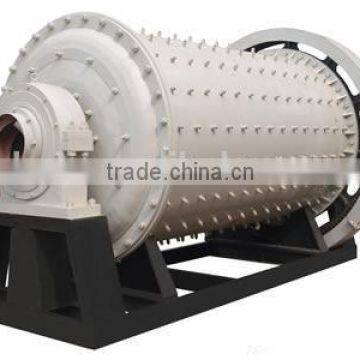

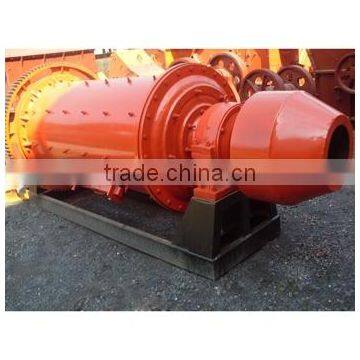

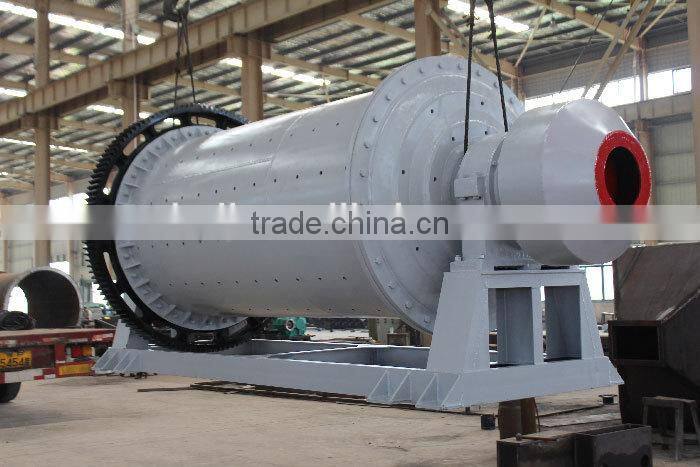

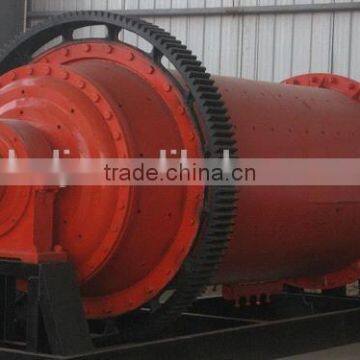

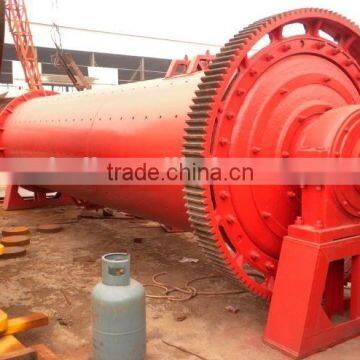

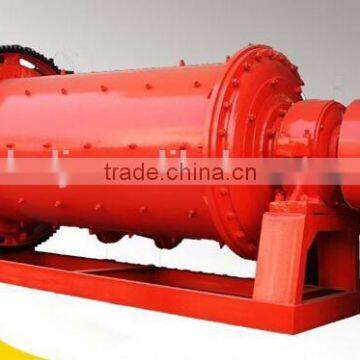

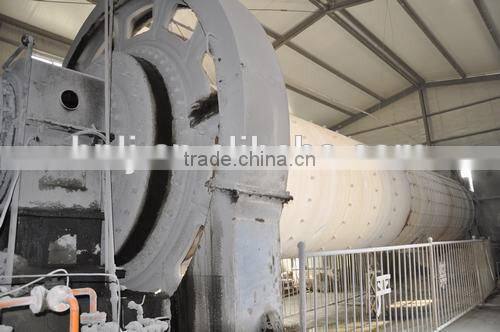

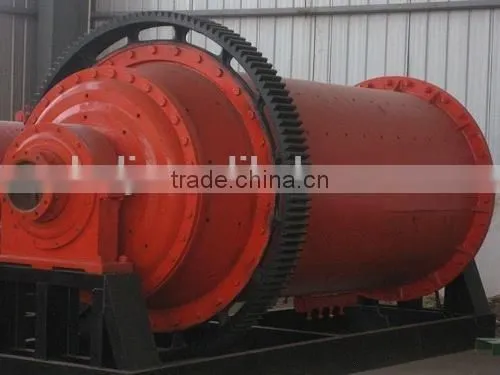

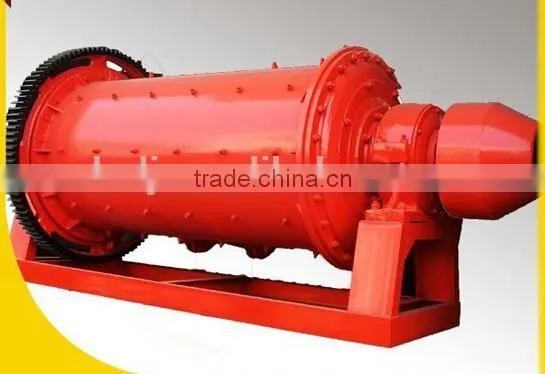

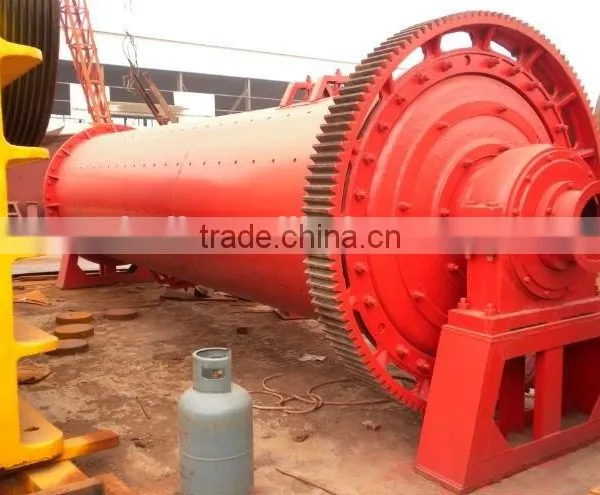

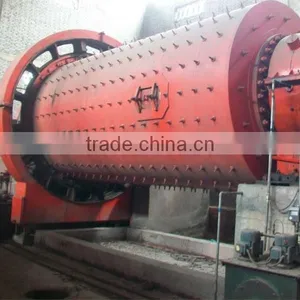

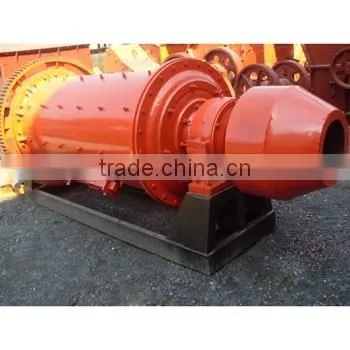

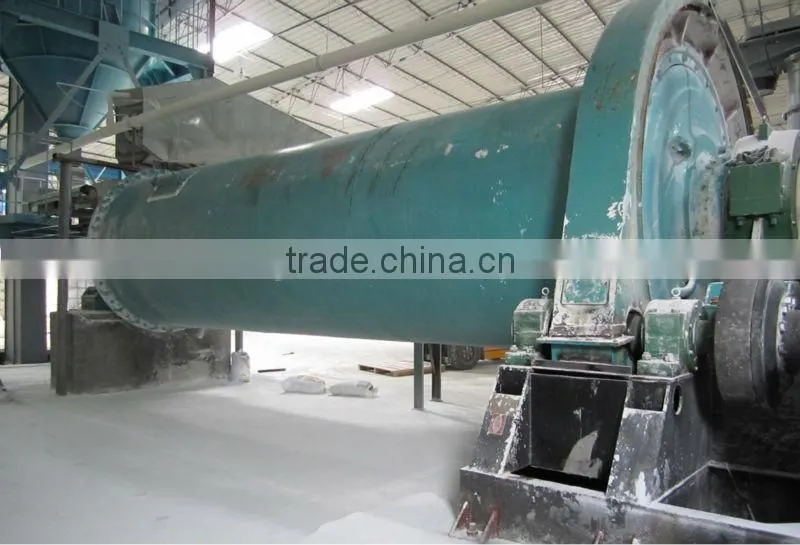

Dry ball mill plant for limestone grinding station :
dry ball grindng mill introduction:
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.gold ball mill is wet grinding in the ore dressing plant,the output size will be 0.4-0.074mm, it can be adjusted by working with the spiral classifier.
dry ball grindng mill strucuture:
Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.
The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
dry ball grindng mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
dry ball grindng mill featurers:
1.Large application range, simple structure and convenient maintenance;
2.Large capacity and continuous work are very obvious;
3.Barrel lining and grinding media can apply various abrasive materials;
4.Installation and adjustment are very convenient and easy to be operated.
dry ball grindng mill main technial parameter:
Model |
shell rotation speed (r/min) |
Ball load (t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity (t/h) |
Power (KW) |
Weight (T) |
900×1800 |
38 |
1.5 |
≤20 |
0.075 -0.89 |
0.65 -2 |
18.5 |
3.6 |
900×2100 |
38 |
1.3-1.4 |
≤15 |
0.075 -0.83 |
0.7-3.5 |
18.5 |
3.9 |
900×3000 |
38 |
2.7 |
≤20 |
0.075 -0.89 |
1.1-3.5 |
22 |
4.5 |
1200×2400 |
32 |
3.8 |
≤25 |
0.0745-0.6 |
1.5-4.8 |
30 |
11.5 |
1200×2800 |
32 |
3.3-3.5 |
≤25 |
0.0745-0.6 |
2-6 |
30 |
12.8 |
1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
13 |
1200×4500 |
32 |
7 |
≤25 |
0.074 -0.4 |
1.6-5.8 |
45 |
13.8 |
1500×3000 |
27 |
8 |
≤25 |
0.074 -0.4 |
2-5 |
75 |
17 |
1500 ×3500 |
27 |
6.75-6.4 |
≤25 |
0.075 -0.4 |
3-7 |
75 |
17.5 |
1500×4500 |
27 |
14 |
≤25 |
0.074 -0.4 |
3.5-12 |
110 |
21 |
1500×5700 |
27 |
15 |
≤25 |
0.074 -0.4 |
3.5-8 |
115 |
24.7 |
1830×3000 |
24 |
18 |
≤25 |
0.074 -0.4 |
4-10 |
130 |
28 |
1800×3600 |
24 |
10.6-11.35 |
≤25 |
0.075 -0.4 |
5-22 |
130 |
30 |
1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
1830×6400 |
24.1 |
21 |
≤25 |
0.074~0.4 |
6.5-15 |
210 |
34 |
1830×7000 |
24 |
25 |
≤25 |
0.074 -0.4 |
7.5-17 |
210 |
36 |
2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
155 |
39 |
2100×3600 |
22 |
14-15.2 |
≤25 |
0.075 -0.4 |
15-36 |
370 |
42 |
2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
43.8 |
2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
56.6 |
2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
45.5 |
2200×5500 |
21 |
30 |
≤25 |
0.074 -0.4 |
10-20 |
210 |
48.5 |
2200×6500 |
21 |
31 |
≤25 |
0.074 -0.4 |
14-26 |
380 |
52.8 |
2200*7000 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-28 |
380 |
54 |
2200×7500 |
21 |
33 |
≤25 |
0.074 -0.4 |
16-29 |
380 |
56 |
2400×3000 |
20.6 |
15.5-16.6 |
≤25 |
0.075 -0.4 |
22-24 |
245 |
59 |
2400×4500 |
21 |
30 |
≤25 |
0.074 -0.4 |
8.5-60 |
380 |
65 |
2700×3600 |
20.6 |
39 |
≤25 |
0.074 -0.4 |
12-70 |
400 |
91.3 |
2700×4000 |
20.7 |
40 |
≤25 |
0.074 -0.4 |
12-80 |
400 |
94 |
2700×4500 |
20.7 |
48 |
≤25 |
0.074 -0.4 |
12-90 |
430 |
102 |
3200×4500 |
18 |
65 |
≤25 |
0.075 |
according to the technology |
800 |
137 |
