Dry cement ball grinding mill :
1.simple structure ball mill
uced consumption by 30%
3.increased capacity by 20%
4.Improve fineness
1.Double-row self-aligning spherical roller bearing replaces babbit-lined bearing. Friction resistance is greatly lowered down, easy to start and 20-30% of energy is saved.

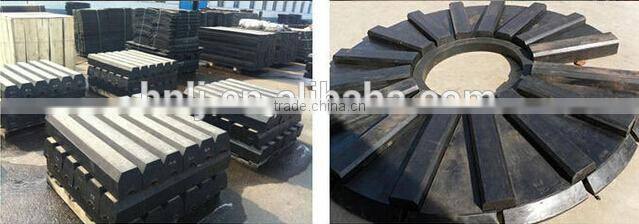

2.Grooved and ringed liner increases contacting surface between balls and ores, improving milling effect and saving energy through its lifting effect on the materials.
3.All-in-one frame of ore processing ball mill is used in middle-sized or small-sized machinery, facilitating engineering construction and equipment installation.
4.Large discharging outlet and high capacity,discharge coarse particles,usually used in first stage milling.
5.It can be used for grinding particles in the process of metal mineral resouces, such as gold, silver, iron, copper, lead, zinc etc., and non-metal mineral resources.
cement ball mill features:
1)New type on improved on the old type 2) Large diameter double roe self-aligning roller bearings
3) The whole rack, easy to install 4) By adopting an integral steel under-frame,installation precision is high.

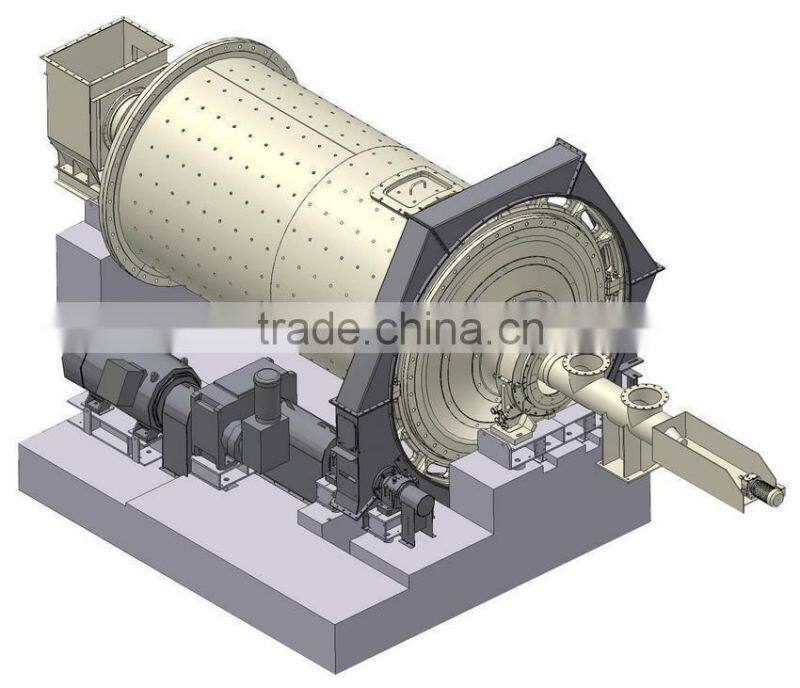

ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
cement ball mill main technical parameters:
| Model | Cylinder rotary speed(r/min) | Loading ball weight(t) | Input size(mm) | Discharge size(mm) | Capacity(t/h) | Motor power (kw) | Weight (t) |
| Ø900×1800 | 39 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
| Ø900×3000 | 39 | 2.7 | ≤20 | 0.075-0.89 | 1~4 | 22 | 5.6 |
| Ø1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2~5 | 75 | 15.6 |
| Ø1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ø1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4~10 | 130 | 28 |
| Ø1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 7~16 | 210 | 34 |
| Ø2100×3600 | 23 | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
| Ø2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 12~23 | 280 | 48.5 |
| Ø2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø2200×7000 | 21 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| Ø2200×7500 | 21 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| Ø2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 18-45 | 320 | 65 |
| Ø2700×3600 | 21 | 39 | ≤25 | 0.074-0.4 | 19-75 | 400 | 83 |
| Ø2700×4500 | 20 | 48 | ≤25 | 0.074-0.4 | 22-85 | 430 | 89 |
| Ø3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 29-140 | 800 | 137 |
| Ø3200×5400 | 18 | 81.6 | ≤25 | 0.074-0.4 | 30-180 | 800-1000 | 146 |
| Ø3600×4500 | 17 | 88 | ≤25 | 0.074-0.4 | 35-210 | 1000 | 190 |
| Ø3600×8500 | 17 | 144 | ≤25 | 0.074-0.4 | 45-260 | 1800 | 260 |
