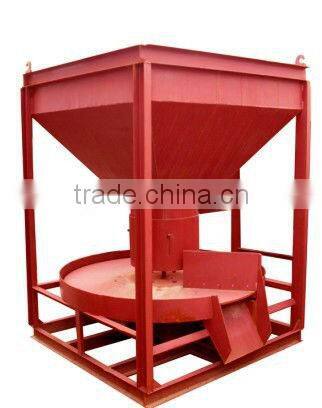

Top quality disc feeder direct on selling
- 120 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T D/P D/A
You May Like
-
Good quality disc feeder with nice price on selling
-
Best quality disc cement feeder with nice price on selling
-
Hot sale disc feeder with nice price
-
New ore Chute Feeder with nice price on selling
-
Mining ore vibrating feeder machine GZD series
-
Top quality double roller extruder granulator for inorganic fertilizer industry
Product Details
| Condition | New | Capacity(t/h) | 0.69-60 t/h | |
| Place of Origin | Henan, China | Brand Name | Lanji | |
| Model Number | DK600 | Dimension(L*W*H) | all | |
| Weight | all | Certification | ISO | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
disc feeder:1.Simple structure.
2.Easy tooperate.
3.Long using life.
4.Quick delivery.
Top quality disc feeder direct on selling
1. Disc Feeder Introduction:
Disc Feeder is the volumetric measuring feeding equipment. The disc feeder can feed the materials to the every working procedure evenly and continuously. The disc feeder is applied to feed all kinds of non-adhesive materials, and it doesn't applied to good flow properties powder materials. The materials that are suitable the disc feeder to send include ore stone, coal, cement, clinker, limestone, clay and other powder, granular or small-block materials.
2. Disc feeder application:
Disk feeder is applicable to the following 20mm ore powder feeding equipment.
Disk feeder by the device driver, feeder ontology, metrology and measurement
devices belt conveyor components. Feeder and belt conveyor driven by a driving
device, the device driver with the electromagnetic clutch of feeder opening, stop
and change both functional role. Measurement conveyor belt speed is less than
1m / s, in order to speed with a velocity detection device, in order to prevent a
deviation detection Weighing roll-adjusted.
3. Disc Feeder Technical Parameter:
Model | Type | Disc Diameter (mm) | Feeding Capacity (m³/h) | Disc rotary Speed (r/min) | Material Size(mm) | Equipped Motor(kw) |
DK 600 | Open | 600 | 0.69-3.9 | 8 | 25 | Y90L-41.1 kw |
DK 800 | Open | 800 | 1.6-7 | 8 | 40 | Y90L-41.5 kw |
DK 1000 | Open | 1000 | 4.2-12 | 8 | 50 | Y100L-42.2 kw |
DK 1200 | Open | 1250 | 6-15 | 7.5 | 50 | Y112L-44 kw |
DK 1500 | Open | 1500 | 12-21 | 7.5 | 50 | Y120L-44 kw |
DK 2000 | Open | 2000 | 18-32 | 7.5 | 50 | Y132L-47.5 kw |
