PE Mining Jaw Crusher

PE Mining Jaw Crusher thumbnail-1
PE Mining Jaw Crusher thumbnail-2
PE Mining Jaw Crusher thumbnail-3
PE Mining Jaw Crusher thumbnail-4
PE Mining Jaw Crusher thumbnail-5
PE Mining Jaw Crusher photo-1
PE Mining Jaw Crusher photo-2
PE Mining Jaw Crusher photo-3
PE Mining Jaw Crusher photo-4
PE Mining Jaw Crusher photo-5
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
quarry plant,mining plant
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Jaw Crusher
Application quarry plant,mining plant
Motor Type DC Motor
Power(W) refer to different specification
Capacity(t/h) 40-120
Place of Origin Henan, China
Brand Name Lanji
Model Number PE250*400-PE900*1200
Dimension(L*W*H) all
Weight all, 17600kg
Certification ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

PE jaw crusher:



High ratio Stone Crusher



Easy maintance



Reasonable price and High quality



pe series stone crusher



 Jaw crusher is made up by the dynamic and static jaw plates composed of two crushing chamber to simulate the movement of animals to complete two jaw crusher crushing materials, special equipment for gravel.

Henan LanJi Machinery Manufacturing Co., Ltd. production of jaw crushers has the characteristics of large breaking ratio, uniform product size, simple structure, reliable operation, easy maintenance,low operating costs and so on.

Jaw crusher structure drawing:

 PE mining jaw crusher



 jaw crusher working principle:

concrete jaw crusher is typically of the square opening design, and secondary jaw crusher is of the rectangular opening design. Jaw Crusher reduces large size rocks or ore by placing the rock into compression. A fixed jaw board, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The space at the bottom of the "V" aligned jaw plates decide the crusher product size gap, or the size of the crushed product from the jaw crusher. The rock remains in the jaw until it is small enough to pass through the gap at the bottom of the jaws.

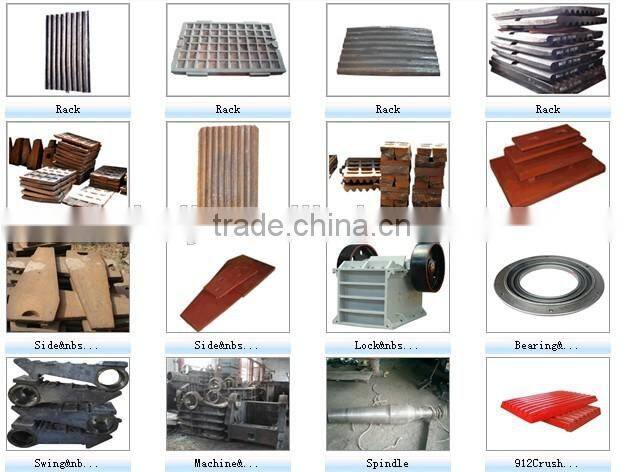

 jaw crusher parts:

PE mining jaw crusher



Technical data of jaw crusher:



Model

Feed opening size
(mm)

Max Feed
size
(mm)

Adjusting
range of discharge opening
(mm)

Capacity
(t/h)

Rotation speed of eccentric shaft
(r/min)

Motor power
(kw)

Total weight
(t)

Dimensions
(L*W*H)
(mm)

PE-150×250

150×250

125

10-40

1-3

250

5.5

0.8

720×660×850

PE-200×300

200×300

180

15-50

2-6

260

7.5

1.2

910×750×990

PE-200×350

200×350

180

18-70

3-10

260

11

1.5

1000×870×990

PE-250×400

250×400

210

20-60

5-20

300

15

2.8

1300×1090×1270

PE-400×600

400×600

340

40-100

16-60

275

30

7

1730×1730×1630

PE-500×750

500×750

425

50-100

40-110

275

55

12

1980×2080×1870

PE-600×750

600×750

500

150-200

80-240

275

55

15.8

2070×2000×1920

PE-600×900II

600×900

500

65-160

50-180

250

55

17

2190×2206×2300

PE-750×1060

750×1060

630

80-140

110-320

250

110

29

2660×2430×2800

PE-800×1060

800×1060

640

130-190

130-330

250

110

29.8

2710×2430×2800

PE-830×1060

830×1060

650

160-220

150-336

250

110

30.7

2740×2430×2800

PE-870×1060

870×1060

660

200-260

190-336

250

110

31.5

2810×2430×2800

PE-900×1060

900×1060

685

230-290

230-390

250

110

33

2870×2420×2940

PE-900×1200

900×1200

750

95-165

220-450

200

110

52

3380×2870×3330

PE-1000×1200

1000×1200

850

195-265

315-500

200

110

55

3480×2876×3330

PE-1200×1500

1200×1500

1020

150-350

400-800

180

160

100.9

4200×3300×3500

PE-1500×1800

1500×1800

1200

220-350

500-1000

180

280

122

5160×3660×4248

PE-1800×2100

1800×2100

1500

300-400

600-1200

160

400

150.6

6210×4013×4716

PEX-150×750

150×750

120

18-48

8-25

320

15

3.8

1200×1530×1060

PEX-250×750

250×750

210

25-60

13-35

330

30

5.5

1380×1750×1540

PEX-250×1000

250×1000

210

25-60

16-52

330

30

7

1560×1950×1390

PEX-250×1200

250×1200

210

25-60

20-61

330

37

9.7

2140×1660×1500

PEX-300×1300

300×1300

250

20-90

16-105

300

55

15.6

2720×1950×1600



                              PE mining jaw crusher

 Servie:



1.Installation: The seller provide all drawings for installation, engineers available to service machinery overseas.

2.After sale service: 1year guarantee.

PE mining jaw crusher



PE mining jaw crusher



Contact: Ms Sara

Mobile phone : 008613783471727

Skype: sarapang6

Email: lj003 at lanjimachinery dot com
