High crushing ratio double roller cruser
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T D/P D/A
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, Roller Crusher, double roller crusher | Application: | mine selection, chemicals, refractory materials |
Motor Type: | DC Motor | Power(W): | refrer to specification | Capacity(t/h): | 5-50 |
Place of Origin: | Henan, China | Brand Name: | Lanji | Model Number: | 2PG-400*250-2PG900*500 |
Dimension(L*W*H): | refer to specification | Weight: | refer to specification, 1500-14000kg | Certification: | ISO |
Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Roller crusher:
Processing capacity: 5-100t/h
Roller diameter: 400-700mm
Feeding size: ≤25-≤100
Double roller crusher /roll crusher with nice price for sone crushing:
Double rollers crusher Description : High crushing ratio double roller cruser
Double roller crusher apply to the crushing of medium or lower hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, refractory materials ,cement and building materials industrial production, such as limestone, slag, coke, coal . The two gear roller is lubricate by the oil pump,the material is crushed by the gear roller .Double roller crusher can adjust the clearance between rollers and drive through triangle belt or multidirectional shaft coupling, and the four roller crusher will do it only through triangle belt. Double roller crusher has the characteristics of simple structure, compact, lightweight, reliable work,large broken capacity. ;

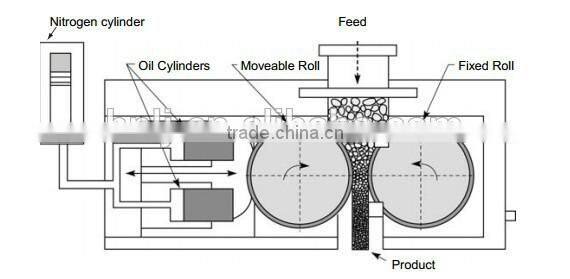

Double roller crusher Working Principle:
Through the feed opening, the raw materials fall to between the two rollers, after crushed, the final products drop naturally. When there are unbreakable materials or the material is too hard, the roller will concede automatically under the effects of spring and hydraulic pressure, which will widen the clearance between the rollers and make the hard or unbreakable so as to avoid damaging the machine. The clearance between the two rollers can be adjusted to change the sizes of final products.
Double roller crusher physical structure:
1.This series of double roll crusher is mainly consist of the roller , roller support bearing, pressure and regulation device and drives components.
2.Through the feed opening, the raw materials fall to between the two rollers, after crushed, the final products drop naturally. When there are unbreakable materials or the material is too hard, the roller will concede automatically under the effects of spring and hydraulic pressure, which will widen the clearance between the rollers and make the hard or unbreakable so as to avoid damaging the machine. The clearance between the two rollers can be adjusted to change the sizes of final products.
3.Double roller crusher can adjust the clearance between rollers and drive through triangle belt or multidirectional shaft coupling, and the four roller crusher will do it only through triangle belt.
4.For safety, the transmission part should according to the actual situation to install safety cover .
Double Roller Crusher Feature:
1. Compact structure, low noise and efficient;
2. Easy to install and only need simple foundation;
3. Can adjust the pressure and size easily.
4. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity;
Technical data:
Model | 2PG0425 | 2PG0640 | 2PG0740 | 2PG0850 | 2PG1060 | 2PG1260 | 2PG1560 |
Roller diameter(mm) | 400 | 610 | 700 | 800 | 1000 | 1200 | 1500 |
Roller width(mm) | 250 | 400 | 400 | 500 | 600 | 600 | 600 |
Input Size(mm) | ≤25 | ≤25 | ≤25 | ≤25 | ≤30 | ≤30 | ≤30 |
Discharging Gate(mm) | 2-8 | 2-8 | 2-8 | 2-8 | 2-10 | 2-10 | 2-10 |
Processing capacity(t/h) | 5-10 | 10-20 | 15-30 | 20-40 | 30-50 | 40-70 | 60-110 |
Power Models | Y132M-6 | Y180L-6 | Y200L-4 | Y225M-4 | Y250M-4 | Y315M-6 | Y315L-6 |
Motor power(kw) | 5.5×2 | 15×2 | 30×2 | 45×2 | 55×2 | 75×2 | 110×2 |
Total weight(t) | 2.2 | 5.9 | 9.8 | 13.5 | 17.2 | 28.5 | 39.3 |
Contact: Ms Sara
Mobile phone : 008613783471727
Skype: sarapang6
Website:
Contact Us
- Henan Lanji Machinery Manufacturing Co., Ltd.
- Contact nameVictor Cheng
- Phone0086-371-67833678
- AddressWest 4th ring road and hua gong road crossroads. 50m westward. High-Tech Development Zone ,Zhengzhou, China Zhengzhou,Henan
