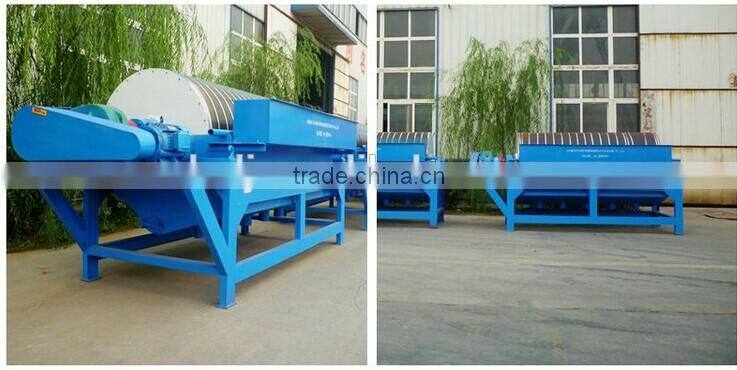

Large capacity Double Wet Drum Magnetic Separator for ore dressing
Permanent magnetic drum separator
CT Permanent magnetic drum separator surface magnetic field intensity is much more than the average permanent magnetic separators, easy for operation management and maintenance, in all kinds of mineral processing site using has remarkable energy saving performance. And LanJi CT permanent magnetic drum separator machine is suitable for the following magnetite, magnetic pyrite mine, baking, titanium iron ore material such as wet magnetic separation whose size is less-than 3 mm, also used in coal, non-metallic mining, building materials material and so on.
Permanent magnetic drum separator application:
CT Permanent magnetic drum separator surface magnetic field intensity is much more than the average permanent magnetic separators, easy for operation management and maintenance, in all kinds of mineral processing site using has remarkable energy saving performance. And LanJi CT permanent magnetic drum separator machine is suitable for the following magnetite, magnetic pyrite mine, baking, titanium iron ore material such as wet magnetic separation whose size is less-than 3 mm, also used in coal, non-metallic mining, building materials material and so on.
Permanent magnetic drum separator features :
CT Permanent magnetic drum separator,uses the high quality ferrite materials or with magnets compound and into, tube table average magnetic induction strength for 100 ~ 600 mT. According to customer needs, LanJi CT cavitation of permanent magnet magnetic separators magnetic separation cylinder can match three tub, that is, half a countercurrent slot (CTB), downstream slot (CTS) and reflux slot (CTN), in order to adapt to the different choose don't demand. So LanJi CT permanent magnet cylinder simple structure, magnetic separation machine has the large capacity per unit area, the operation is convenient and easy to maintenance.
Technical data :
Model |
Dia.*Length (mm) |
Magnetism (mT) |
Capacity(m3/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
CT12/30N |
1200×3000 |
200 |
360-350 |
19 |
7.5 |
6837 |
CT12/27N |
1200×2700 |
200 |
230-310 |
19 |
7.5 |
6750 |
CT12/24N |
1200×2400 |
200 |
200-275 |
19 |
7.5 |
6270 |
CT10.5/30N |
1050×3000 |
200 |
220-300 |
21 |
5.5 |
6900 |
CT10.5/27N |
1050×2700 |
200 |
190-270 |
21 |
5.5 |
6350 |
CT10.5/24N |
1050×2400 |
200 |
170-240 |
21 |
5.5 |
5760 |
CT10.5/21N |
1050×2100 |
200 |
150-210 |
21 |
5.5 |
5177 |
CT10.5/18N |
1050×1800 |
200 |
130-180 |
21 |
5.5 |
4560 |
