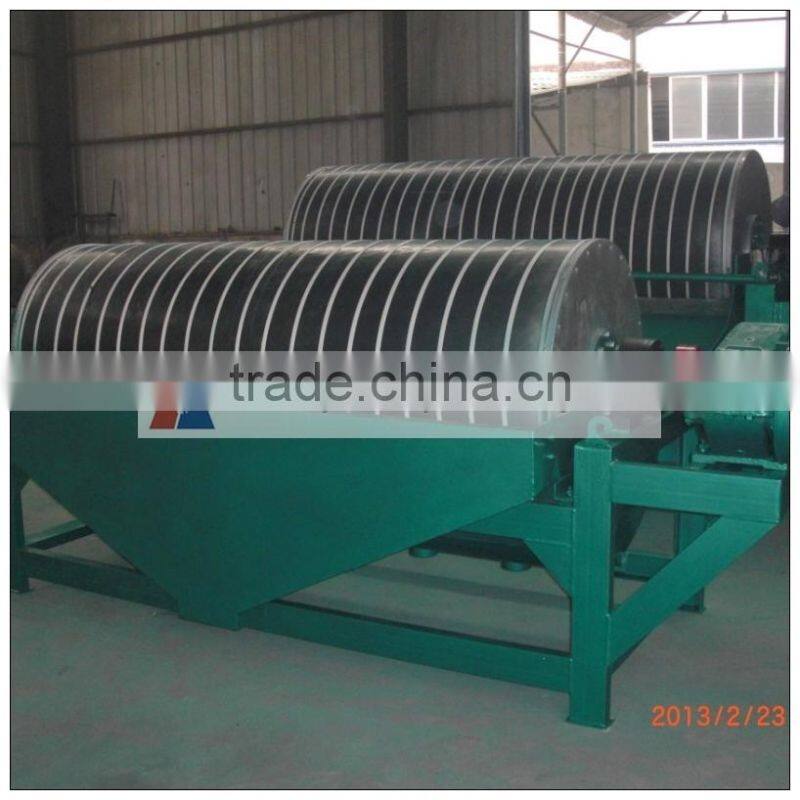

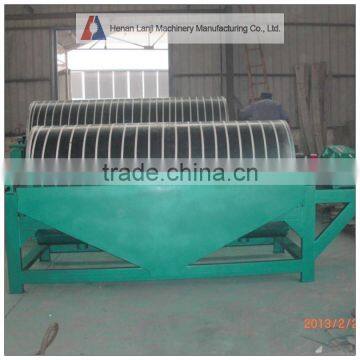

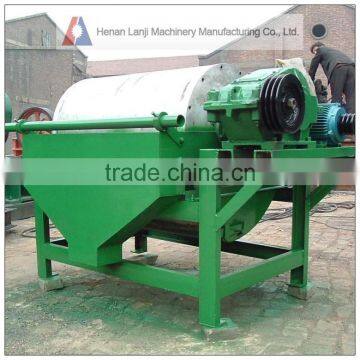

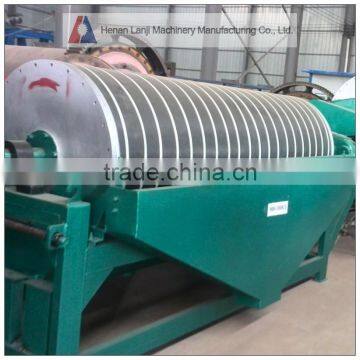

Competitive price wet drum magnetic separator with capacity 10-150 T/H
Application:
1. The magnetic separator is used for deironing materials like non-metal ores, coal and building materials. Average magnetic induction of barrel surface is 100-600mT.
2. According to customers demands, it can provide magnetic separation with different magnetic induction like forward flow, semi counter flow and counter
Magnetic Separator Features:
The magnetic system is a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.
Techncial specifications:
Model No. |
Specifications of magnetic drum (mm) |
Rotary speed of drum (r/min) |
Magnetic Filed intensity |
Feeding size (≤mm) |
Processing capacity (t/h) |
Motor power (kW) |
Weight (kg) |
|
Diameter |
Length |
|||||||
CTG-609 |
600 |
900 |
0~63 |
Determined according to mineral properties
|
7 |
5~10 |
5.5 |
1800 |
CTG-612 |
600 |
1200 |
0~63 |
7 |
10~15 |
5.5 |
2000 |
|
CTG-618 |
600 |
1800 |
0~63 |
7 |
15~20 |
7.5 |
2500 |
|
CTG-812 |
800 |
1200 |
0~63 |
7 |
20~25 |
7.5 |
3000 |
|
CTG-815 |
800 |
1500 |
0~63 |
7 |
30~35 |
11 |
3600 |
|
CTG-818 |
800 |
1800 |
0~63 |
7 |
40~45 |
11 |
4200 |
|
CTG-821 |
800 |
2100 |
0~63 |
10 |
60~65 |
11 |
4500 |
|
CTG-824 |
800 |
2400 |
0~63 |
10 |
80~85 |
11 |
4800 |
|
CTG-918 |
900 |
1800 |
0~50 |
10 |
90~110 |
11 |
4600 |
|
CTG-1030 |
1050 |
3000 |
0~50 |
12 |
115~150 |
11 |
6500 |
|
Thanks so much for you taking time to browse our Competitive price wet drum magnetic separator . Any further questions, please feel free to contact us and we are ready to so service for you!
