Low cost laboratory flotation cell for sale
laboratory flotation cell application:
Flotation machine (also called Flotation separator) is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc, Handling Materials: Quartz, gold, silver, copper and iron ore etc. non-ferrous metals, ferrous metals, coal, fluorite, talc, lead, zinc, molybdenum, aluminium ore and other metal ores. quartz stone, the flotable gold, silver, copper.

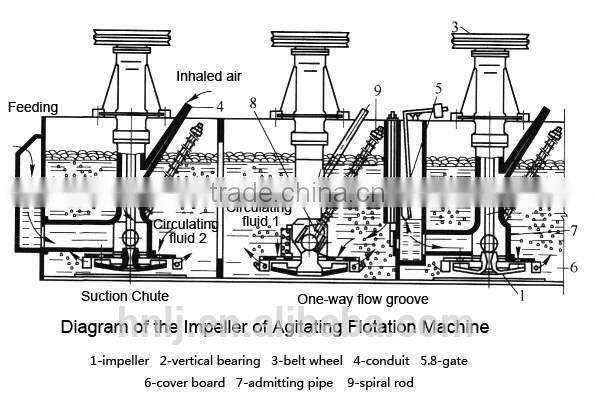

laboratory flotation cell structure:
laboratory flotation cell working principle:
When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air sent by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.
Model |
XJK-0.35(3A) |
XJK-0.62(4A) |
XJK-1.1(5A) |
XJK-2.8(6A) |
XJK-5.8(7A) |
||
Effective cubage(m3) |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
||
Production capacity(m3/min) |
0.18~0.4 |
0.3~0.9 |
0.6~1.6 |
1.5~3.5 |
3~7 |
||
Rotation speed(r/min) |
470 |
400 |
330 |
280 |
240 |
||
Blade diameter(mm) |
300 |
350 |
500 |
600 |
750 |
||
Motor |
Model |
Rotor |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6(Y225M-6) |
Scraping plate |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(kw) |
Blade Motor |
1.5 |
3 |
5.5 |
11 |
22(30) |
|
Scraping plate Motor |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Weight(t/single trough) |
0.43 |
0.86 |
1.38 |
2.33 |
3.533 |
||
