Seasand magnetic separator with competitive price :
seasand magnetic separator application
The dry magnetic separator can be used for the low grade iron ore,tailing enrichment work,reduce the ball mill energy consumption above 50%,is the river ,mining necessary equipment.
The magnetic intenstiy can be 3800-4500Gauss
1.Can be used for weakly magnetic beneficiation of minerals such as Hematite,limonite, manganese carbonate, manganese oxide minerals, wolframite,niobium tantalum and other.
2.Non-metallic minerals and purification of iron removal, such asquartz, feldspar, nepheline, fluorite, sillimanite, kaolin, etc.
3. Limonite dry separator, using super magnetic roller design. Applying to the separation of weak magnetic minerals, such as, limonite and manganese ore separation after 10 to 30 grade can be improved.
seasand magnetic separator brief introduction:

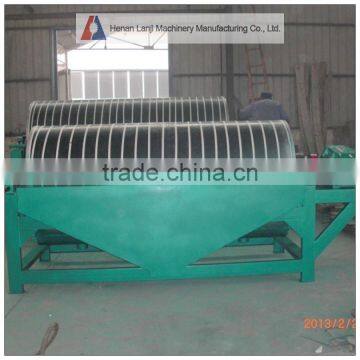

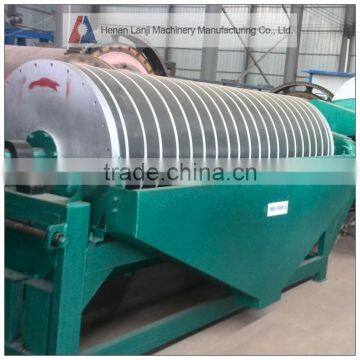

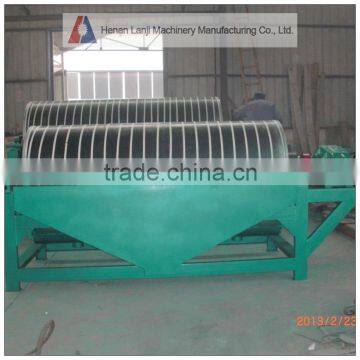

dry magnetic drum separator is simple in structure, strong rigidity, suitable forefficient production in a more hostile environment. The machine is easy to operate and maintenance intuitive and dressing adequately,concentrate grade of high.
1. Magnetic induction strength of Magnetic roller is as high as 12000 GS, the highest reaches14000 GS.
2. High sorting efficiency: Generally, Sorting poor manganese can improve metal grade 10 degree above, sorting poor limonite, poor hematite Improve metal grade 8 above.
3. Our company provide users with a complete set of magnetic separation production equipment, adjust equipment,train operator and maintainer for the users. Ensure the normal operation of production line.
seasand magnetic separator main technical parameters:
Model | 7518 | 9018 | 1018 | 1021 | 1024 | 1230 | 1530 |
Drum specification | 750×1800 | 900×1800 | 1050×1800 | 1050×2100 | 1050×2400 | 1200×3000 | 1500×3000 |
Producton capacity(t/h) | 40~50 | 45~55 | 100~120 | 125~145 | 130-180 | 150-220 | 170-250 |
Feeding size(mm) | 0~8 | 0~8 | 0~8 | 0~10 | 0~10 | 0-10 | 0-10 |
Motor power(KW) | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 11 |
Raw ore water content(%) | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
Drum rotaryspeed(r/min) | 34 | 30 | 24.5 | 24.5 | 24.5 | 21 | 18 |
Magnetic field strength(oe) | 2000~8000 | 2000~8000 | 2000~8000 | 2000~8000 | 2000~8000 | 2000~8000 | 2000~8000 |
