Wet drum magnetic separator with capacity 100t/h
Wet drum magnetic separator application:
suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries. The magnetic system is made from high quality ferrite magnetic materials and /or rare earth magnet steel. On the shell surface, the magnet intensity is 100-600mt. The wet type permanent magnet cylindrical separator is commonly used for iron ore separation. It is suitable for separating materials with high magnetism. In recent years, it has been used as concentrating equipment in place of magnetic dewatering cell. wet drum magnetic separator is widely used for the magnetite ore beneficiation plant.
Wet drum magnetic separator features:
Wet Magnetic Drum Separator Advantages:
1. short magnetic circuit
2.little magnetic flux leakage
3.high magnetic intensity
4.low energy consumption
5.fine beneficiating results
6.simple structure
7.easy to maintain.

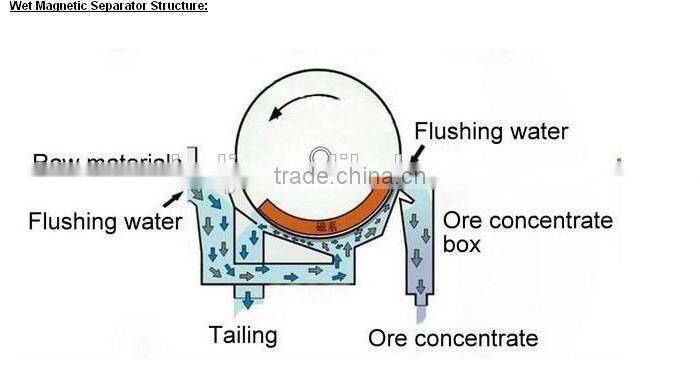

Wet drum magnetic separator structure drawing:
Wet drum magnetic separator main technical parameters:
Model | Shell Diameter(mm) | Shell Length(mm) | Feeding Size(mm) | Processing Capacity(t/h) | Power(kw) | Weight(T) |
CTB612 | 600 | 1200 | 2-0 | 10-20 | 1.1 | 1.5 |
CTB618 | 600 | 1800 | 2-0 | 15-30 | 2.2 | 1.8 |
CTB718 | 750 | 1800 | 2-0 | 25-45 | 3.0 | 2.2 |
CTB918 | 900 | 1800 | 3-0 | 35-70 | 4.0 | 2.8 |
CTB1018 | 1050 | 1800 | 3-0 | 40-75 | 5.5 | 4.3 |
CTB1024 | 1050 | 2400 | 3-0 | 52-100 | 5.5 | 5.2 |
CTB1218 | 1200 | 1800 | 3-0 | 47-90 | 5.5 | 5.0 |
CTB1224 | 1200 | 2400 | 3-0 | 80-120 | 7.5 | 6.4 |
