Hydrocyclone:
1,simple structure, convenient installation and operation
2,widely used, good wear-resistance, long service life and high efficiency
3,strong disposal ability, low operation cost and high classification precision
Hydrocyclone separator for gold ore process with reasonable price :
Hydrocyclone separator developed with an advanced international level. The liners of hydrocyclone unitare made of iabrasion resistant rubber. In addition, abrasion resistant rubber is also used in the inner box and pipelines to extend the service life. The valve operate well without resistance. And a small size of valve reduces the diameter of the cyclone unit.
Features of hydrocyclone separator:
1. hydrocyclone unit has strong processing capacity and high classification efficiency.
2. hydrocyclone unit is equipped with a computational selection software to better simulate the operation and ensure the relevant parameters. Finally, the optimal model will be chosen for customers.

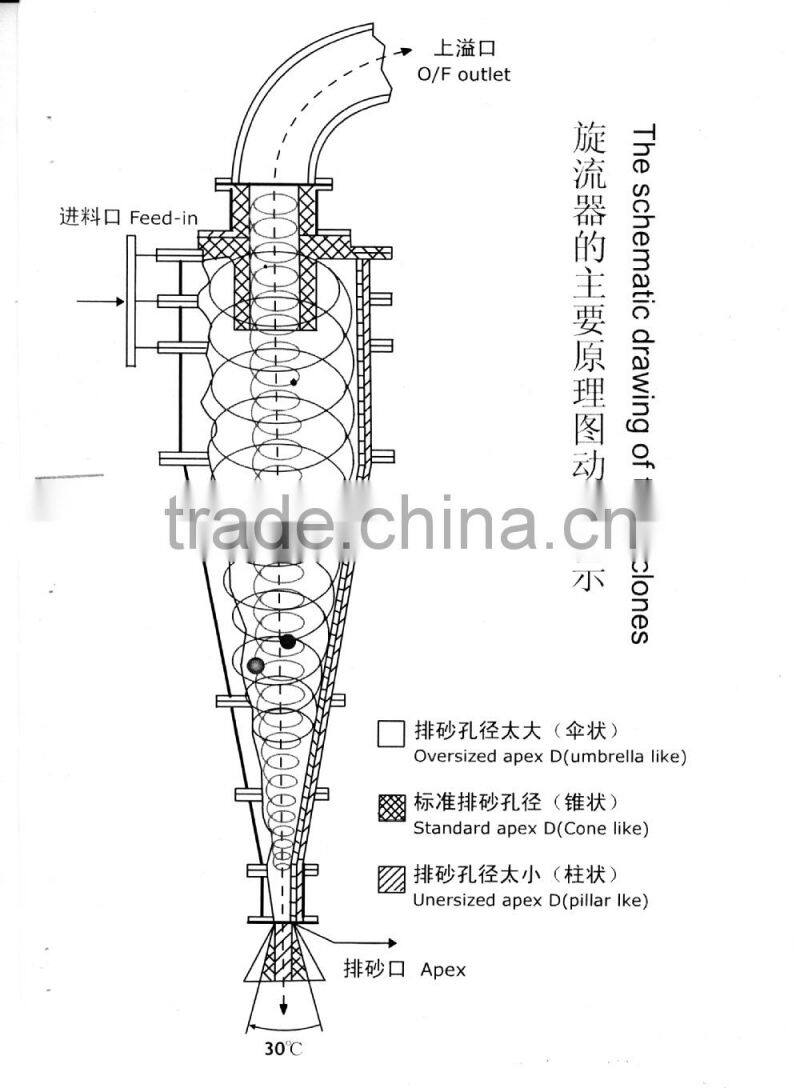

Working Principle of hydrocyclone separator:
hydrocyclone unit is used for classification with the centrifugal sedimentation as its working principle. When the two-phase or three-phase mixed with liquor is fed into hydrocyclone through feeding opening, the mixture does three-dimensional and oval and strong rotating and tangent cyclone motion. Considering differences of density between fine and coarse ores, coarse ores spirally rotate to be discharged from the underflow outlet, while the majority of fine particles are up to be discharged from overflow outlet. the hydrocyclone separator working with the ball mill to form closed circuit for efficient grading work.
