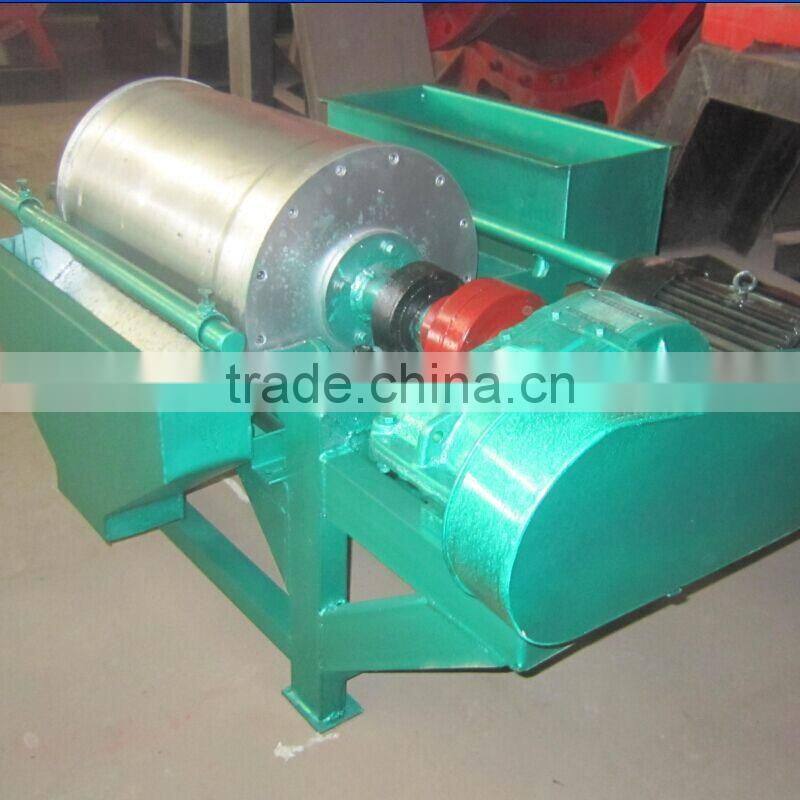

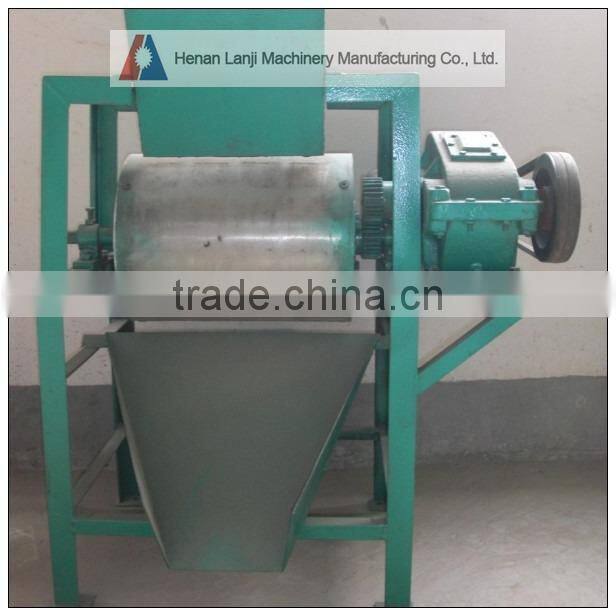

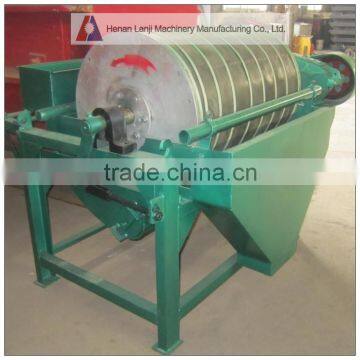

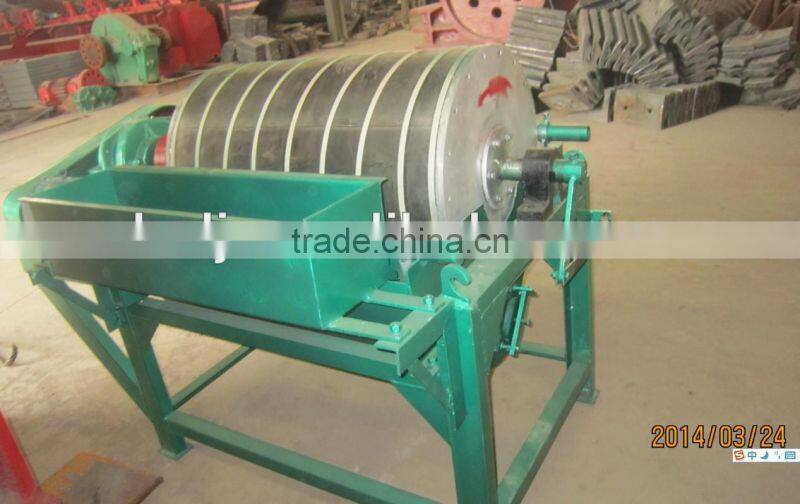

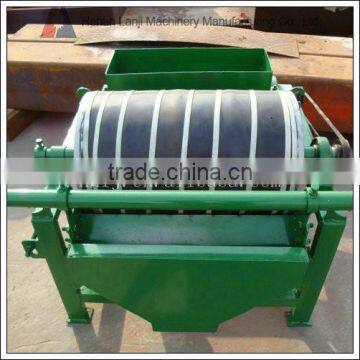

Help CenterReliable Quality Iron Ore Mini Magnetic Separating Machine for Sale
Related Products
-
High Performance Gravity Spiral Chute for Placer Gold OreUS$ 200 - 400MOQ: 1 Set -
High Performance Gravity Chute for Alluvial GoldUS$ 200 - 400MOQ: 1 Set
-
Mineral Ore Mixing Agitation Tank for Flotation ProcessUS$ 1,200 - 9,000MOQ: 1 Set
-
Spiral Classifier for Mineral Ore Classifying Wet ProcessUS$ 2,000 - 80,000MOQ: 1 Set
-
Riversand Magnetic Separator With Competitive Price Dry Type and Wet TypeUS$ 6,600 - 60,000MOQ: 1 Set
This magnetic separator can separate raw materials with different magnetic rigidities. The machine works by using magnetic force and the machine force. Are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications.
2. Application of Magnetic Separator
Our Wet Magnetic Separator is most useful for wet mineral separation of such materials as magnetite, pyrrhotine, roasted ore and ilmenite, etc. And it is also applicable for iron removal working of such materials as coal, nonmetal and building materials, etc.
3. Magnetic Separator Features:
The magnetic system is a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.
Thanks so much for you taking time to browse our small magnetic separator. Any further questions, please feel free to contact us and we are ready to so service for you!
Fast contact ways:
1. Mobile phone: 0086-13613714234
2. Telephone: 0086-371-67833678
3. Skype: gaoyan906820
4. Contact name: Nancy Gao
4. Techncial specifications:
Model No. | Specifications of magnetic drum (mm) | Rotary speed of drum (r/min) | Magnetic Filed intensity | Feeding size (≤mm) | Processing capacity (t/h) | Motor power (kW) | Weight (kg) | |
Diameter | Length | |||||||
CTG-609 | 600 | 900 | 0~63 | Determined according to mineral properties
| 7 | 5~10 | 5.5 | 1800 |
CTG-612 | 600 | 1200 | 0~63 | 7 | 10~15 | 5.5 | 2000 | |
CTG-618 | 600 | 1800 | 0~63 | 7 | 15~20 | 7.5 | 2500 | |
CTG-812 | 800 | 1200 | 0~63 | 7 | 20~25 | 7.5 | 3000 | |
CTG-815 | 800 | 1500 | 0~63 | 7 | 30~35 | 11 | 3600 | |
CTG-818 | 800 | 1800 | 0~63 | 7 | 40~45 | 11 | 4200 | |
CTG-821 | 800 | 2100 | 0~63 | 10 | 60~65 | 11 | 4500 | |
CTG-824 | 800 | 2400 | 0~63 | 10 | 80~85 | 11 | 4800 | |
CTG-918 | 900 | 1800 | 0~50 | 10 | 90~110 | 11 | 4600 | |
CTG-1030 | 1050 | 3000 | 0~50 | 12 | 115~150 | 11 | 6500 | |
Small size small magnetic separator can be packed by standard export wooden case. Medium size can be packed by common container. Larger size will be shipped in bulk.
We can send engineers to guide installation and train workers till the machine can work normally.
1. Please tell us your main raw material for processing?
2. Please tell us the input size?
3. Please tell us the processing capacity you need?
4. Please tell us is your or Fe3O4 or Fe2O3?
