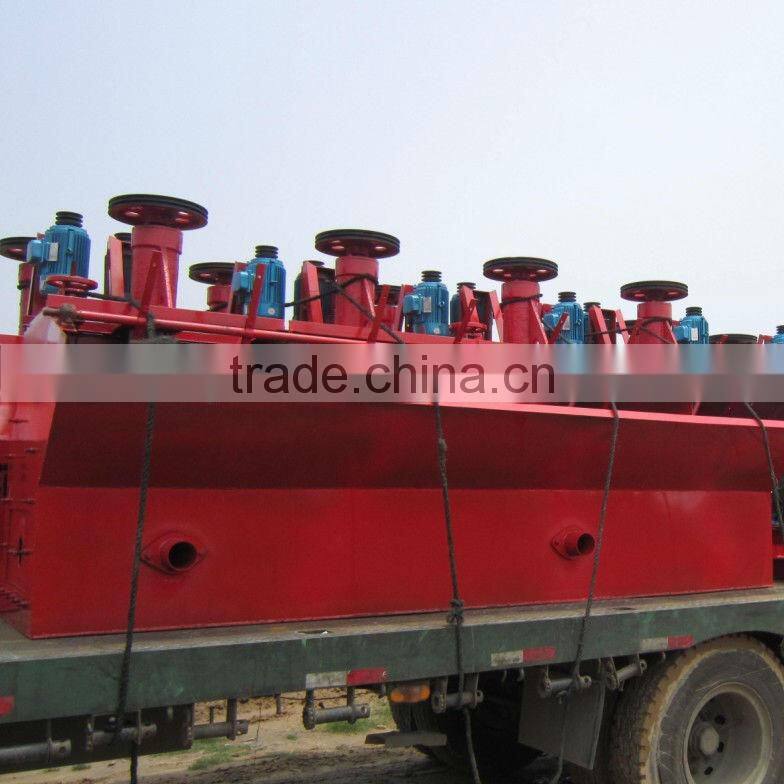

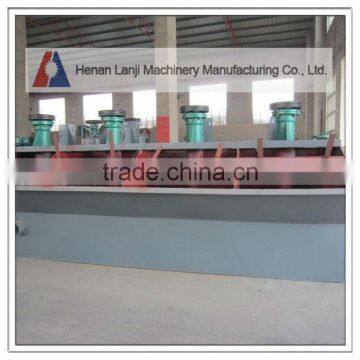

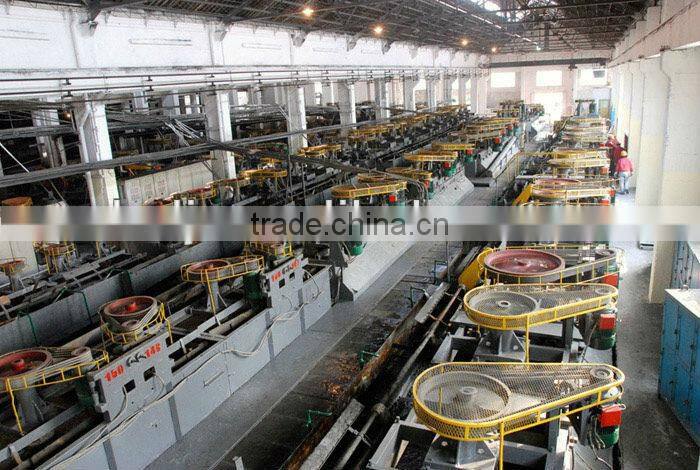

Help CenterReliable Quality Induced Gas Flotation Machine for Sale
Related Products
-
Reliable Quality Dissolved Air Flotation Machine for SaleUS$ 1,100 - 30,000MOQ: 1 Set -
Reliable Quality Froth Flotation Machine With ISO QualityUS$ 1,100 - 30,000MOQ: 1 Set
-
Reliable Quality Air Flotation Machine for SaleUS$ 1,100 - 30,000MOQ: 1 Set
-
Permanent Magnet Pulleys for Belt ConveyorUS$ 6,600 - 60,000MOQ: 1 Set
-
High Intensity Magnetic Head Pulleys for Belt ConveyorUS$ 6,600 - 60,000MOQ: 1 Set

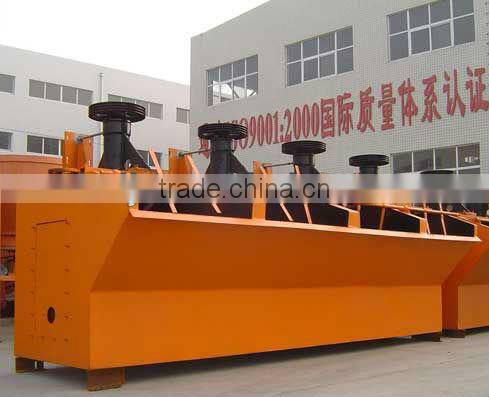

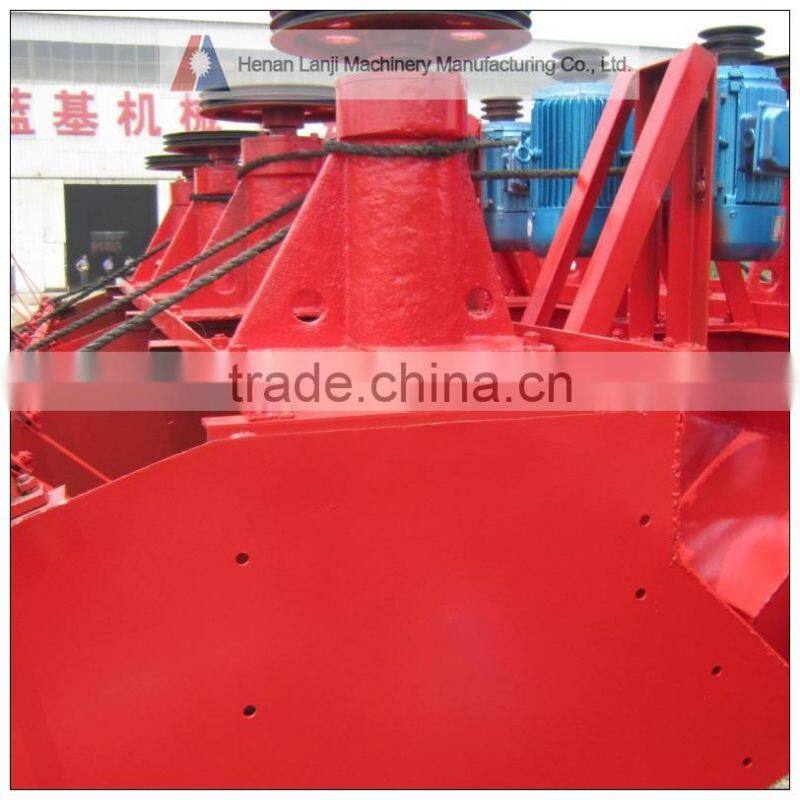

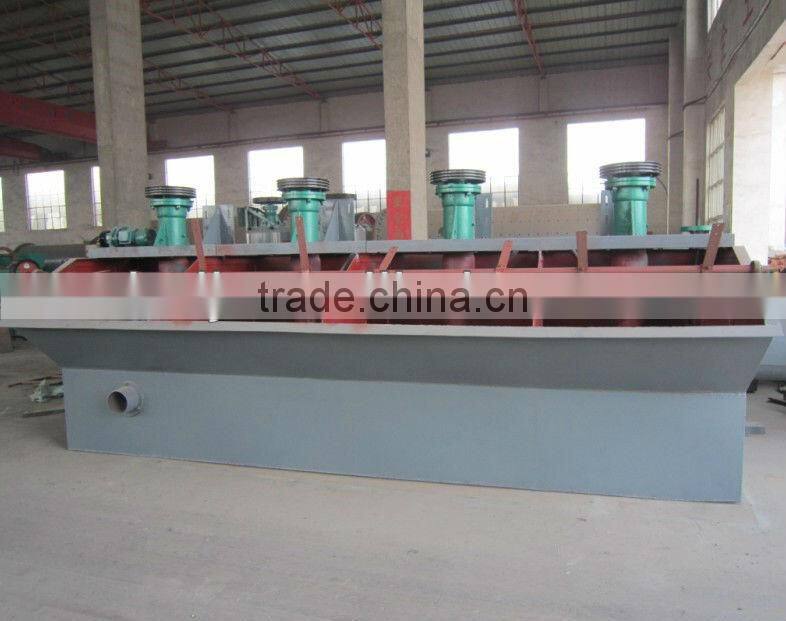

2. The main features of SF Flotation Machine:
Compared to ordinary flotator, the SF Flotation Machine has the following advantages:
(1)Improve quality grade up to 4-6%
(2)Improve the recovery rate up to 8%
(3)Improve yield up to 12%
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 | |
Trough capacity(m²) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 | |
Blade diameter(mm) | 300 | 350 | 450 | 550 | 650 | 760 | |
Production capacity(m²/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 | |
Blade rotation speed(r/min) | 352 | 400 | 312 | 268 | 238 | 191 | |
Motor | Model | Y90L-4 | Y100L-4 | Y132M-6 | Y160L-6 | Y180L-6 | Y250M-8 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | Y100L-6 | ||
Power(kw) | 1.5 | 3 | 5.5 | 11 | 15 | 30 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | ||
Dimension(mm) | 700×700×750 | 900×820×950 | 1100×1100×1100 | 1700×1600×1150 | 1850×2050×1200 | 2200×2900×1400 | |
Single trough weight | 468 | 600 | 1373 | 2338 | 2660 | 4130 | |
It can be packed by 20 or 40 feet container; wooden case package for motors and spare parts.
We can send engineers for guiding installation.
Thanks so much for you taking time to browse our copper ore flotation machine. Any further questions, please feel free to contact us and we are ready to so service for you!
