Reliable Quality Gold Flotation Machine From China Supplier
US$ 1,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Flotation Separator
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao.shanghai.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Reliable Quality sf Flotation Machine for SaleUS$ 1,100 - 30,000MOQ: 1 Set -
Reliable Quality Sand Flotation Machine for SaleUS$ 1,100 - 30,000MOQ: 1 Set
-
Reliable Quality Induced Gas Flotation Machine for SaleUS$ 1,100 - 30,000MOQ: 1 Set
-
Reliable Quality Dissolved Air Flotation Machine for SaleUS$ 1,100 - 30,000MOQ: 1 Set
-
Reliable Quality Froth Flotation Machine With ISO QualityUS$ 1,100 - 30,000MOQ: 1 Set
Condition
New
Type
Flotation Separator
Place of Origin
Henan, China
Brand Name
LanJi
Model Number
flotation separator
Weight
468KG
Warranty
1year

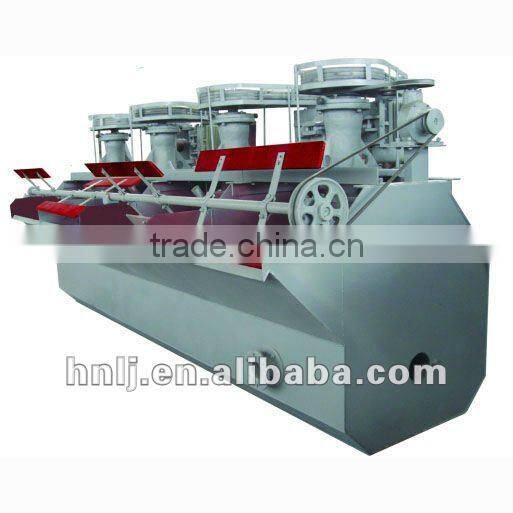

Reliable quality Gold Flotation Machine from china supplier:
1. Application of SF Flotation Machine:
SF Flotation Machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
2. The main features of SF Flotation Machine:
Compared to ordinary flotator, the SF Flotation Machine has the following advantages:
(1)Improve quality grade up to 4-6%
(2)Improve the recovery rate up to 8%
(3)Improve yield up to 12%
3. Main technical parameters for SF flotation machine:
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
Trough capacity(m²) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Blade diameter(mm) |
300 |
350 |
450 |
550 |
650 |
760 |
|
Production capacity(m²/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Blade rotation speed(r/min) |
352 |
400 |
312 |
268 |
238 |
191 |
|
Motor |
Model |
Y90L-4 |
Y100L-4 |
Y132M-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
||
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
||
Dimension(mm) |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
2200×2900×1400 |
|
Single trough weight |
468 |
600 |
1373 |
2338 |
2660 |
4130 |
|
