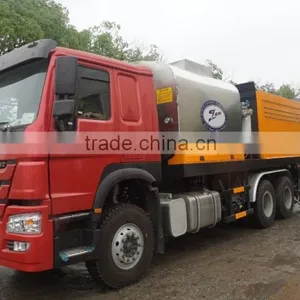

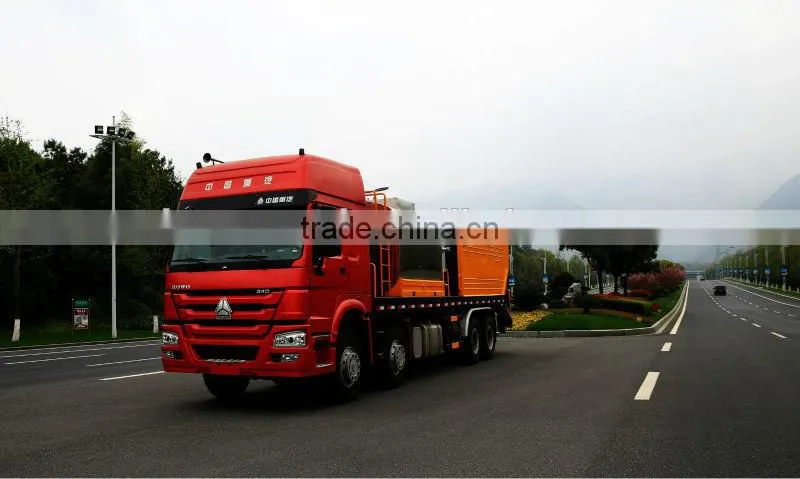

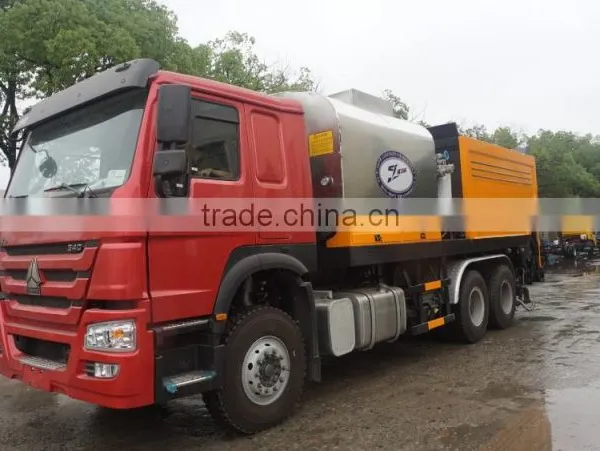

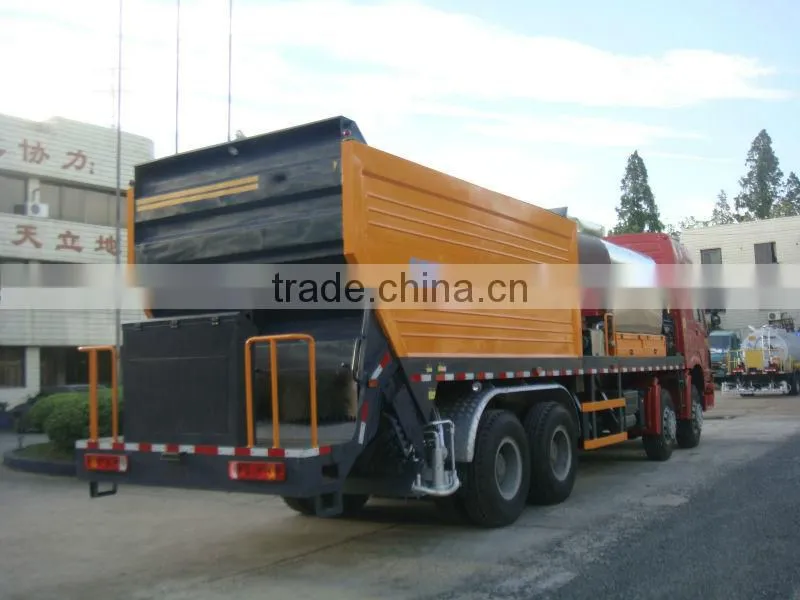

Howo ZQZ5311TFC China best Synchronous Chip Sealer for sale
Advantages and characterstics( ZQZ5311TFC Synchronous Chip Sealer)
1,Patent “Cuniform” shape stainless steel nozzles assemble can achieve high spray finishing.
2,Stainless steel nozzles are higher anti-abrasion performance than copper nozzles.
3,The use of stainless steel laminar flow theory combination of nozzle design, the smooth asphalt spray fan bifurcation is not easy to reduce asphalt consumption.
4,Innovative oil heating systems to heat-conducting oil heating up faster, especially to heat bitumen pump when using emulsion bitumen.
5,Designed by early shunt method of gravel fabric chute can perform more uniform spreading gravel.
6,Adopt fixed aggregate bin + Movable aggregate bin can increase the capacity of loading aggregate.
7,Asphalt mixing gate is reserved for installation of shaft for easy synchronization converted into rubber asphalt spreaders.
8,Through the precise control of electrical and hydraulic pressure to achieve scratch spray
9,The control system user-friendly interface designed to make operation convenient and friendly.
Parameters&Specification( ZQZ5311TFC Synchronous Chip Sealer)
Mass parameter: | ||||||
Kerb Weight(kg) |
21200 |
Total Weight(kg) |
31000 |
|||
Rated loading Weight(kg) |
9670 |
Dimension(mm) |
12000×2500 ×3730 |
|||
Chassis Parameter: | ||||||
Chassis Model |
ZZ1317N4647C |
Tyre model |
12.00-20,12.00R20 |
|||
Wheelbase (mm) |
1800+4600+1350 |
Tread mm |
2022/1830 |
|||
Engine parameter: | ||||||
Engine model |
WD615.95 |
Manufacturer |
China Heavy Duty Truck Group Co., Ltd. |
|||
Max.Power(kw) |
247 |
Max. Torque(N.m) |
1300/1600 |
|||
Fuel |
Diesel |
Displacement(ml) |
9726 |
|||
Chip sealer specification: | ||||||
Tank Capacity(m³) |
8 |
Spray width |
3800mm |
|||
Hydraulic pump model |
CBQL-E563 |
Spray Value |
0.5-3.0(Kg) |
|||
Hydraulic motoe |
L2F63W2P2(Liyuan) |
Insulation Thickness |
50mm |
|||
Controller |
ZM-3D |
Nozzles |
32 |
|||
Generator(Converter) |
YT6800T |
Burner |
G20(Riello) |
|||
Asphalt pump |
QGB450(Shanggui) |
Chipping capacity(m³) |
10m3 |
|||
|
|
|
|
|||
All parts( ZQZ5311TFC Synchronous Chip Sealer)
Working condition ( ZQZ5311TFC Synchronous Chip Sealer )
About the factory ( ZQZ5311TFC Synchronous Chip Sealer )
Generally, the Synchronous Chip Sealer are shipped in bulk
The extremely considerate and sincerely service would be provided to our customers immediately inICOM ZQZ5311TFC Synchronous Chip Sealer once the clients have made the order. This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support
Hang zhou ICOM Construction Machinery Co., Ltd is located in Hangzhou, it was the branch company of CHINA NATIONAL COMMERCIAL AUTOMOBILE CO.,LTD(CACAC), The CNCAC passed the ISO9001:2008international quality system certification and products 3C authentication, the products cover asphalt distributor, synchronous chip sealer, bitumen equipment, chipping spreader.
Certificate( ZQZ5311TFC Synchronous Chip Sealer)
Q2: What are the terms of payment.
A:Generally, L/C orT/T are used. that is 30% prepayent and 70% before shipping.
Q3: What about the warranty.
A;It would be for 2 years.
