Intelligent Asphalt Distributor from China
- 0 per Month
- Caterpillar 439-5037 4395037 Fuel Water Separator Filter CAT EC200D EC170C/D Excavator
- SHANTUI JANEOO Sand making building ZSG120-5T
- Main technical parameters of 30m concrete pump truck
- 207 Engine Hydraulic Filter HF6710 AT58368 86542664
- 1 Ton Garden Excavator For Sale
- XY-2 Water Well Drilling Rig for Exploration and Core Drilling
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | IKOM | Model Number: | ZQZ5253GLQ |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Intelligent Asphalt Distributor
ZQZ5253GLQ Intelligent Asphalt Distributor is the only asphalt distributor using the new generation of Dongfeng Kinland bearing chassis for heavy truck of Dongfeng Motor Co., Ltd. It integrates the advanced technology of the current asphalt distributor, and in the development process realizes a lot of independent innovation, so that compared to similar products system and performance are improved, especially in technology, safety, economy, reliability, comfort, etc.

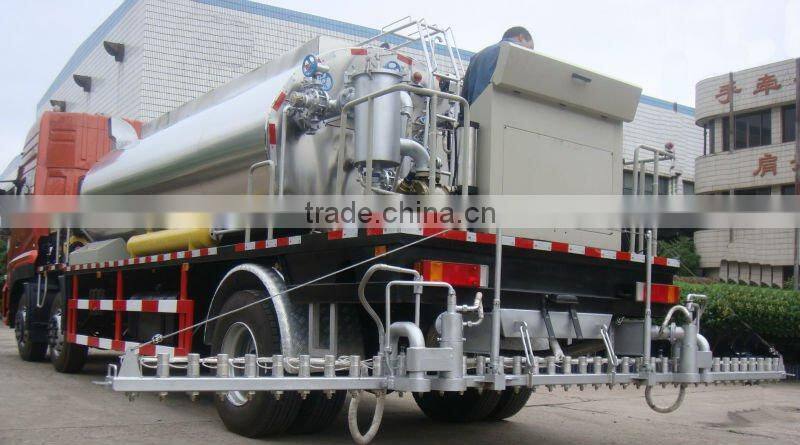

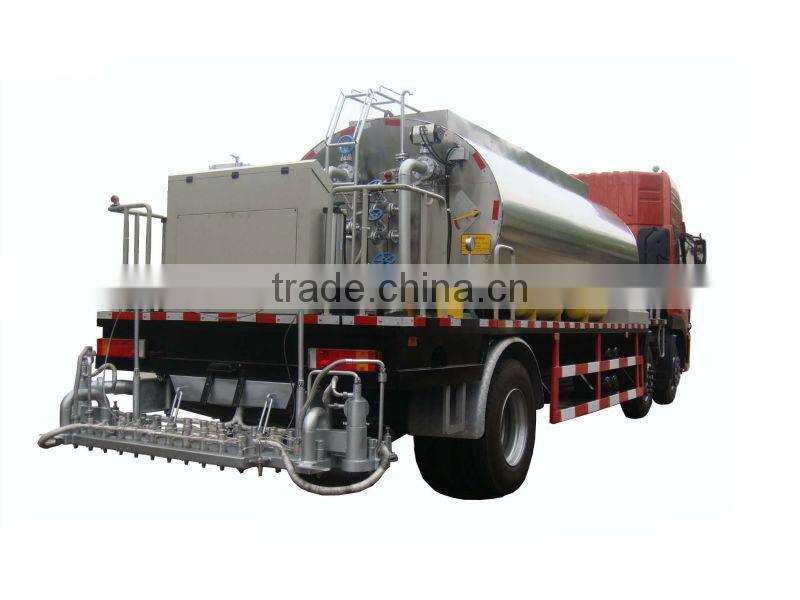

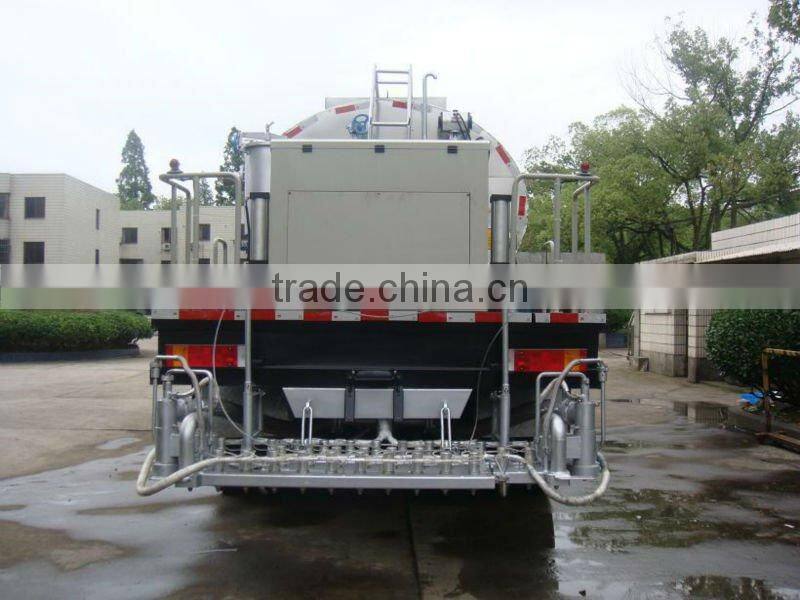

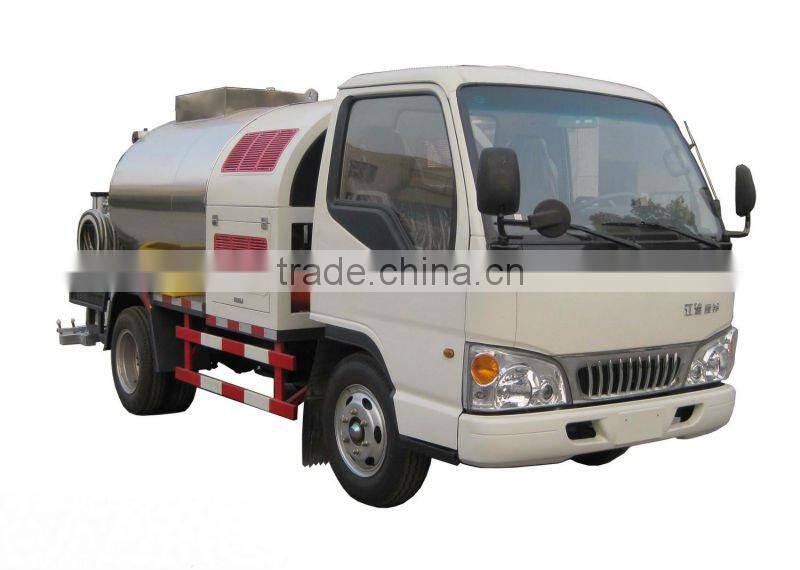

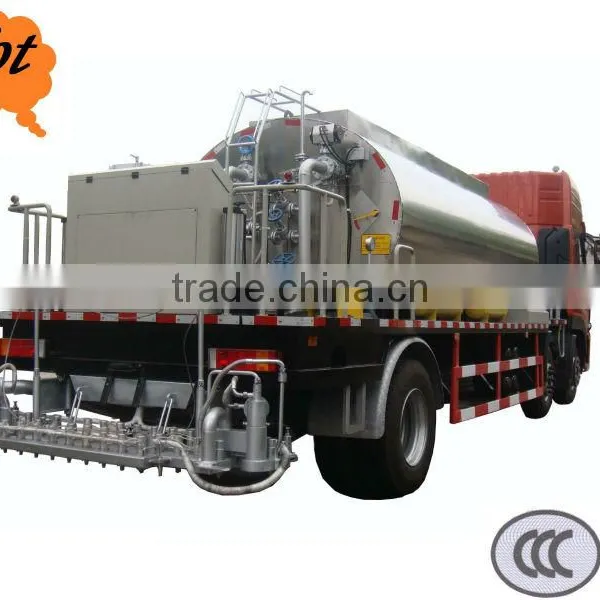

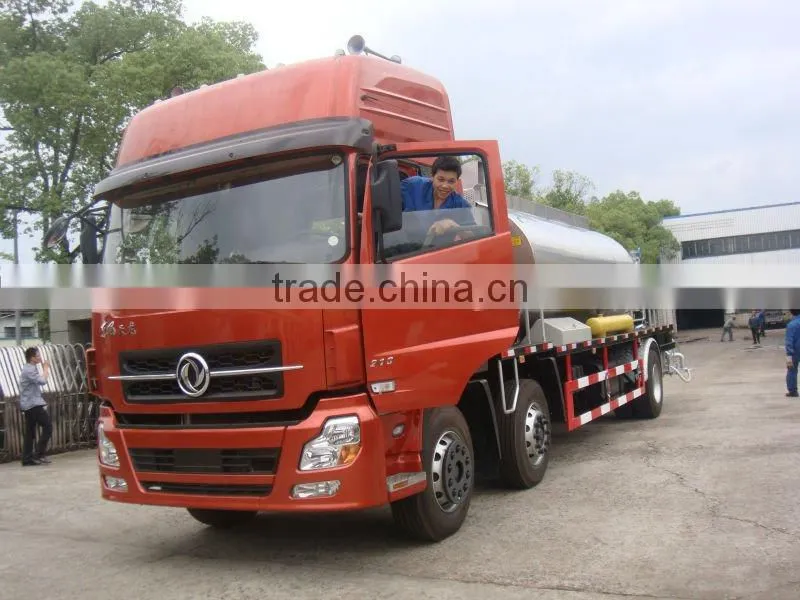

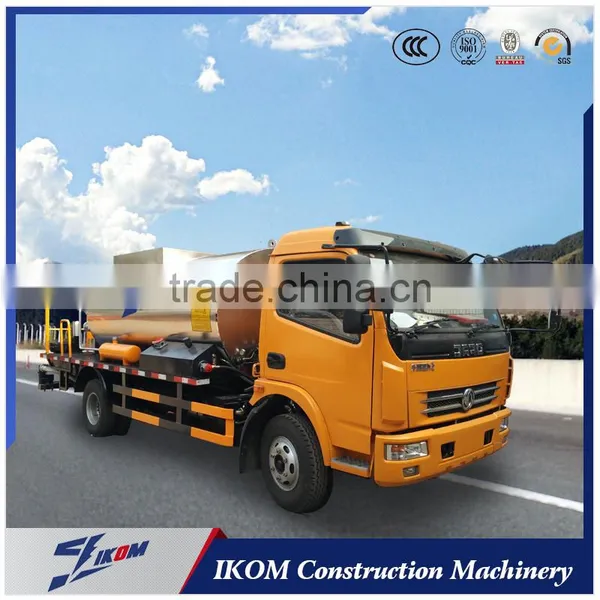

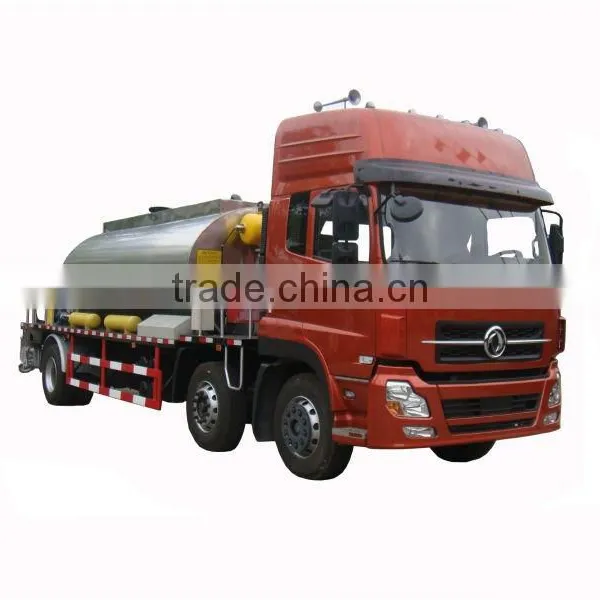

Pictures Of Intelligent Asphalt Distributor
Parameter Of Intelligent Asphalt Distributor
Mass parameter: | |||||
Kerb Weight(kg) | 13800 | Total Weight(kg) | 25000 | ||
Rated loading Weight(kg) | 11070 | Dimension(mm) | 11260×2490 ×3690 | ||
Chassis Parameter: | |||||
Chassis Model | DFL1253AXA | Tyre model | 10.00-20,10.00R20 | ||
Wheelbase (mm) | 1950+5350 | Tread mm | 1913/1913/1860 | ||
Front Overhang(mm) | 1460 | Rear Overhang(mm) | 2500 | ||
Approach angle/Departure angle | 30°/14° | Min. Ground Clearance (mm) | 250 | ||
Engine parameter: | |||||
Engine model | B210 33 | Manufacturer | Dongfeng Cummins Engine Co., LTD | ||
Max. Power(kw) | 155 | Max. Torque(N/m) | 550/1300-1800 | ||
Displacement(ml) | 5900 | Fuel | Diesel | ||
Spray specification: | |||||
Tank Capacity(m³) | 12 | Spray width | 6000mm | ||
Hydraulic pump model | CBQ-F563FPL | Spray Value | 0.5-3.0(Kg) | ||
Hydraulic motor | L2F107W2P2 (Liyuan) | Insulation Thickness | 50mm | ||
Controller | ZM-3D | Nozzles | 39 | ||
Burner | G20(Riello) | Asphalt pump | QGB950(Shanggui) | ||
Generator(Converter) | YT6800E |
|
| ||
Other parameter: | |||||
Max. truck speed(km/h) | 90 | Max. Grade ability | >23% | ||
Spring films(Front/Rear) | 11/10 | Minimum turning diameter (m) | 24 | ||
Axis No. | 3(6*2) |
|

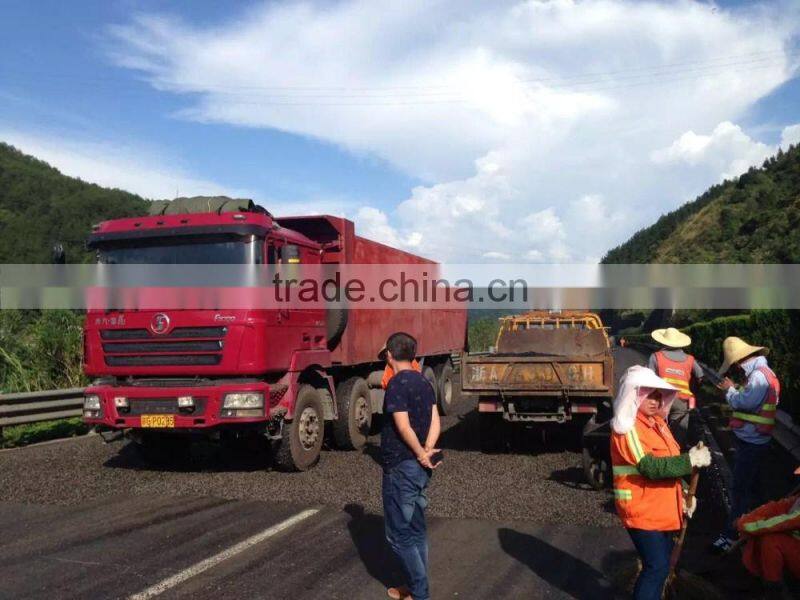

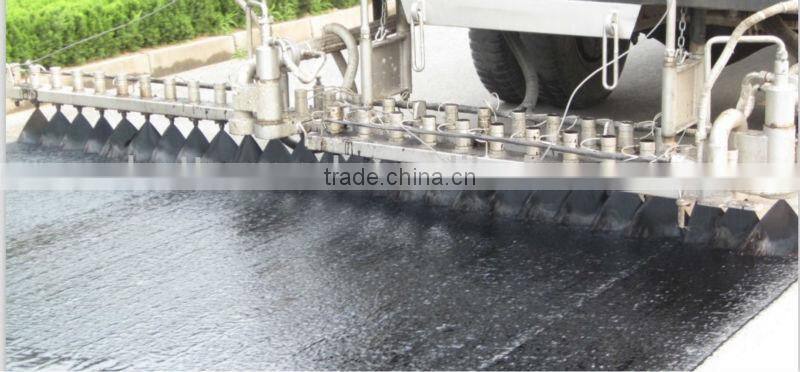

Pictures Of Construction
Information Of Company
Hangzhou IKOM Construction Machinery Co., Ltd is a professional manufacture of road construction machinery in china. Management team with many years of experience in the design and manufacture of construction equipment and trained world renowned equipment manufacturing experts at home and abroad a number of important new technology road works promotion of new equipment , get a good project results. Especially developed to optimize applications with industry-leading levels of construction equipment and asphalt in the asphalt performance .My company has a system integration technology road construction equipment, to meet the equipment requirements of the whole process . Management team has a strict work style and good business philosophy of cooperation between the parties work together to provide integrated services industry demeanor , higher precision , specialized in the development of the road .
Best Services Just For You
The extremely considerate and sincerely service would be provided to our customers immediately in CNCAC once made the order. This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support
4. we can supply installation, commissioning, training etc
5. welcome to visit our factory at any time any where!
The Information You May Like To Know Before Order
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2.MOQ:
No requirement for testing and trial order
3. Handling time for an order
Within 10 days supplied from stock
4. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air Bulk order: we suggest by air or by sea.
5. Quality Control
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
6. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded) b. Technical Support will be available in any time c. Free replacement will provide once the failure confirmed caused by our product quality.
