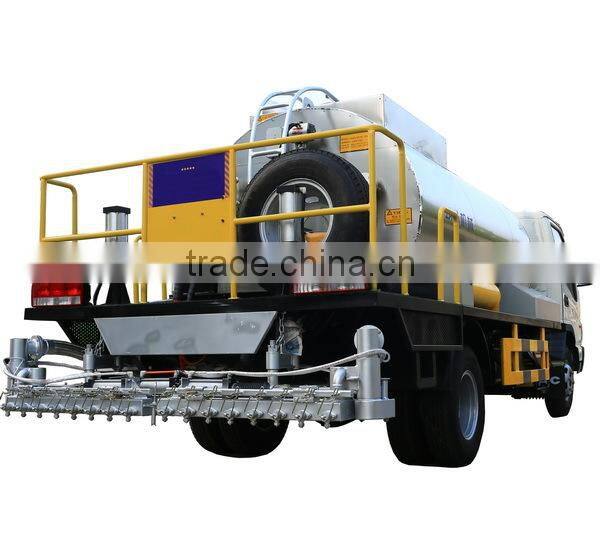

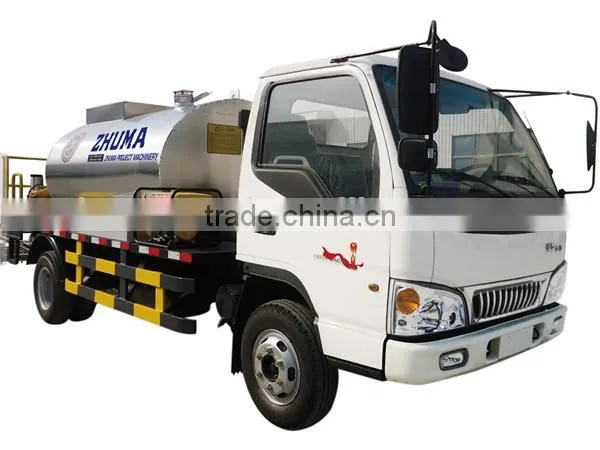

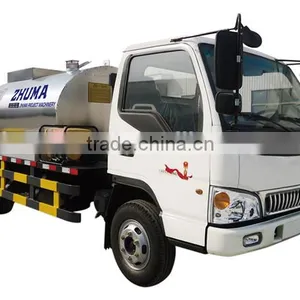

ASPHALT DISTRIBUTOR
Name | Asphalt Distributor | Model | ZQZ5091GLQ | ||||||
| |||||||||
Mass parameter: | |||||||||
Kerb Weight(kg) | 5700 | Total Weight(kg) | 9400 | ||||||
Rated loading Weight(kg) | 3505 | Dimension(mm) | 7100×2250×2650 | ||||||
Chassis Parameter: | |||||||||
Chassis Model | HFC1091P81K2C5 | Tyre Model | 7.50-16 | ||||||
Wheelbase (mm) | 3815 | Tread mm | 1831/1640 | ||||||
Front Overhang(mm) | 1180 | Rear Overhang(mm) | 2465 | ||||||
Approach angle,Departure angle | 22°/11.2° | Minimum Ground Clearance (mm) | 170 | ||||||
Engine parameter: | |||||||||
Engine model | ISF3.8s4141 | Manufacturer | Beijing Foton Cummins Engine Co., Ltd. | ||||||
Max.Power(kw) | 105/2800 | Max. Torque(N.m) | / | ||||||
Fuel | Diesel | Displacement(ml) | 3856 | ||||||
Spray specification: | |||||||||
Tank Capacity(L) | 5000 | Spray width | 4500mm | ||||||
Hydraulic pump model | CBQ-F540 | Spray Value | 0.5-3.0(Kg) | ||||||
Hydraulic motor | L2F63W2P2 (Liyuan Brand) | Insulation Thickness | 50mm | ||||||
Controller | / | Nozzles | 39 | ||||||
Burner | G20(Riello) | Asphalt pump | CB450 | ||||||
Generator(Converter) | YGBT2500 |
|
| ||||||
Other parameter: | |||||||||
Max. truck speed(km/h) | 95 | Max. Grade ability | >23% | ||||||
Spring films(Front/Rear) | 8/10+7 | Minimum turning diameter (m) | 17 | ||||||
|
| Axis No. | 2(4*2) | ||||||
Hangzhou ICOM construction Machinery Co., Ltd. is a professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment . Based on innovation and expertise, we have received more than 10 patents, selling more than 20 countries and regions.Focus cast quality, intentions to win the trust. We will offer innovative, professional, practical asphalt machinery and equipment with the spirit of craftsman.
