Low Price Asphalt Distributor Truck China Manufacturer

Low Price Asphalt Distributor Truck China Manufacturer thumbnail-1
Low Price Asphalt Distributor Truck China Manufacturer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Paving Width:
6000mm
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Hangzhou IKOM Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Paving Width 6000mm
Place of Origin Zhejiang, China
Brand Name CNCAC(Asphalt Spraying car)
Model Number ZQ5253GLQ(Asphalt Spraying car)
Dimension(L*W*H) 11260*2490*3690mm
Weight 25000KG
Certification CE, CCC, ISO9001:2000
Warranty 12months
After-sales Service Provided Overseas third-party support available

Advantage:

Three overlapping spray
more uniform and higher precision
Zero Distance spraying can be realized

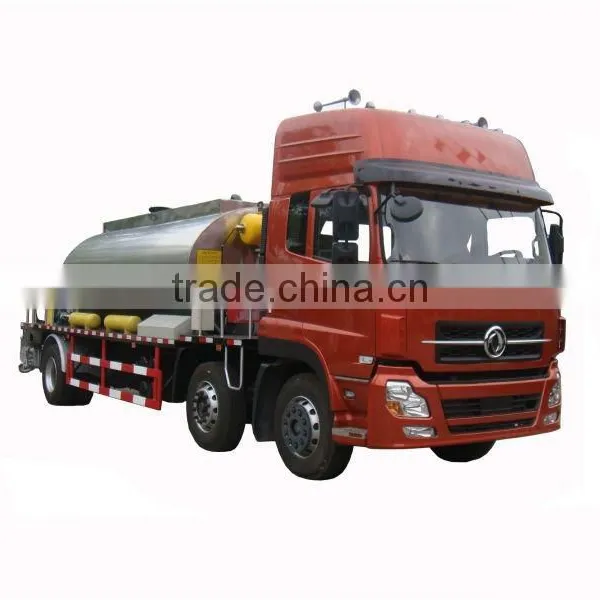

12000L Intelligent Asphalt Spraying Car

 low price asphalt distributor truck china manufacturer

Advantage

2000L, 4000L, 5000L, 8000L, 12000L is available!

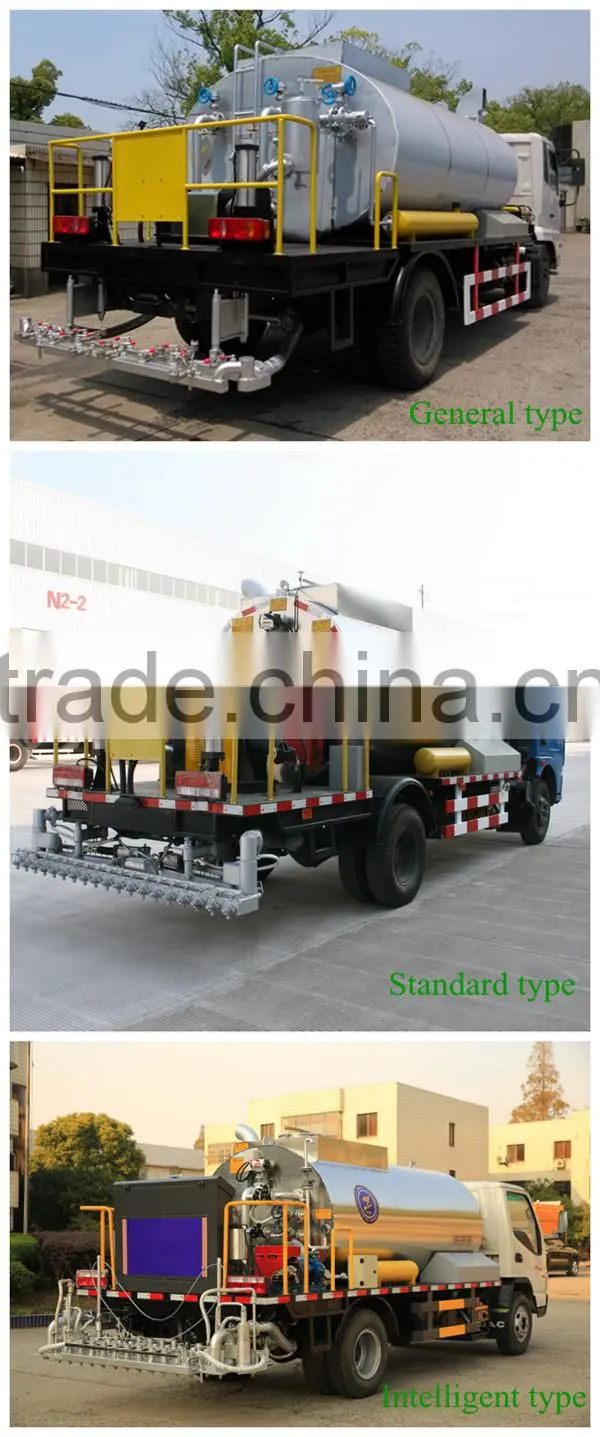

General type, Standard Type, Intelligent Type can be choose!



Sinotruck, Shacman, Dongfeng, JAC, Foton etc chassis is ok!



OEM service is supplied!



ZQZ5253GLQ

ZQZ5253GLQ Bitumen Distributor Truck





1:6*2 Chassis form makes the vehicle load more uniform.The passing ability is more reasonable. The driving is safer and more reliable.



2:It's matches with Cummins B210 engine with 210 horsepower. It's powerful, fuel-efficient and economic.



3:TFT LCD touch screen man-machine interface.



4:Man-manchine communication are more friendly, it's easier to operate.



5:Temperature control module always monitors temperature of heat conduction oil. Danger caused by high temperature and overheating of heat conduction oil can be avoided,it's safer.





6:Three overlapping spraying ensures more uniform spreading with higher precision.

Technical parameters



Mass parameter:

Kerb Weight(kg)

13800

Total Weight(kg)

25000

Rated loading Weight(kg)

11070

Dimension(mm)

11260×2490

×3690

Chassis Parameter:

Chassis Model

DFL1253AXA

Tyre model

10.00-20,10.00R20

Wheelbase (mm)

1950+5350

Tread mm

1913/1913/1860

Front Overhang(mm)

1460

Rear Overhang(mm)

2500

Approach angle/Departure angle

30°/14°

Min. Ground Clearance (mm)

250

Engine parameter:

Engine model

B210 33

Manufacturer

Dongfeng Cummins Engine Co., LTD

Max. Power(kw)

155

Max. Torque(N/m)

550/1300-1800

Displacement(ml)

5900

Fuel

Diesel

Spray specification:

Tank Capacity(m³)

12

Spray width

6000mm

Hydraulic pump model

CBQ-F563FPL

Spray Value

0.5-3.0(Kg)

Hydraulic motor

L2F107W2P2

(Liyuan)

Insulation Thickness

50mm

Controller

ZM-3D

Nozzles

39

Burner

G20(Riello)

Asphalt pump

QGB950(Shanggui)

Generator(Converter)

YT6800E





Other parameter:

Max. truck speed(km/h)

90

Max. Grade ability

>23%

Spring films(Front/Rear)

11/10

Minimum turning diameter (m)

24

Axis No.

3(6*2)




Company Information

 Our headquarters covers an area of 50000 m2, building area of 30000 m2, research and development production base of 170000 m2, with tsinghua university, zhejiang university and other professional institutions set up extensive and flexible "industry-university-institute" cooperation mechanism, has the strong ability of product development and market strain capacity.Company as AAA grade credit enterprise, with 36 Chinese patents.



Workshop





  Installation







 Case



low price asphalt distributor truck china manufacturer

Packaging & Shipping



Our Services

The extremely considerate and sincerely service would be provided to our customers    immediately in CNCAC once made the order. This including:

1.Operator Training;

2.Spare Parts Supply.

3.Life-long Technical-support

4. we can supply installation, commissioning, training etc

5. welcome to visit our factory at any time any where!

FAQ

Q1: What are the terms of payment.

A:Generally, L/C orT/T are used. 30% prepayent in advance, 70% after video inspection before shipping.

Q2: What about the delivery time.

B;It would be around 30days.

Q3: What about the arrival time.

C:Around 30days to 40days by sea.

Q4: What can get from ICOM.

D:Best Service&Trust, Top quality, Competitive price, etc.
