Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Paving Machinery > Aggregate Chip Spreader Machine Maufacturer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Paving Width:
3100mm
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stone Aggressive Spreader Road Machine for SaleNegotiableMOQ: 1 Set -
New Intelligent Bitumen Distributor for SprayingNegotiableMOQ: 1 Piece
-
ZMTS-25 Trailer Asphalt Machine Bitumen SprayerNegotiableMOQ: 1 Unit
-
Maintenance Asphalt Sprayer for Highway Construction MachineryNegotiableMOQ: 1 Piece
-
IKOM Asphalt Distributor With Clean DeviceNegotiableMOQ: 1 Piece
Condition
New
Paving Width
3100mm
Place of Origin
Zhejiang, China
Brand Name
IKOM
Model Number
A310
Dimension(L*W*H)
2500*2000*1900mm
Weight
1150kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

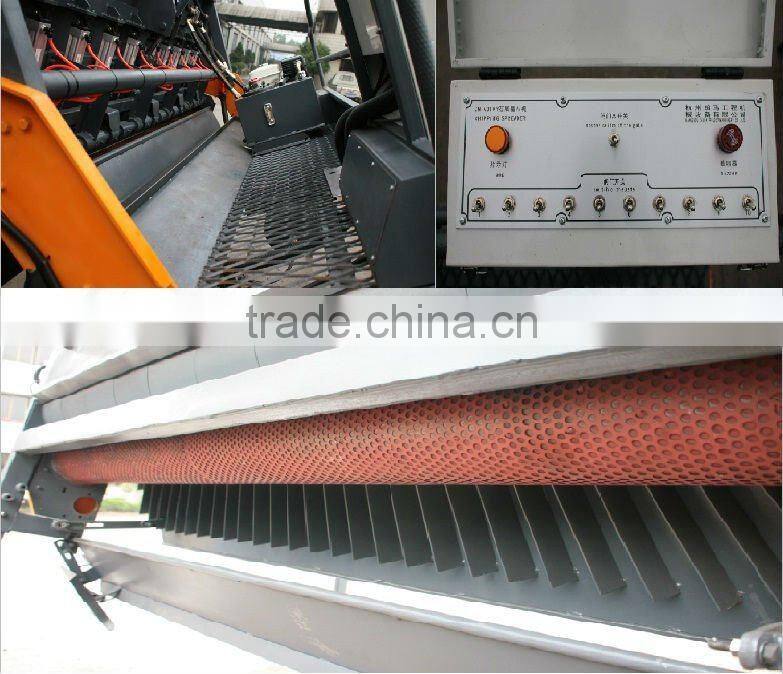

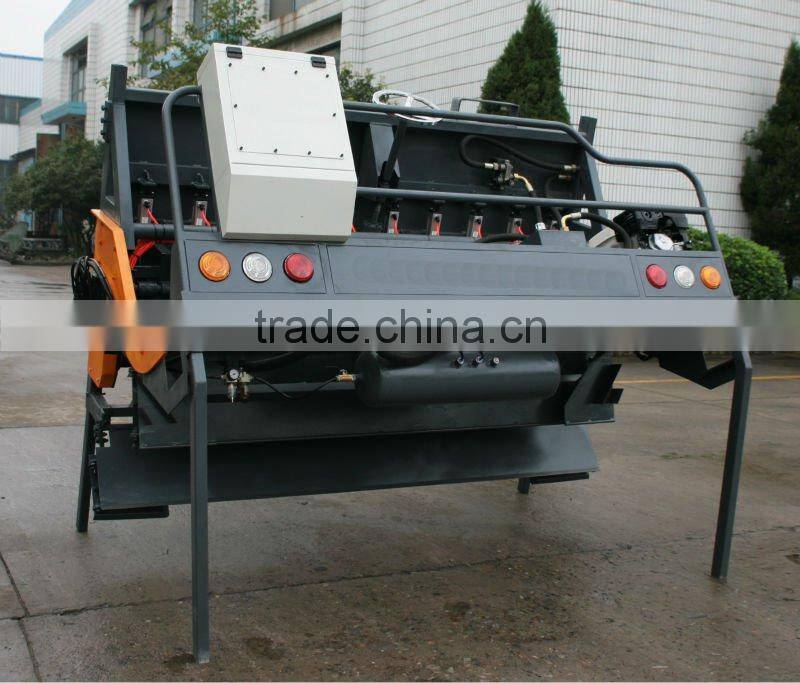

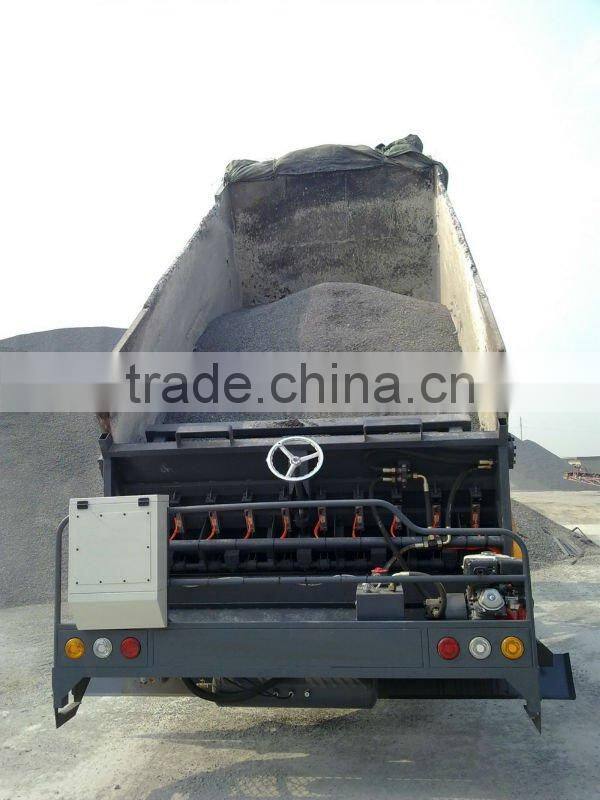

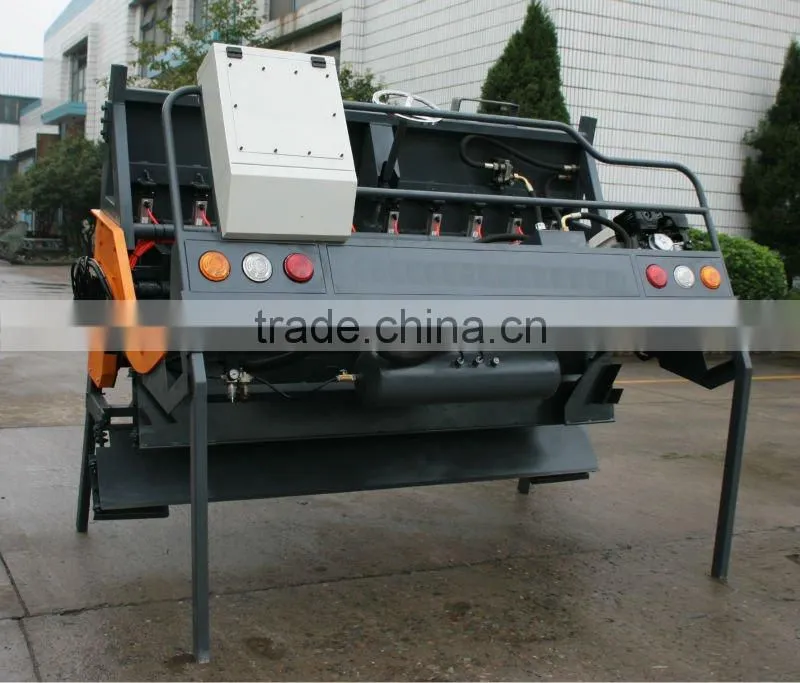

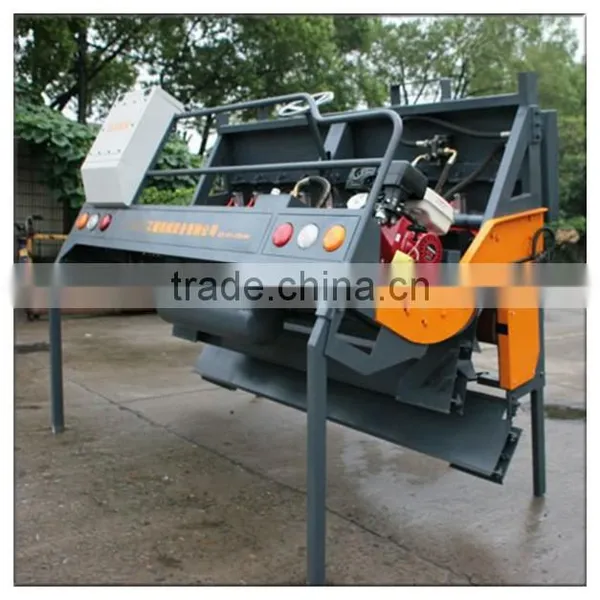

CHIPPING SPREADER
Specification |
|
| |
1 | Dimension | 2500×2000×1900(mm) |
|
2 | Chipping Size | 5~20(mm) |
|
3 | Spreading Width | MAX 3100(mm) |
|
4 | Total Weight | 1150(Kg) |
|
5 | Shipping Dimension | 2650×2150×2050(For reference) |
|
Main Fitting |
|
| |
1 | Hydraulic drive system |
| |
2 | OMR-80 Gerotor Motor |
| |
3 | CBN-E3 Gear Pump |
| |
4 | VFc001-2025Lr/c Preference Diverter Valve |
| |
5 | “Open” Pneumatic Cylinder |
| |
6 | GX270 Gasoline Engine |
| |
7 | One position switch |
| |
Optional |
|
| |
| Working Lamp |
| |
| Interphone |
| |
| Monitor |
| |
