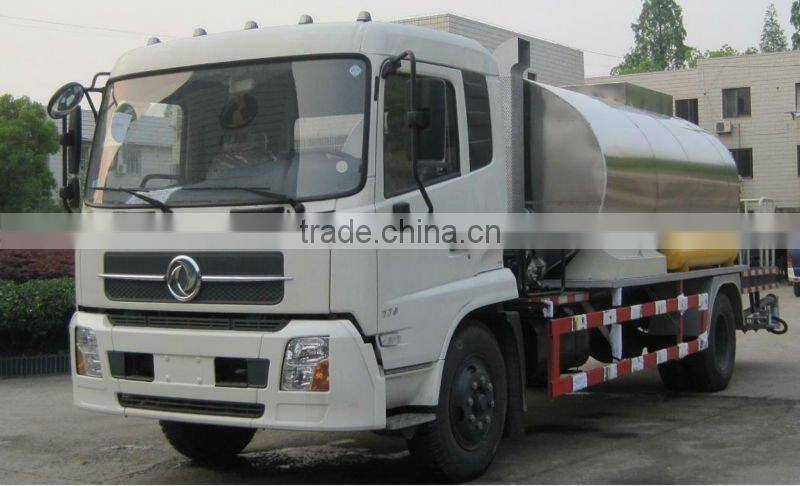

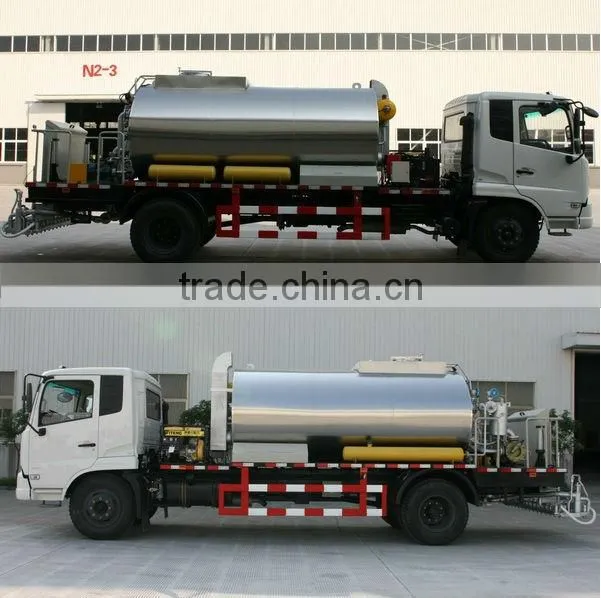

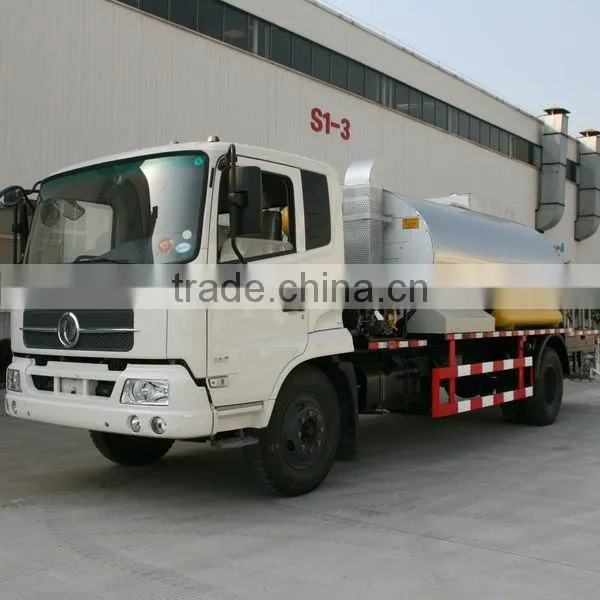

ASPHALT SPRAYER

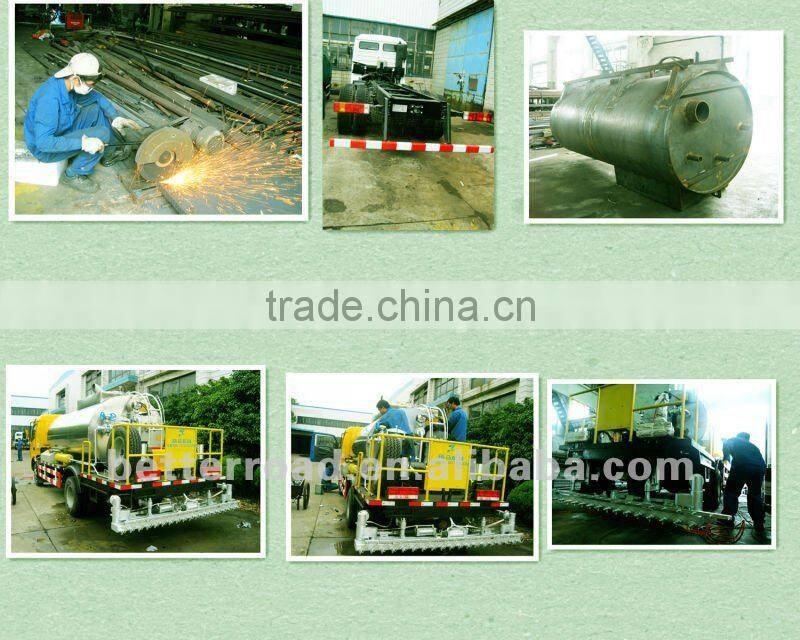

INSTALLATION
PARAMETER
Mass parameter: | |||
Kerb Weight(kg) | 9750 | Total Weight(kg) | 16000 |
Rated loading Weight(kg) | 6055 | Dimension(mm) | 8998×2490 ×3200 |
Chassis Parameter: | |||
Chassis Model | DFL1160BX | Tyre model | 9.00-20,9.00R20 |
Wheelbase (mm) | 5000 | Tread mm | 1815/1800 |
Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2568 |
Approach angle,Departure angle | 20°/14° | Minimum Ground Clearance (mm) | 250 |
Engine parameter: | |||
Engine model | B190 33 | Manufacturer | Dongfeng Cummins Engine Co. , Ltd. |
Max. Power(kw) | 140/2400 | Max. Torque(N.m) | 550/1300-1800 |
Fuel | Diesel | Displacement(ml) | 5900 |
Spray specification: | |||
Tank Capacity(m³) | 8 | Spray width | 6000mm |
Hydraulic pump model | CBQ-F540 | Spray Value | 0.5-3.0(Kg) |
Hydraulic motor | L2F63W2P2 (Liyuan) | Insulation Thickness | 50mm |
Controller | ZM-Ⅰ | Nozzles | 39 |
Burner | G20(Riello) | Asphalt pump | QGB450 |
Generator(Converter) | EC6500CX |
|
|
CERTIFICATE
PERFORMANCE

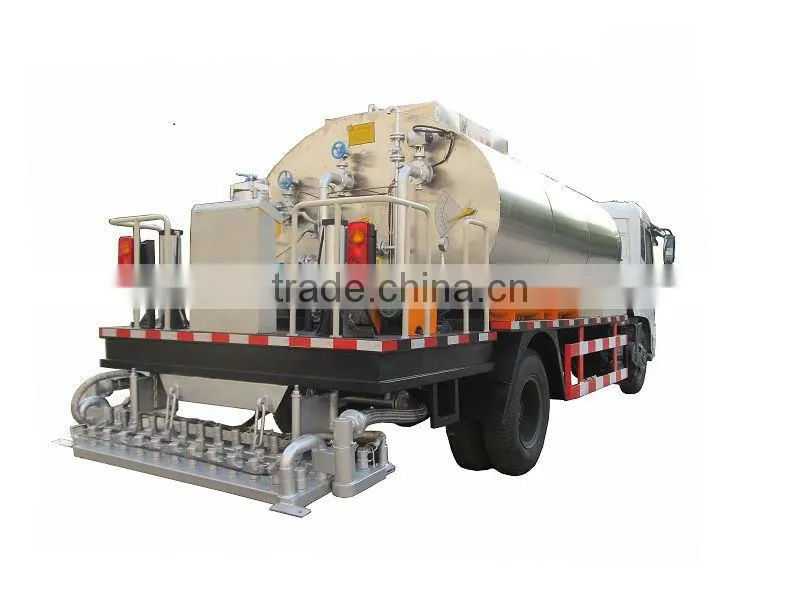

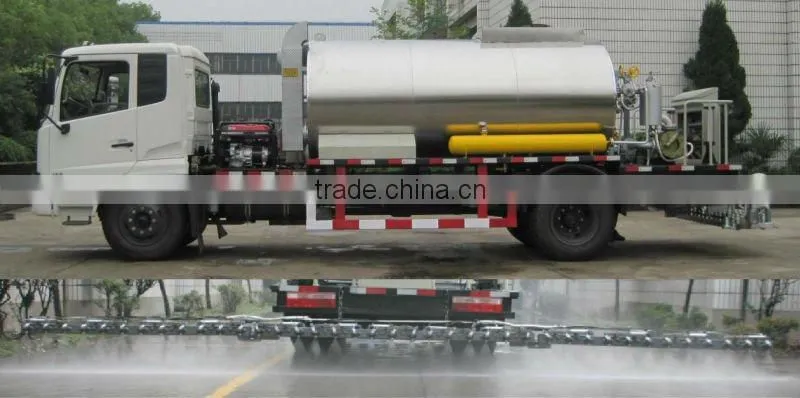

1 Nozzle:
a,Installation of stainless steel nozzle, can be positioned correctly and easy to replace
b,Stainless steel nozzle be used more time than other nozzle.
c,When spraying asphalt, bitumen consumption can be reduced and keep the quality of spray keep the
2 Heat Conducting Oil System:
a.The new Heat Conducting Oil System can heat asphalt and pump faster
b.Especially in use of spraying emulsified asphalt,speed up the heating efficiency and save fuel
3 Controller:
a.Control system is more friendly and easier to be operated.
b.Intelligentzied model is suitable for asphalt pavement construction which can improve performance achievement of the international advanced standard..
4 Cleaning:Can use diesel fuel or high-pressure air cleaning of pipes and pumps
5 Environmental protection, reduce the consumption: In the spraying end, using high pressure air makes asphalt of residues in pipe row back to the tank, Avoid residual asphalt pollution of the environment, and save the asphalt consumption

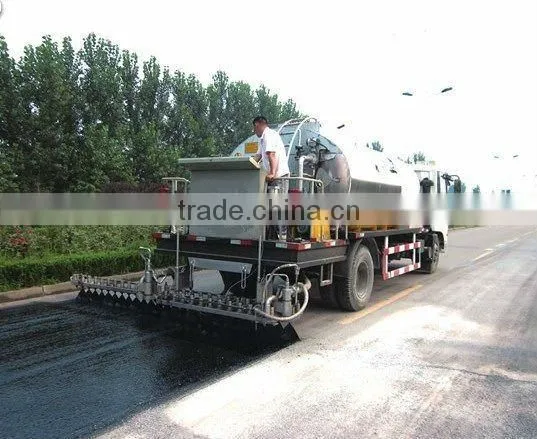

CONSTRUCTION CASE
