New Intelligent Bitumen Distributor for Spraying

Name: New Intelligent Bitumen Distributor for Spraying
Brand: ICOM
SKU: 141293068
Availability: InStock

Hangzhou IKOM Construction Machinery Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

ICOM

Model Number:

ZQZ5030GLQ

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name ICOM

Model Number ZQZ5030GLQ

After-sales Service Provided Engineers available to service machinery overseas

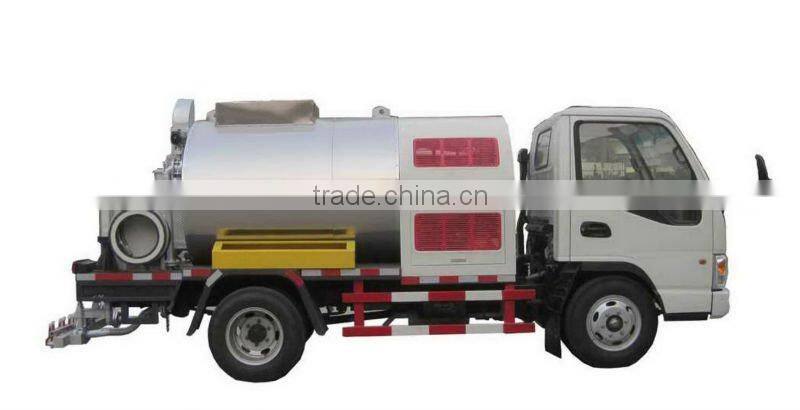

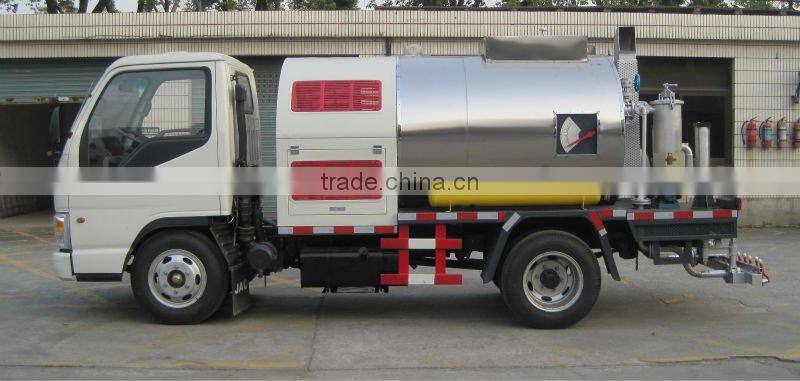

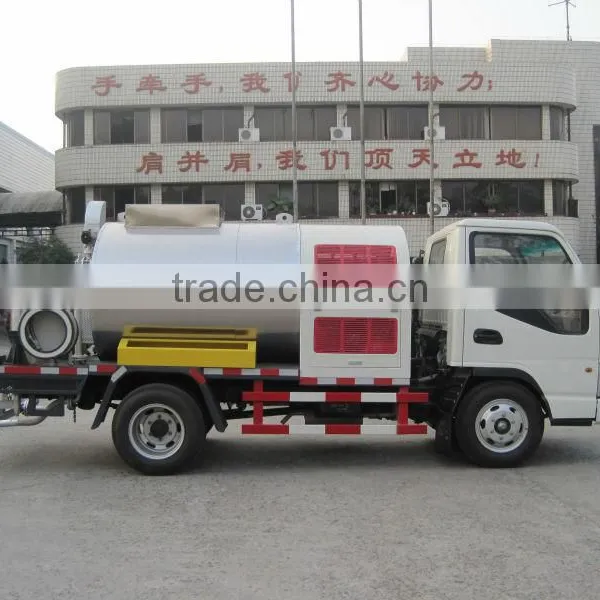

BITUMEN DISTRIBUTOR

Asphalt distributor is an intelligent high-tech product specially designed by out company

for the pavement maintencance.

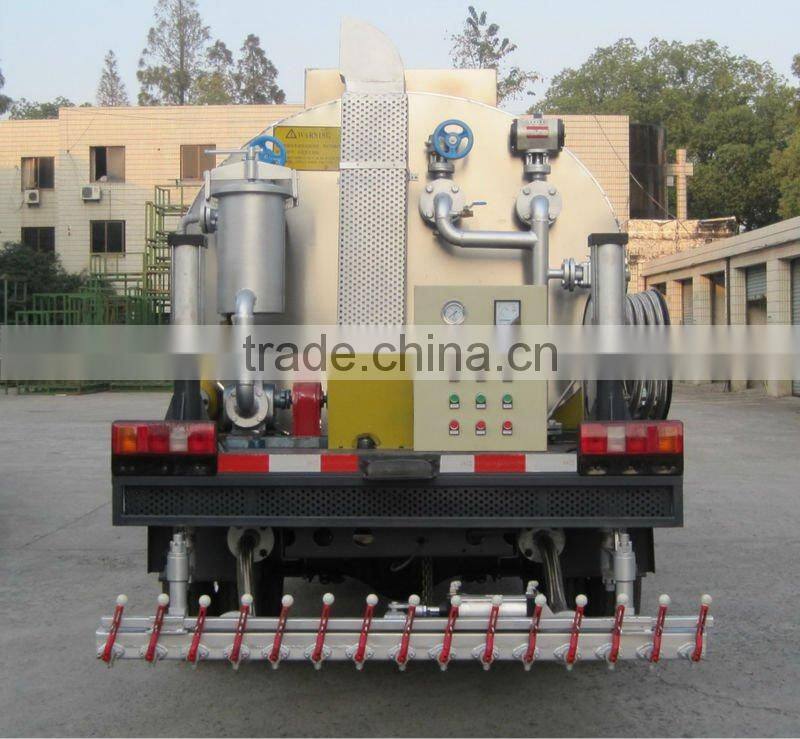

The product has two kinds of spray devices, which are spray pipe and manual sprayer

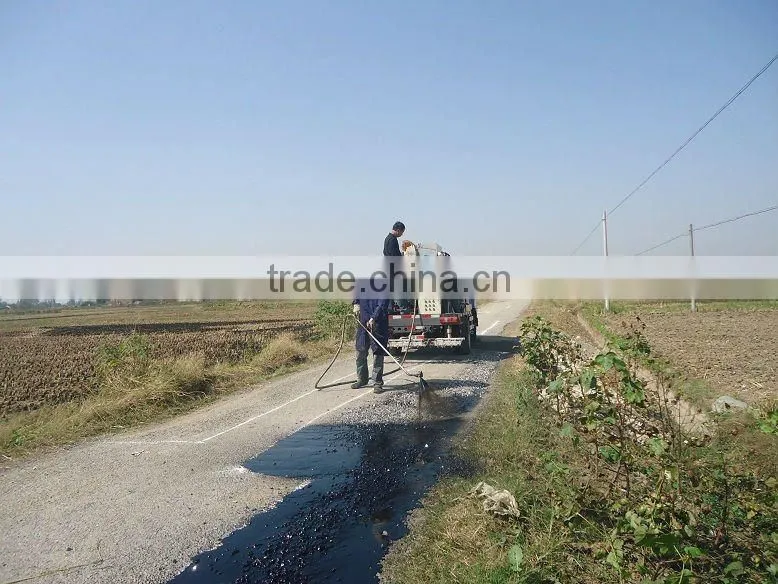

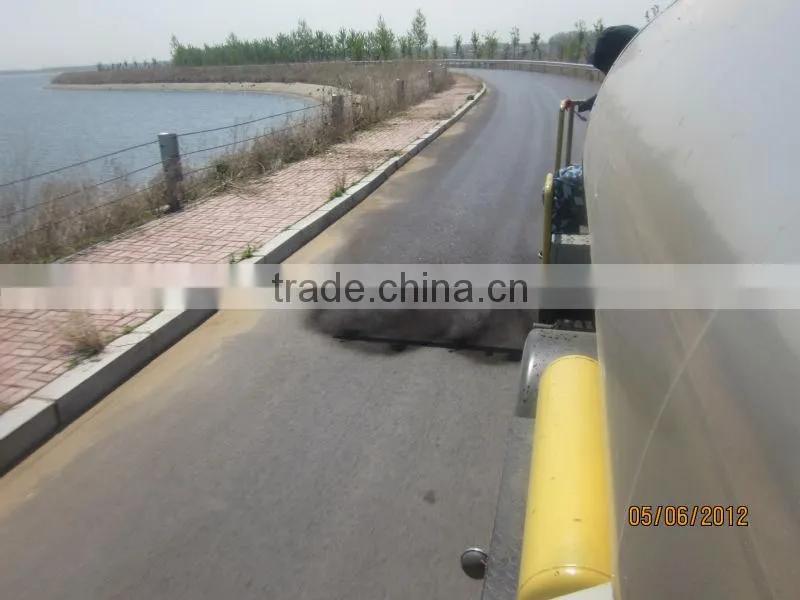

nozzle. It can not only repair the pavement, but also spray continuously in a small area,

which can greatly reduce the labor intensity of highway maintenace. Unique asphalt

pipeline cycle and tank heating insulation design can ensure normal construction for

spraying mediums, including emulsified asphalt ,oil refining asphalt, hot asphalt, etc.

The vehicle is small and beautiful. The compact structure is suitable for a small area

of repairing and maintenance of city streets and all levels of highway.

Mass parameter:
Kerb Weight(kg)	2500	Total Weight(kg)	3500
Rated loading Weight(kg)	1000	Dimension(mm)	5565x1810x2320
Chassis Parameter:
Chassis Model	HFC1030K3T	Tyre model	6.50-15
Wheelbase (mm)	2800	Tread mm	1420/1395
Front Overhang(mm)	1070	Rear Overhang(mm)	1695
Approach angle,Departure angle	20°/11.3°	Minimum Ground Clearance (mm)	180
Engine parameter:
Engine model	4D22E	Manufacturer	Anhui QuanChai power co., LTD
Max. Power(kw)	65/2500	Displacement(ml)	2156
Cylinder diameter(mm)	/	Fuel	Diesel
Spray specification:
Tank Capacity(m³)	2	Spray width	2000mm
Insulation Thickness	50mm	Spray Value	0.5—3.0(Kg)
Nozzles	15	Asphalt pump	YCB6/0.6
Burner	G10(Riello)	Generator(Converter)	YGBT2500(Diesel)
