ASPHALT MACHINE

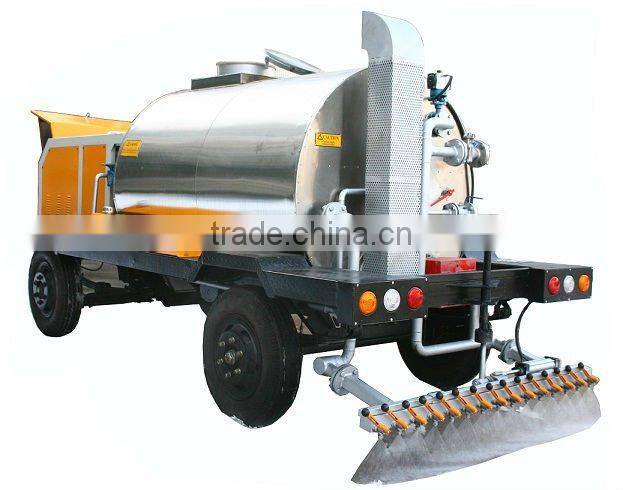

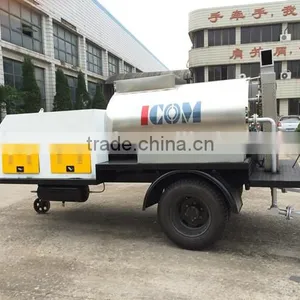

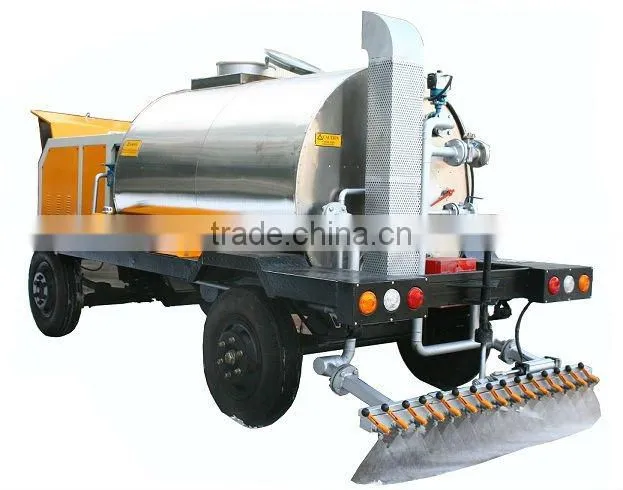

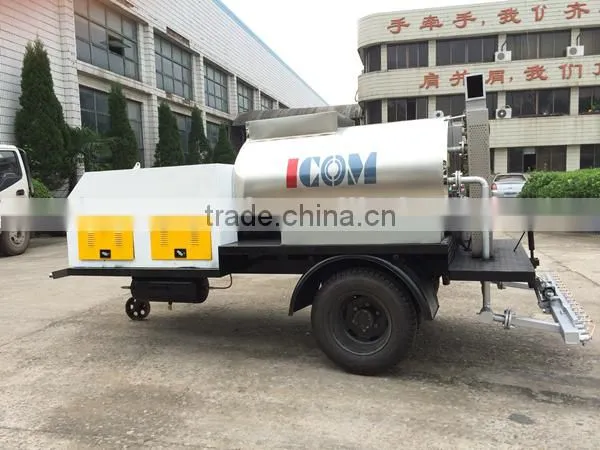

ZMTS-25 Trail Asphalt Distributor Specification
Name | TrailAsphalt Distributor | ||
Model | ZMTS-25 |
| |
Mass parameter: | |||
Kerb Weight(kg) | 2300 | Total Weight(kg) | 4800 |
Rated loading Weight(kg) | 2500 | Dimension(mm) (Excluding traction arm ) | 4960×1860 ×2200 |
Chassis Parameter: | |||
Chassis Model | ZMTS-25 | Tyre model | 7.50-16 |
Wheelbase (mm) | 2310 | Tread mm | 1650 |
Front Overhang(mm) | / | Rear Overhang(mm) | / |
Approach angle,Departure angle | / | Minimum Ground Clearance (mm) | 350 |
Spray specification: | |||
Tank Capacity(m³) | 2.5 | Spray width | 2000mm |
Hydraulic pump model | / | Spray Value | 0.5—3.0(Kg) |
Hydraulic motoe | / | Insulation Thickness | 50mm |
Controller | / | Nozzles | 15 |
Burner | G10(Riello) | Asphalt pump | YCB6/0.6 |
Generator(Converter) | YGBT2500 | Manual gun nozzle | 1(conical) |
Air compressor | 0.1/0.8 |
|
|
Other parameter: | |||
Max. Trail speed(km/h) | 30 | Max. Grade ability | / |
Spring films(Front/Rear) | / | Minimum turning diameter (m) | / |
|
| Axis No. | 2 |
Performance
1,Nozzle:
a,Installation of stainless steel nozzle, can be positioned correctly and easy to replace
b,Stainless steel nozzle be used more time than other nozzle.
c,When spraying asphalt, bitumen consumption can be reduced and keep the quality of spray keep the
2,Controller:
a.Control system is more friendly and easier to be operated.
b. Intelligentzied model is suitable for asphalt pavement construction which can improve performance achievement of the international advanced standard..
3,Cleaning:Can use diesel fuel or high-pressure air cleaning of pipes and pumps
4,Environmental protection, reduce the consumption: In the spraying end, using high pressure air makes asphalt of residues in pipe row back to the tank, Avoid residual asphalt pollution of the environment, and save the asphalt consumption

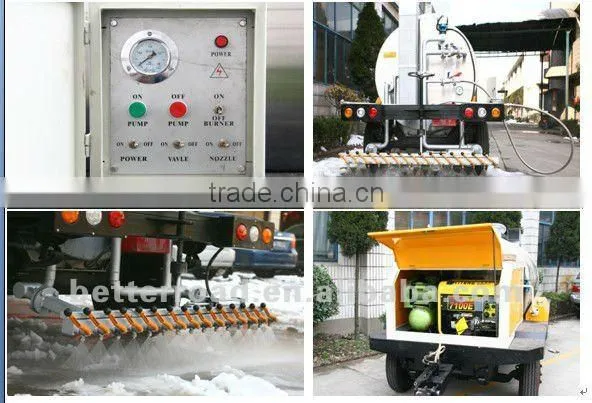

KEY COMPONENT

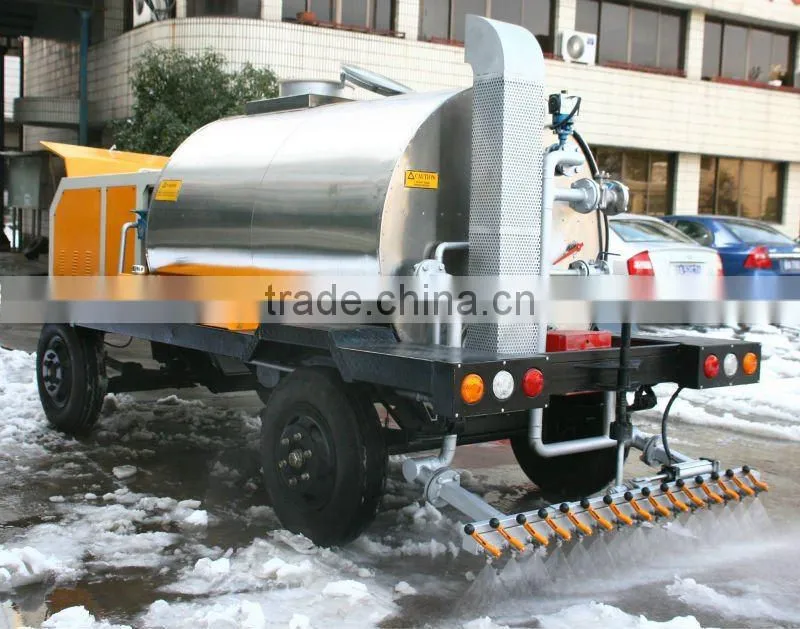

TEST
CONSTRUCTION CASE
