8 M3 Bitumen Tanker Synchronous Chip Sealer Truck

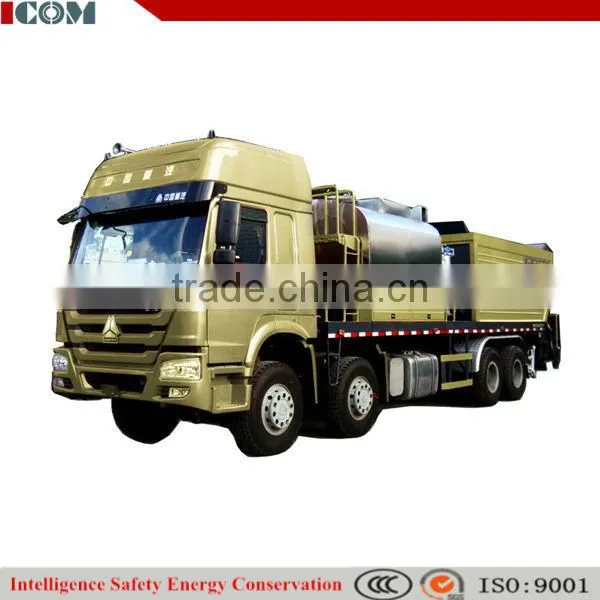

8 M3 Bitumen Tanker Synchronous Chip Sealer Truck photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ICOM
Model Number:
ZQZ5311TFC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name ICOM
Model Number ZQZ5311TFC
After-sales Service Provided Engineers available to service machinery overseas

 SYNCHRONOUS CHIP SEALER



8 M3 bitumen tanker synchronous chip sealer truck



This is a new generation of asphalt and stone crushing synchronous seal paver with the latest scientific and technological achievements of ICOM Machinery. The appearance of the synchronous vehicle breaks through that of traditional pavement construction vehicle. Structure and coating are more high-end and practical. The construction operation is more convenient and quick for the construction personnel.



Construction efficiency has been greatly improved. After long-term technology research of ICOM people, uneven spreading of stone chips of domestic similar products, clear strip in the middle of the road, few stone chips on both sides and other defects have been effectively corrected. Spreading uniformity of stone chips is improved and spreading width of stone chips is effectively guaranteed. The vehicle can be widely used in synchronous seal operation of each grade of highway. It is cost-saving, wear-resisting, anti-skidding and waterproof. After construction traffic can be quickly restored. It is suitable for waterproof of road surface and bridge deck, crushed stone seal technology of the lower seal coat and pavement maintenance and repairing.



8 M3 bitumen tanker synchronous chip sealer truck





8 M3 bitumen tanker synchronous chip sealer truck8 M3 bitumen tanker synchronous chip sealer truck

8 M3 bitumen tanker synchronous chip sealer truck8 M3 bitumen tanker synchronous chip sealer truck



ass parameter:

Kerb Weight(kg)

21200

Total Weight(kg)

31000

Rated loading Weight(kg)

9670

Dimension(mm)

12000×2495

×3730

Chassis Parameter:

Chassis Model

ZZ1317N4667D1H

Tyre model

12.00R20

Wheelbase (mm)

1800+4600+1350

Tread (mm)

2022/1830

Front Overhang(mm)

15200

Rear Overhang(mm)

2750

Approach angle,Departure angle

20°/13°

Minimum Ground Clearance (mm)

205

Engine parameter:

Engine model

D10.34-40

Manufacturer

China Heavy Duty Truck Group Co., Ltd.

Max.Power(kw)

249

Max. Torque(N.m)

/

Fuel

Diesel

Displacement(ml)

9726

Chip sealer specification:

Tank Capacity(m³)

8

Chippings Capacity(m³)

12

Hydraulic pump model

CBQ-F563

Spray width

3500mm

Hydraulic motoe

L2F63W2P2(LIYUAN)

Spray Value

0.5-3.0(Kg)

Controller

ZM-3D

Insulation Thickness

50mm

Generator(Converter)

YT6800E(YITENG)

Nozzles

28

Asphalt pump

QGB450(SHANGGUI)

Burner

G20(Riello)

Other parameter:

Max. truck speed(km/h)

90

Max. Grade ability

>23%

Spring films(Front/Rear)

11/11/12

Minimum turning diameter (m)

15.4





Axis No.

4(8*4)



8 M3 bitumen tanker synchronous chip sealer truck

8 M3 bitumen tanker synchronous chip sealer truck
