2015 new type trailer,asphalt trailer,asphalt distributor trailer for road construction

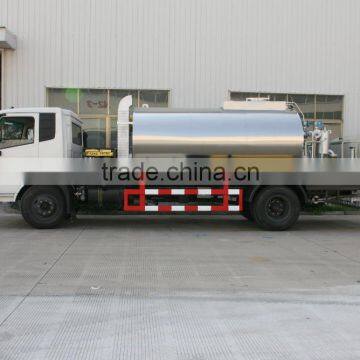

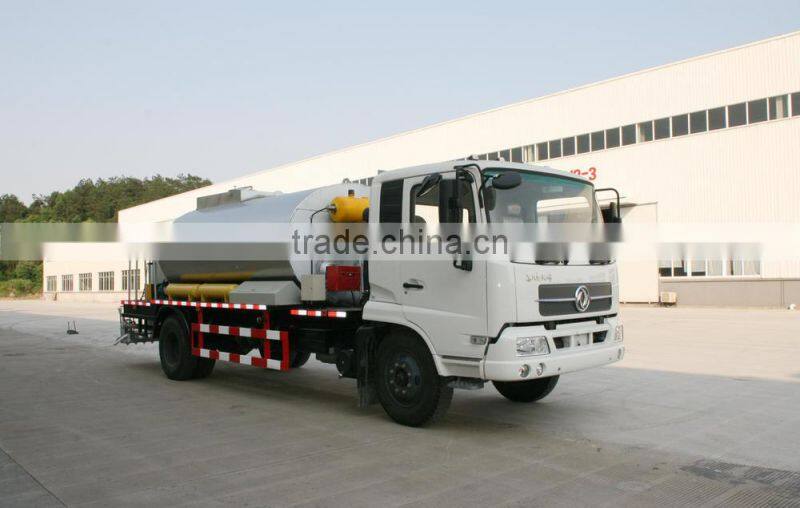

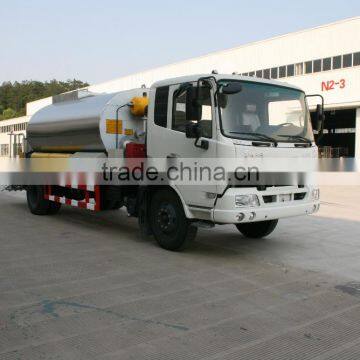

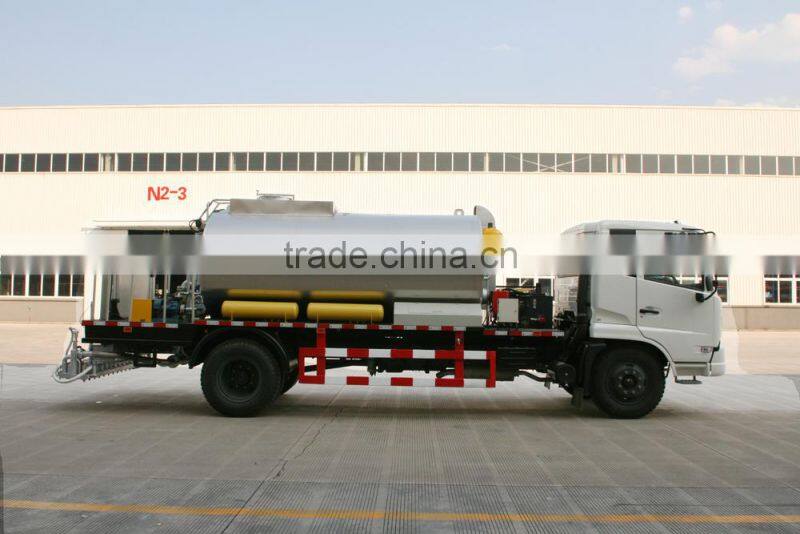

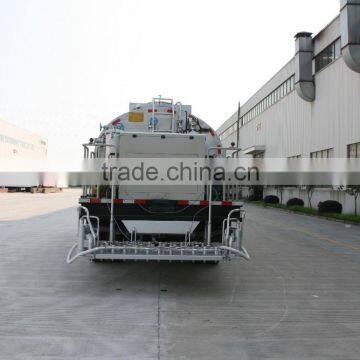

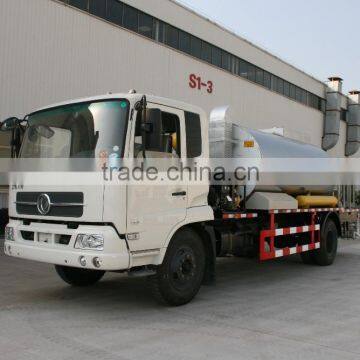

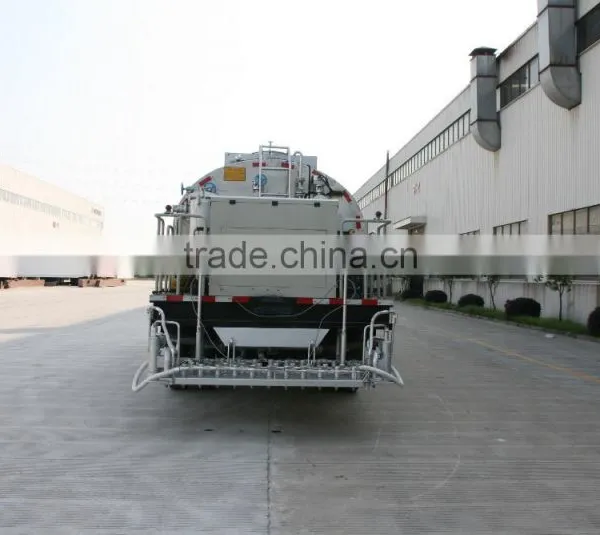

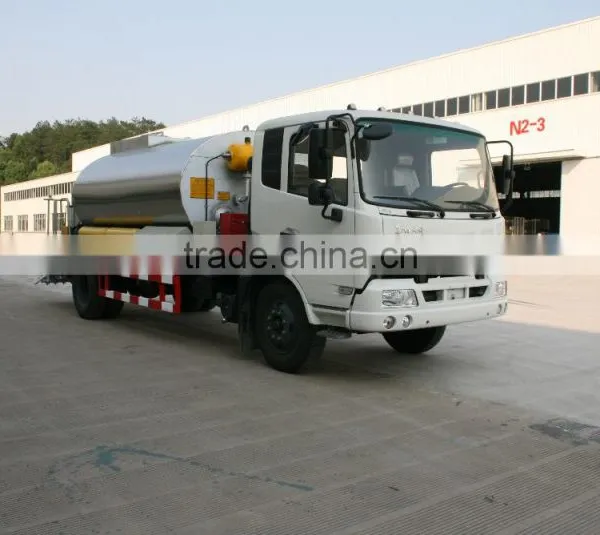

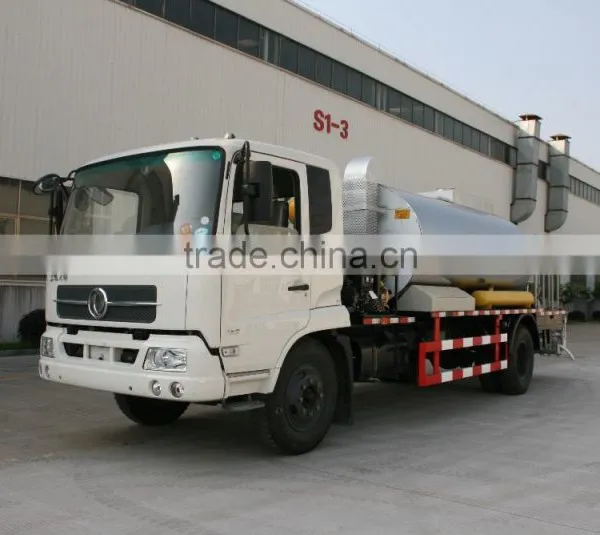

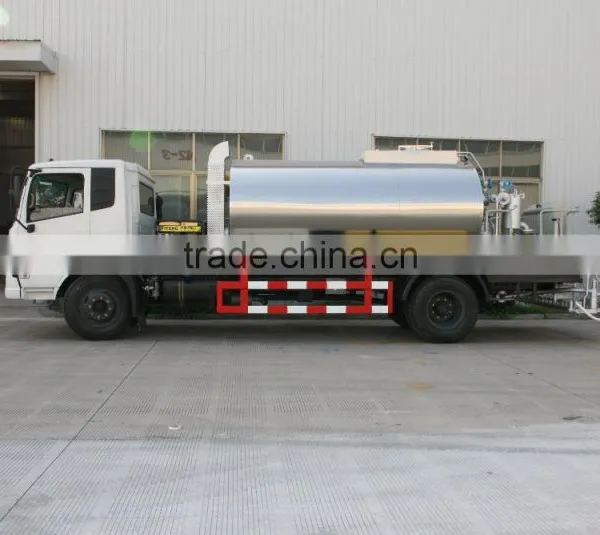

ZQZ5161GLQ Intelligent Asphalt Distributor is an intelligent high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt. The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.
Mass parameter: | |||||||
Kerb Weight(kg) | 8900 | Total Weight(kg) | 16000 | ||||
Rated loading Weight(kg) | 7100 | Dimension(mm) | 8995×2490×3160 | ||||
Chassis Parameter: | |||||||
Chassis Model | DFL1160BX7A | Tyre model | 9.00R20 | ||||
Wheelbase (mm) | 5000 | Tread mm | 1815/1800 | ||||
Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2565 | ||||
Approach angle,Departure angle | 20°/11.3° | Minimum Ground Clearance (mm) | 250 | ||||
Engine parameter: | |||||||
Engine model | EQH160-30 | Manufacturer | DongFeng Motor Co., LTD | ||||
Max. Power(kw) | 118/2400 | Max. Torque(N.m) | 550/1300-1800 | ||||
Fuel | Diesel | Displacement(ml) | 4752 | ||||
Spray specification: | |||||||
Tank Capacity(m³) | 8 | Spray width | 6000mm | ||||
Hydraulic pump model | CBQ-F550AFHL | Spray Value | 0.5-3.0(Kg) | ||||
Hydraulic motor | L2F63W2P2(Liyuan) | Insulation Thickness | 50mm | ||||
Controller | ZM-3D | Nozzles | 39 | ||||
Burner | G20(Riello) | Asphalt pump | QCB450 | ||||
Generator(Converter) | YGBT2500 |
|
| ||||
Other parameter: | |||||||
Max. truck speed(km/h) | 95 | Max. Grade ability | >23% | ||||
Spring films(Front/Rear) | 11/10+10 | Minimum turning diameter (m) | 18.4 | ||||
Axis No. | 2(4*2) |
|
| ||||
