Home > Products > Asphalt Distributor Parts > new technology road asphalt distributor machine for sale

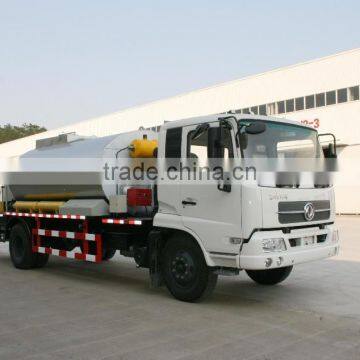

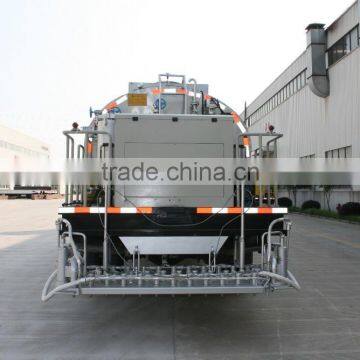

new technology road asphalt distributor machine for sale
- SHANGHAI
- T/T
You May Like
Product Details
Condition | New | Power(W) | 118KW | |
Place of Origin | Zhejiang, China | Brand Name | ICOM | |
Model Number | ZQZ5161 | Dimension(L*W*H) | 8995x2490x3160mm | |
Weight | 16000kg | Certification | ISSA | |
Warranty | within one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ZQZ5161GLQ Intelligent Asphalt Distributor is an intelligent high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt. The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.
1,The new generation of Dongfeng Tianjin is used as bearing chassis. The vehicle is environment-friendly, fuel-efficient, oil saving, safe, comfortable, reliable and powerful;
2,Asphalt storage tank is covered with insulation cotton and inside wall is coated with high temperature insulation coatings (the only one in China). The heat preservation effect is better and more lasting;
3,High power diesel engine is used as auxiliary power. The performance is more reliable and it is safer to use;
Mass parameter: | |||||||
Kerb Weight(kg) | 8900 | Total Weight(kg) | 16000 | ||||
Rated loading Weight(kg) | 7100 | Dimension(mm) | 8995×2490×3160 | ||||
Chassis Parameter: | |||||||
Chassis Model | DFL1160BX7A | Tyre model | 9.00R20 | ||||
Wheelbase (mm) | 5000 | Tread mm | 1815/1800 | ||||
Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2565 | ||||
Approach angle,Departure angle | 20°/11.3° | Minimum Ground Clearance (mm) | 250 | ||||
Engine parameter: | |||||||
Engine model | EQH160-30 | Manufacturer | DongFeng Motor Co., LTD | ||||
Max. Power(kw) | 118/2400 | Max. Torque(N.m) | 550/1300-1800 | ||||
Fuel | Diesel | Displacement(ml) | 4752 | ||||
Spray specification: | |||||||
Tank Capacity(m³) | 8 | Spray width | 6000mm | ||||
Hydraulic pump model | CBQ-F550AFHL | Spray Value | 0.5-3.0(Kg) | ||||
Hydraulic motor | L2F63W2P2(Liyuan) | Insulation Thickness | 50mm | ||||
Controller | ZM-3D | Nozzles | 39 | ||||
Burner | G20(Riello) | Asphalt pump | QCB450 | ||||
Generator(Converter) | YGBT2500 |
|
| ||||
Other parameter: | |||||||
Max. truck speed(km/h) | 95 | Max. Grade ability | >23% | ||||
Spring films(Front/Rear) | 11/10+10 | Minimum turning diameter (m) | 18.4 | ||||
Axis No. | 2(4*2) |
|
|
Hang zhou ICOM Construction Machinery Co., Ltd is located in Hangzhou, it was the branch company of CHINA NATIONAL COMMERCIAL AUTOMOBILE CO.,LTD(CNCAC), The CNCAC passed the ISO9001:2008international quality system certification and products 3C authentication, the products cover asphalt distributor, synchronous chip sealer, bitumen equipment, chipping spreader.
Q1: What are the terms of payment.
A:Generally, L/C orT/T are used. that is 30% prepayent and 70% before shipping.
Q2: What about the warranty.
A;It would be for 1 years.
