Help Center30kw Wind Turbine
Related Products
Specifications
1.30kw wind turbine2.low start up wind speed
3.high wind energy efficient.
4.CE,ISO certified.
5.low noise

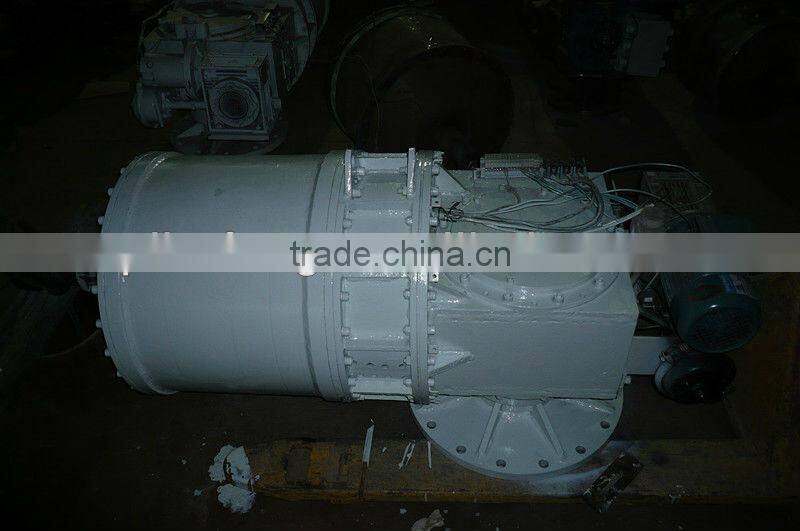

30kw wind turbine
Our company seeks survival by quality, and seeks development with technique. Through several years of development, our company has become a company which has a unique management system in the field of wind power industry. In order to win in the competition, our company formed an organic whole-service system which includes design, manufacture, installation, debugging, marketing, and after-sale service.
Looking forward to your enquiry. Thank you very much.
paramter list:
Power |
30000W |
Type of generator |
Permanent-magnet -3phase A.C. |
Blade diameter |
12.5m |
Blade Material: |
FRP (Fiber glass reinforced*3) |
rated rotor speed |
100r/min |
rated speed |
10m/s |
rated Power |
30000W |
max Power |
35000w |
output voltage |
DC380V/AC380V/50HZ |
start up wind speed |
2.5(m/s) |
work speed |
3-25(m/s) |
security wind speed |
40(m/s) |
Rate-limiting mode |
Hydraulic brakes, PLC control |
Dogvane |
Measurement of wind turbine angle agaist wind |
Anemoscope |
Testing real-time wind speed and then transfer the signal to controller |
height of Free sdand tower |
18m(hot galvanized and plastic spraying) |
top quality except tower |
1130kg |
Total weight(kg) |
3523 |
output controller system |
Controller , Inverter |
|
Suggested batteries and it’s capacity |
12V 200AH 60psc (60PCS 12V200AH) |
can supply power for |
Small Village, air-condition, refrigerator, washing machine , water pump ,electric pan, color TV, lighter, fanner, charger
|
