Specifications
1.50kw wind turbine2.low start up wind speed
3.high wind energy efficient.
4.CE,ISO certified.
5.low nois

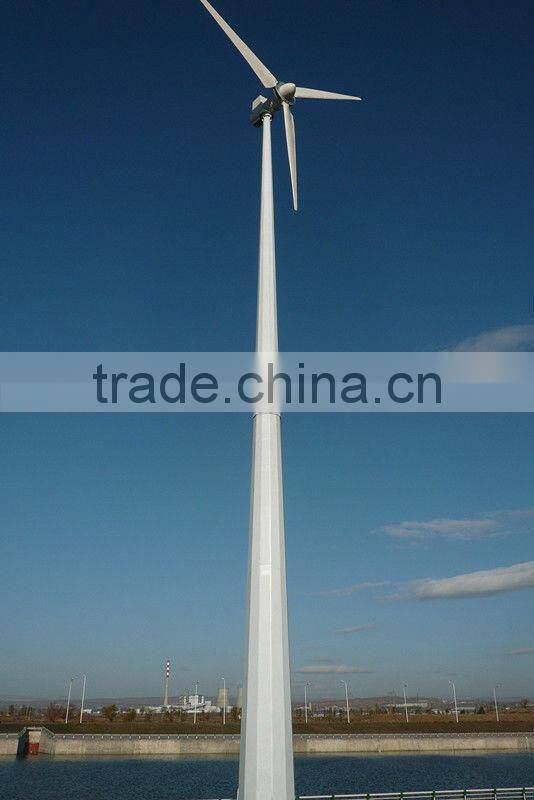

50kw wind turbine
Company arespecialized in manufacturing wind turbines, the main products are 200W, 300W, 600W, 1KW, 2KW, 3KW, 5KW, 10KW, 20KW, 30KW, 50KW wind turbines and small solar panels, products are exported to the United States , Germany, Britain, France, Pakistan, Indonesia, Mongolia, has a customers high praise.
Product quality are reliable, the company developing on "technology to survive, quality to develop " and has passed CE, ISO9001 international quality certifications, from the technical design, product manufacturing, product inspection, etc. have been used to maintain a complete management system.
50KW wind turbine technical parameters
Model |
BF-50000W |
Type of generator |

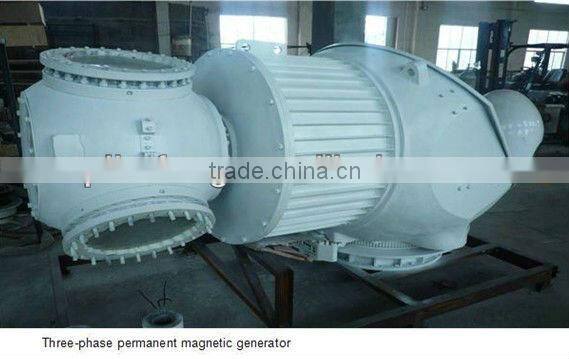

Direct drive permanent magnet (PM) generator |
Blade diameter |
18.0m |
Blade Material: |
FRP (Fiber glass reinforced*3) Blades Pitch Control |
rated rotor speed |
60r/min |
Controllerer |
Controller based PLC module |
automatic adjustment system |
Automatic lubrication;Automatic variable pitch;Automatic control |
rated speed |
10m/s |
rated Power |
50000W |
max Power |
55000w |
output voltage |
DC380V/AC380V/50HZ |
start up wind speed |
3(m/s) |
work speed |
3-20(m/s) |
security wind speed |
40(m/s) |
Rate-limiting mode |
Hydraulic brakes, PLC control Mechanical brake Electromagnetic brakes / air brakes Electric yaw system |
Dogvane |
Measurement of wind turbine angle agaist wind |
Anemoscope |
Testing real-time wind speed and then transfer the signal to controller |
height of Free sdand tower |
18m (hot galvanized and plastic spraying) |
top quality except tower |
2050kg |
Total weight(kg) |
7800kg |
output controller system |
Controller , Inverter |
Suggested batteries and it’s capacity |
12V 200AH 120psc (120PCS 12V200AH) |
can supply power for |
Small Village, air-condition, refrigerator, washing machine , water pump ,electric pan, color TV, lighter, fanner, charger |
