10kw Wind Turbine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Bofeng
Model Number	BF-10KW		Type	Wind Power Generator

1.10kw wind turbine
2.low start up wind speed
3.high wind energy efficient.
4.CE,ISO certified.
5.low noise

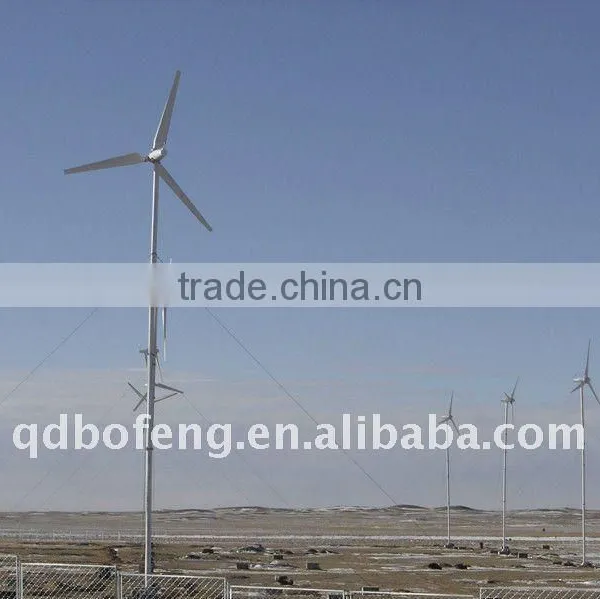

10kw wind turbine

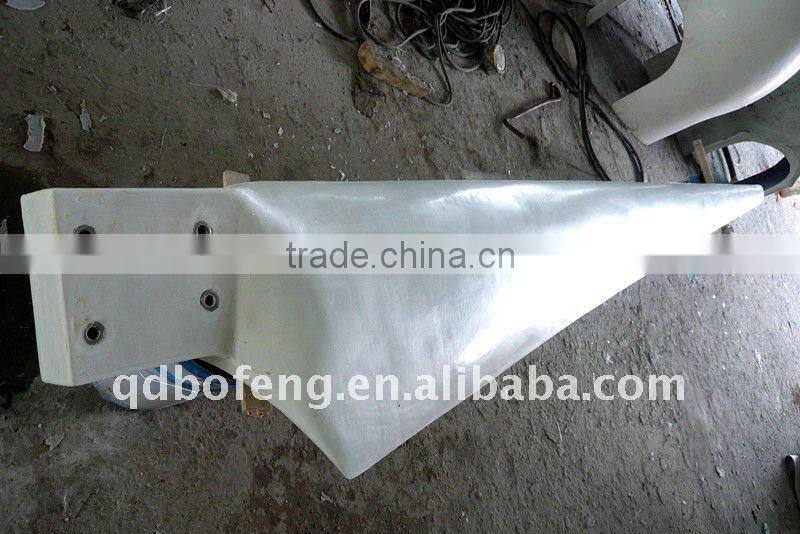

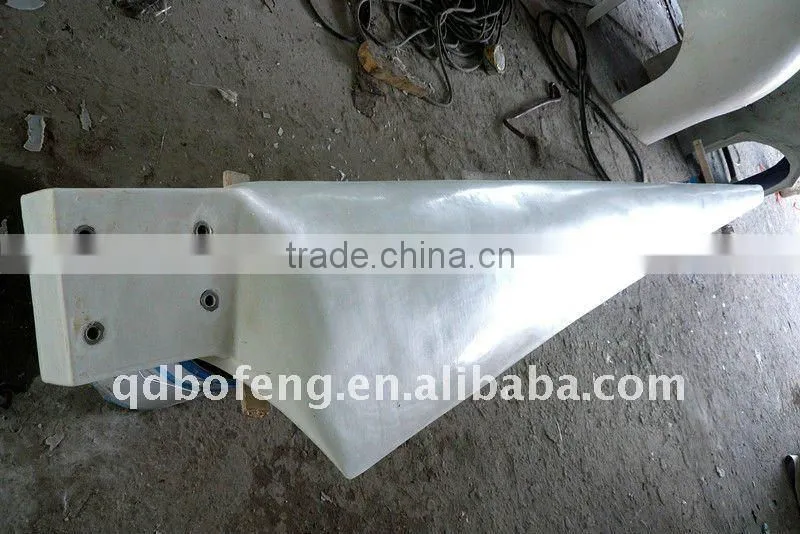

Blade design according to the structure and technology of airplane propeller, low noise and high strength

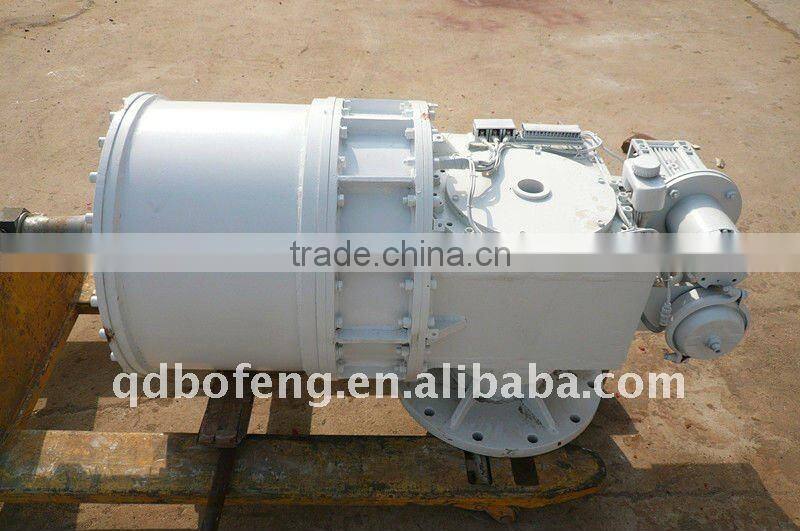

Generator adopt NdFeB strong permanent magnetic materials
Adopt the slip ring for power output, to prevent the cables twisted
Special slip ring can allow big current
Newest high technology PWM controller
Special anti-corrosion treatment

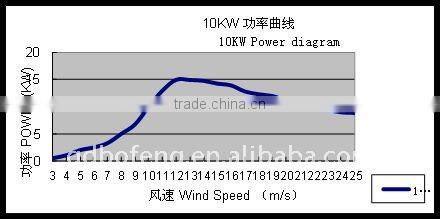

10KW wind turbine technical parameters

Model	BF-10000W
Type of generator	Permanent-magnet -3phase A.C.
Blade diameter	8.0m
Blade Material:	FRP (Fiber glass reinforced*3)
rated rotor speed	160r/min
rated speed	10m/s
rated Power	10000W
max Power	15000w
output voltage	DC380V/AC220V/50HZ
start up wind speed	3(m/s)
work speed	3-20(m/s)
security wind speed	40(m/s)
Rate-limiting mode	Hydraulic brakes, PLC control
Dogvane	Measurement of wind turbine angle agaist wind
Anemoscope	Testing real-time wind speed and then transfer the signal to controller
height of guy cable tower	12m(159*5)Galvanized seamless steel pipe surface, then spray antiseptic white paint.
top quality except tower	600kg
Total weight(kg)	1463kg
output controller system	Controller , Inverter
Suggested batteries and it’s capacity	12V 150AH 30psc (30PCS 12V150AH)
can supply power for	Small Village, air-condition, refrigerator, washing machine , water pump ,electric pan, color TV, lighter, fanner, charger
