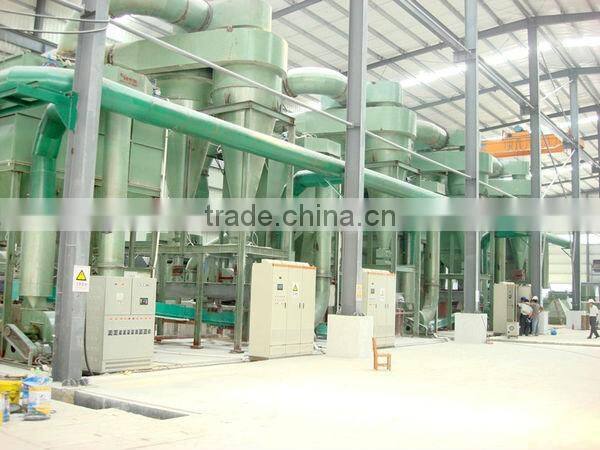

Help Center100--600 Mesh Power Plant Desulfuation Mill
Related Products
-
80-400 Mesh Powder Grinding Machine / Powder Grinding Machine / Grinding MilUS$ 10,000 - 80,000MOQ: 1 Set -
Powder Roller Grinding Machine Manufacturing PlantUS$ 10,000 - 1,000,000MOQ: 1 Set
-
800 Mesh Copper Ore Grinding MillUS$ 10,000 - 80,000MOQ: 1 Set
-
HCH Super-micro MillUS$ 10,000 - 600,000MOQ: 1 Set
-
Calcite Micro Powder MillUS$ 2,000 - 105,000MOQ: 1 Set
Raymond Mill/Grinding Mill/Ultrafine Mill---China No.1 +2000 Case Plants in China
Product introduction
HC Series Grinding Mill is a newly developed large-scale mill by Guilin Hongcheng. The equipment referenced the operating principle of pendulum mill and improved the swinging method. With out changing other parameter, the centrifugal grinding pressure increased about 35%. The contact area of roller and ring is improved, the output has 2.5 to 4 times higher than traditional R mills. Applied constraint turbine classifier, production fineness can be adjusted around 0.18-0.022mm (80-600 mesh). At the same time, gearing device and roller assembly sealing are also improved to increase operational reliability and to offer an easier maintenance. HC Grinding Mill has the advantages of high capacity, high efficiency, low investment and operation cost and low pollution, it is the best choice of large-scale powder processing.
Advantages of 100--600 Mesh Power Plant Desulfuation Mill:
1) The only professional producer of Raymond Mill in China.
2) Power-saving and Higher Production Capacity (1-40T/H)
3) Smooth and Reliable Performance.
4) Fineness: 80—600 Mesh (Adjustable)
5) Run for 1000 hours without Lubrication.
Application of 100--600 Mesh Power Plant Desulfuation Mill :
Applied in nonflammable and non-explosive minerals of which Moh’s hardness less than 7 and moisture less than 6%, for example: quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, zircon, slag, granulating slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum, graphite.

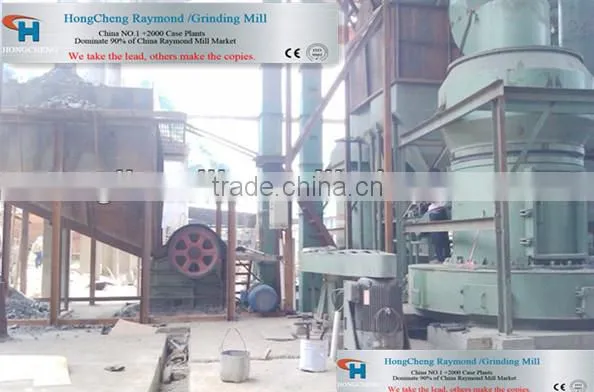

Working Principles of 100--600 Mesh Power Plant Desulfuation Mill :
Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper. Secondly, the raw material goes into the grinding chamber through the electro-magnetic vibrating feeder at an even rate. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Technical Data of 100--600 Mesh Power Plant Desulfuation Mill :
Model | 2R2713 | 3R3220 | 4R3216/3218 | 5R4119/4121 | |
Roller | No. of Roller | 2 | 3 | 4 | 5 |
Diameter: (mm) | 270 | 320 | 320 | 410 | |
Height: (mm) | 130 | 200 | 160/180 | 190/210 | |
Ring | Inner Diameter: (mm) | 780 | 970 | 970 | 127 0 |
Height: (mm) | 130 | 200 | 160 | 190 | |
Max. Feeding Size (mm) | ≤15 | ≤20 | ≤20 | ≤25 | |
Fineness(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | |
Total Power (kw) | 42.5 | 87.5 | 87.5 | 172.5 | |
Capacity: (t/h) | 0.3-3 | 1-4.5 | 1-4.5 | 2-9 | |
Overall Dimension (L×W×H)(mm) | 5490×3875×5530 | 7464×5000×8345 | 7464×5000×8345 | 11345×6885×10330 | |
Weight: (t) | 5.5 | 14 | 14.2 | 28 | |
Model | HC1000 | HC1300 | HC1460 | HC1700 | HC2000 | |
Roller | Number of Rollers | 3 | 4 | 4 | 5 | 5 |
Diameter(mm) | 320 | 410 | 460 | 510 | 620 | |
Height(mm) | 200 | 230 | 250 | 250 | 250 | |
Ring | Inner Diameter(mm) | 970 | 1270 | 1460 | 1700 | 2000 |
Height(mm) | 200 | 210 | 250 | 250 | 250 | |
Max. Feeding Size(mm) | ≤20 | ≤25 | ≤35 | ≤50 | ≤50 | |
Fineness(mm) | 0.015-0.18 | 0.044-0.18 | 0.022-0.18 | 0.022-0.18 | 0.022-0.18 | |
Total Power(kw) | 105 | 183.5/198.5 | 242 | 364 | 670 | |
Capacity(t/h) | 1.5-6 | 3-12 | 5-15 | 6-25 | 20-45 | |
Weight(t) | 14 | 28 | 37 | 46 | 102 | |
Our service
‘Survival Rests on Quality, Service is the Source of Development’ is what we consistently live up to. Customer’s satisfaction is the momentum and foundation of our innovation. The high operation efficiency of the machines lies on the technical support of pre-sales and technical service after-sales. Hongcheng has a rich experienced, high technology service team with extensive sales-service network to provide our customers the most enthusiasm service and strong technical support worldwide.
Why choose us?
Guilin Hongcheng Mining Equipment Manufacture Co., Ltd. is a leading enterprise of powder processing equipment in China, is a professional supplier of powder processing integrated solution. Depending on the producing and researching experiences for decades, Guilin Hongcheng is able to offer high capacity, high efficiency, low cost and low pollution powder processing equipment for all of our customers.
At present, Hongcheng is entitled to a high fame in powder processing field. Our vision is to establish a global brand for China, we are holding the principle of Quality is the basement of survival, service is the source of development. The equipment and service of Guilin Hongcheng have been spread to Vietnam, Laos, Malaysia, Indonesia, Sultan, South Africa, Russia, Philippines, and, will be in your enterprise.
Contact us
If you are interested in our equipment, please send us an e-mail with the following table. Please tell us the information below so we can offer you a whole set of solution:
- The input material size and moisture.
- The output fineness size.
- The capacity per hour.
- Your contact information (phone number, e-mail address or both).
Please contact us with the following table, thank you!
↓↓↓
