80-400 mesh powder grinding machine product description:
The good choice for grinding about 280 kinds of nonflammable and non-explosive minerals of which Moh’s hardness is less than 9.3, moisture content is less than 6%, for example: active carbon, quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, Zircon, slag, granulating slag, cement clinker, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum, graphite.
80-400 mesh powder grinding machine working principle:
Firstly, raw active carbon is crushed by jaw crusher to the required size, which is lifted up to the hopper. Secondly, the raw active carbon goes into the grinding chamber through the electro-magnetic vibrating feeder at an even rate. Thirdly, the raw active carbon lifted by the shovel is ground into powder between the ring and roller. Fourthly, the active carbon powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
80-400 mesh powder grinding machine technical advantages:
1) The only professional producer of Raymond Mill in China for active carbon powder making machine.
2) Powder-saving and Higher Production Capacity (1-40T/H)
3) Smooth and Reliable Performance.
4) Fineness: 100—800 Mesh (Adjustable)
5) Run for 1000 hours without Lubrication
80-400 mesh powder grinding machine technical parameters:
- HC series:
Model | HC1000 | HC1300 | HC1460 | HC1700 | HC2000 | |
Roller | Number of Rollers | 3 | 4 | 4 | 5 | 5 |
Diameter(mm) | 320 | 410 | 460 | 510 | 620 | |
Height(mm) | 200 | 230 | 250 | 250 | 250 | |
Ring | Inner Diameter(mm) | 970 | 1270 | 1460 | 1700 | 2000 |
Height(mm) | 200 | 210 | 250 | 250 | 250 | |
Max. Feeding Size(mm) | ≤20 | ≤25 | ≤35 | ≤50 | ≤50 | |
Fineness(mm) | 0.015-0.18 | 0.044-0.18 | 0.022-0.18 | 0.022-0.18 | 0.022-0.18 | |
Total Power(kw) | 105 | 183.5/198.5 | 242 | 364 | 670 | |
Capacity(t/h) | 1.5-6 | 3-12 | 5-15 | 6-25 | 20-45 | |
Weight(t) | 14 | 28 | 37 | 46 | 102 | |
- R series:
Model | 2R2713 | 3R3220 | 4R3216/3218 | 5R4119/4121 | |
Roller | No. of Roller | 2 | 3 | 4 | 5 |
Diameter: (mm) | 270 | 320 | 320 | 410 | |
Height: (mm) | 130 | 200 | 160/180 | 190/210 | |
Ring | Inner Diameter: (mm) | 780 | 970 | 970 | 127 0 |
Height: (mm) | 130 | 200 | 160 | 190 | |
Max. Feeding Size (mm) | ≤15 | ≤20 | ≤20 | ≤25 | |
Fineness(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | |
Total Power (kw) | 42.5 | 87.5 | 87.5 | 172.5 | |
Capacity: (t/h) | 0.3-3 | 1-4.5 | 1-4.5 | 2-9 | |
Overall Dimension (L×W×H)(mm) | 5490×3875×5530 | 7464×5000×8345 | 7464×5000×8345 | 11345×6885×10330 | |
Weight: (t) | 5.5 | 14 | 14.2 | 28 | |

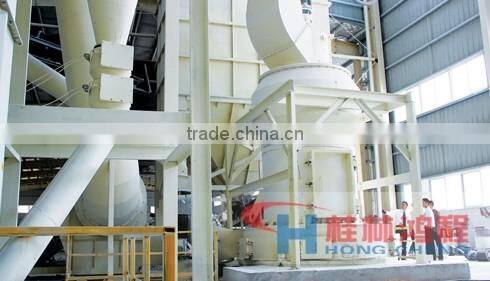

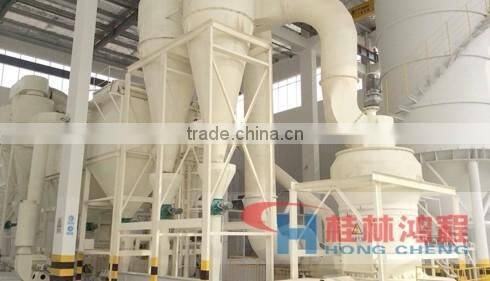

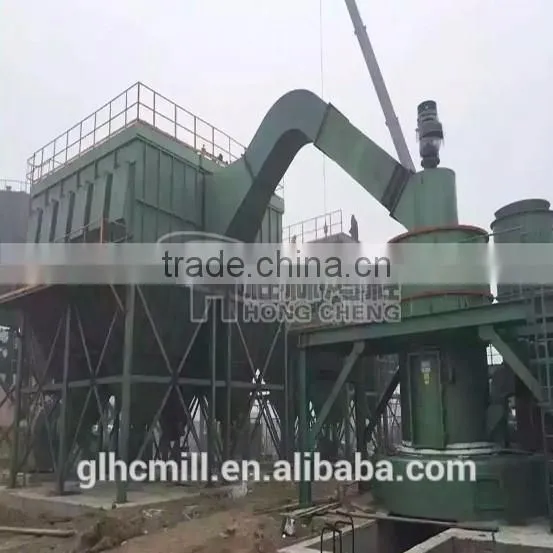

80-400 mesh powder grinding machine at site:
