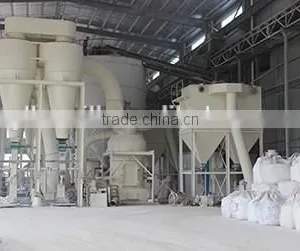

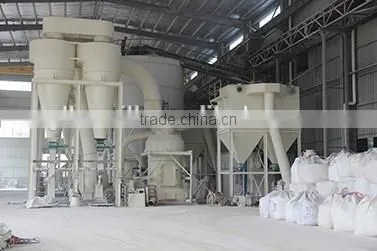

Help CenterEco-friendly Superfine Powder Making Raymond Mill Grinder Equipment
Related Products
-
Medical / Cosmetic Powder Making Equipment Raymond Grinding MillUS$ 10,000 - 600,000MOQ: 1 Set -
Micro Pharmaceutical Powderl Machine Raymond Grinding MillUS$ 10,000 - 600,000MOQ: 1 Set
-
Construction Powder Manufacture Production Line Grinding Machine for SaleUS$ 9,999 - 999,999MOQ: 1 Set
-
100--600 Mesh Power Plant Desulfuation MillUS$ 10,000 - 600,000MOQ: 1 Set
-
80-400 Mesh Powder Grinding Machine / Powder Grinding Machine / Grinding MilUS$ 10,000 - 80,000MOQ: 1 Set
Raymond Mill/Grinding Mill/Ultrafine Mill---China No.1 +2000 Case Plants in China
VERTICAL MILLS ARE AVAILIBLE FOR YOUR ENQUIRY.
Application of HC Super-micro Mill :
Also choice for nonflammable and non-explosive minerals of which Moh’s hardness is less than 9.3, moisture content is less than 6%, for example:quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, Zircon, slag, granulating slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum, graphite.
Working Principles of HC Super-micro Mill :
Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper. Secondly, the raw material goes into the grinding chamber through the electro-magnetic vibrating feeder at an even rate. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Advantages of HC Super-micro Mill :
1) The only professional producer of Raymond Mill in China.
2) Powder-saving and Higher Production Capacity (1-40T/H)
3) Smooth and Reliable Performance.
4) Fineness: 100—800 Mesh (Adjustable)
5) Run for 1000 hours without Lubrication
Technical Data of HC Super-micro Mill :
Model | 2R2713 | 3R3220 | 4R3216/3218 | 5R4119/4121 | |
Roller | No. of Roller | 2 | 3 | 4 | 5 |
Diameter: (mm) | 270 | 320 | 320 | 410 | |
Height: (mm) | 130 | 200 | 160/180 | 190/210 | |
Ring | Inner Diameter: (mm) | 780 | 970 | 970 | 127 0 |
Height: (mm) | 130 | 200 | 160 | 190 | |
Max. Feeding Size (mm) | ≤15 | ≤20 | ≤20 | ≤25 | |
Fineness(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | |
Total Power (kw) | 42.5 | 87.5 | 87.5 | 172.5 | |
Capacity: (t/h) | 0.3-3 | 1-4.5 | 1-4.5 | 2-9 | |
Overall Dimension (L×W×H)(mm) | 5490×3875×5530 | 7464×5000×8345 | 7464×5000×8345 | 11345×6885×10330 | |
Weight: (t) | 5.5 | 14 | 14.2 | 28 | |
Model | HC1000 | HC1300 | HC1460 | HC1700 | HC2000 | |
Roller | Number of Rollers | 3 | 4 | 4 | 5 | 5 |
Diameter(mm) | 320 | 410 | 460 | 510 | 620 | |
Height(mm) | 200 | 230 | 250 | 250 | 250 | |
Ring | Inner Diameter(mm) | 970 | 1270 | 1460 | 1700 | 2000 |
Height(mm) | 200 | 210 | 250 | 250 | 250 | |
Max. Feeding Size(mm) | ≤20 | ≤25 | ≤35 | ≤50 | ≤50 | |
Fineness(mm) | 0.015-0.18 | 0.044-0.18 | 0.022-0.18 | 0.022-0.18 | 0.022-0.18 | |
Total Power(kw) | 105 | 183.5/198.5 | 242 | 364 | 670 | |
Capacity(t/h) | 1.5-6 | 3-12 | 5-15 | 6-25 | 20-45 | |
Weight(t) | 14 | 28 | 37 | 46 | 102 | |
