Hot selling dog food pellet making extruder
- 1000 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card
- 2024 New Double color Popular extruding dog treats making machine pet chew food processing line
- Double color Popular extruding dog treats making machine pet chew food processing line
- 2024 popular Dry Wet Various shapes flavors dog food pellet making extruder machine food pet pellet feed processing line
- Popular extruding dog treats making machine pet chew food processing line
- 2024 Popular High Quality Single screw extruding dog treats making machine pet chew food processing line
- 2024 new design Dry Wet Various shapes flavors dog food pellet making extruder machine food pet pellet feed processing line
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Datong |
Model Number: | SLG90 | Application: | Other, Dog, pet feed, dog feed cat feed fish feed | Voltage: | 380V/50HZ |
Power(W): | 135kw | Weight: | 1500kg | Dimension(L*W*H): | 15000*1300*2400mm |
Certification: | CE ISO9001 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot selling dog food pellet making extruder
I. Description of dog food pellet making extruder
Hot selling dog food pellet making extruder adopts starch, wheat flour, skin, food additives to make the pet food by extrusion technology. It can make different shapes products such as strip, stick, twist, core filling and so on. By adjusting the formulations,we can meet different needs and nutrition requirements of the dog food machine.
1. Raw Materials: Starch, Wheat Flour, Food Additives
2. Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by Changing the Dies and Formulations
3. Capacity: 1000-2000kg/h

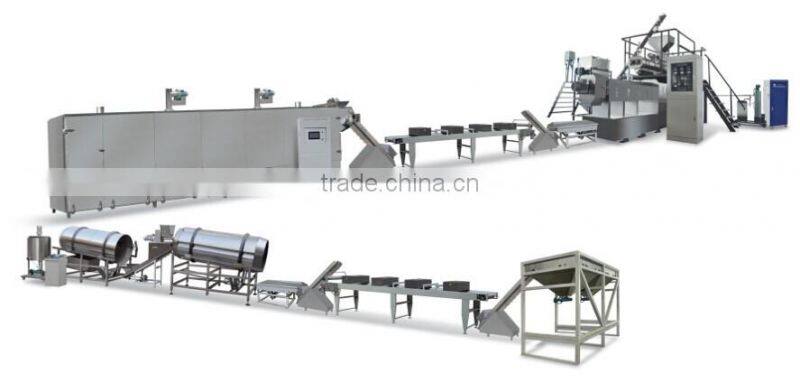

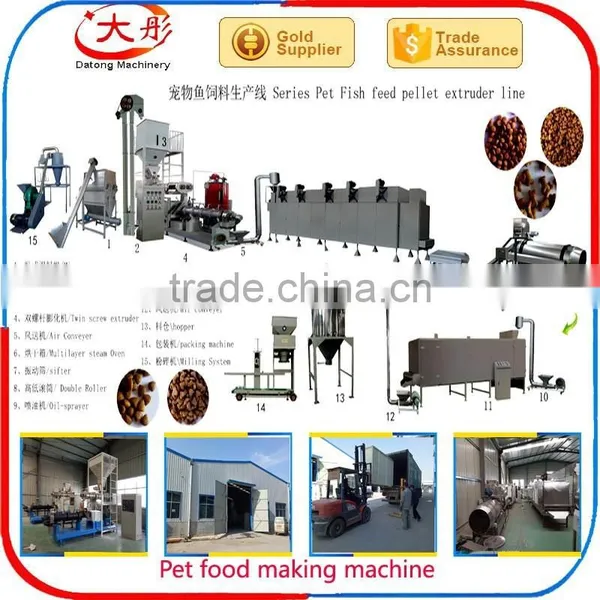

4. Flow Chart: Mixing -Extrusion -Cooling- Cutting- Drying
5. Voltage: Three phases: 380V/50HZ; Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.
II.Dog food processing extruder introduction
The dog food extruder is widely used for producing grains into high-grade aquatic feed pellets for pet like dog cat and fish, catfish, shrimps, crab etc.

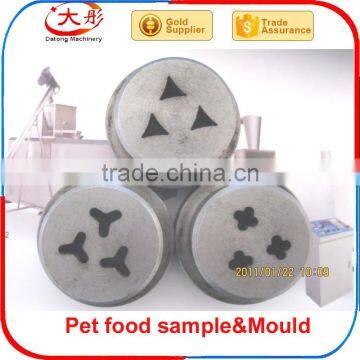

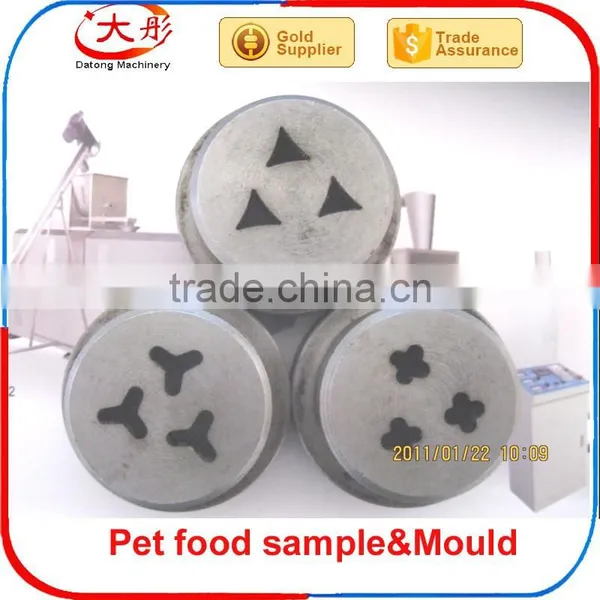

1).Pellet size from diameter 0.9mm-15mm just by changing the mould.
3).High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest and absorb.
4).The cutting device can make pellets of different length.
5).The machine also can make feed for pet with different shapes and we can customized the shape for you.
Blender & conveyer
1.Blender Main motor: 7.5kw
2.Size: 3000*1800*2950
3.Output: 800-1000kg/h
4. Operate easily and safety.
5.Screw Conveyer:1.1kw
It used to mix the raw material before material hopper.

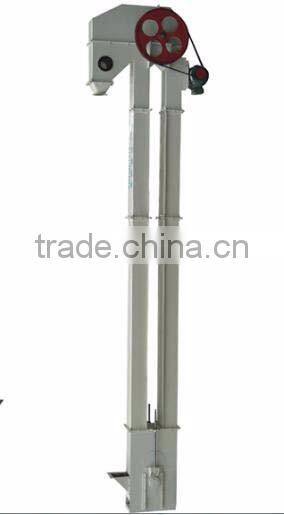

Elevator
1.Output: 1200-2000kg/h
2. Main motor: 2.2kw
3.Size: Depend on the hopper require.
4. Convey the material from mixer to hopper.
5.speed: 1.2m/second.
Hopper:
1.Size: 1.2×1.2×4.50m
2.This storage can store the raw material.It can make sure enough material for extruder.

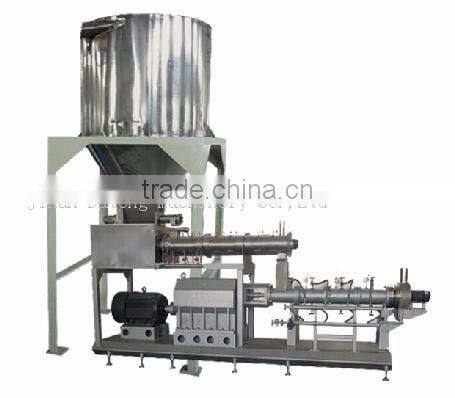

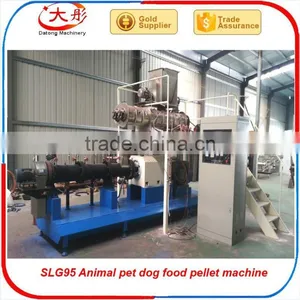

Double screw Pet food extruder:
1.Main motor power: 75.0kw Inverter speed controlling
2.Feeding power :2.2kw Inverter speed controlling
3.Cutting power 2.2 kw Inverter speed controlling
4.Gear box oil lubrication pump: 0.37kw
5.Capacity: 800-1000.00kg/h
6.Size : 5000*1150*2000
7.Conditioner: Manual Fill Knob,Automatic add water,feeding adopt frenquency sontrolling.

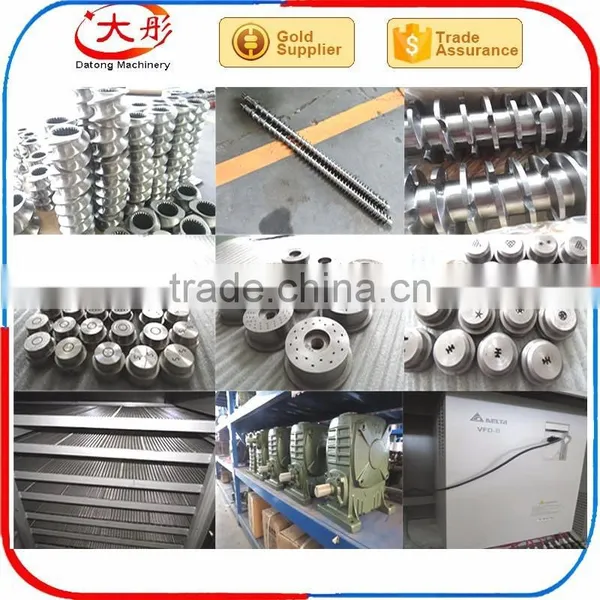

8.Screw diameter 95mm Machine weight: 4.5tons
9.Screw materials 38CroMnAl Barrel Steel 45#
Conditioner Features:
1. preface which touches raw materials is stainless.
2. Adopt import sprayer, water needed enter mixer in fog.
3. Water quantity is adjusted according to requirements at any time, in order to meet different technology and different raw material.
4. We may put in water or steam, apply is wide.
Air conveyer
1.Stainless steel for material touch place
2.Main Motor :5.5kw
3.Size2.5x0.5x4.0(m)
4. Convey the product from extruder to dryer.
Functions:
1.Air conveyor conveys the food relying on the wind-force from the blower.
2.It is more suitable for the long distance conveying.
Cooling box
Drive Power 0.75kw
Fan:1.98kw (total 9 fan)
Capacity:0-2000kg/h
Size:5000*560*1600mm
Stainless steel belt, belt width 1.0meter .

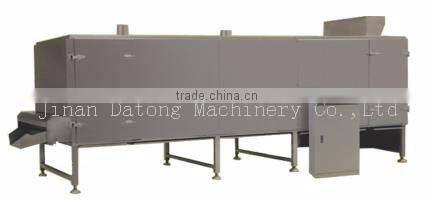

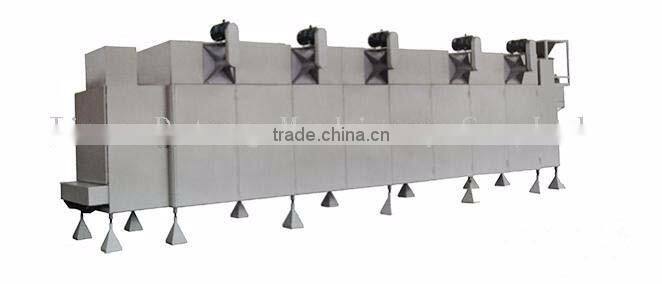

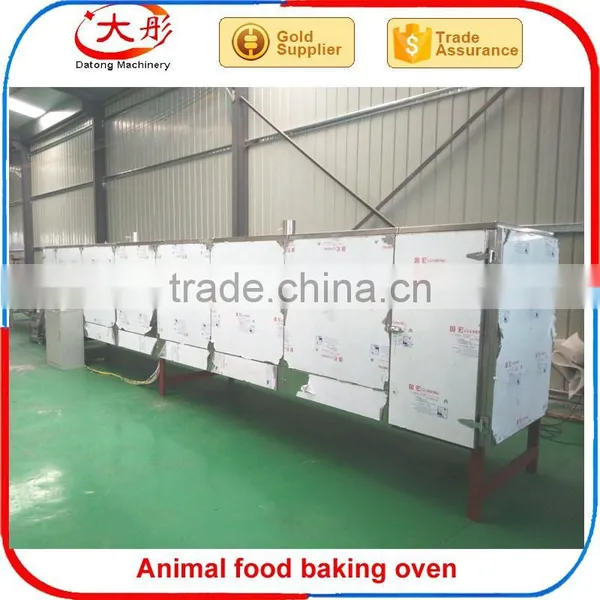

Steam dryer
Driving Motor:3.0kw(2 sets*1.5kw).
Air circulate motor:24.0kw(6sets).
exhaust fan :2.2kw.
Machine material:product touch net adopt stainless steel
Feed hopper parts adopt stainless steel
Size:11000×1500×3000mm
Oven surface adopt Stainless steel
Functions:
This Oven can be used to bake and dry the food. It can bake all kinds of the inflating food,pet food, TVP/TSP food, peanut, nut, chew nut and so on.
Hoister:
Food types PVC for material touch place.
Main Motor:1.5 kw Size:2.5x0.8x1.5 (m)
Convey the product from dryer to double roller.

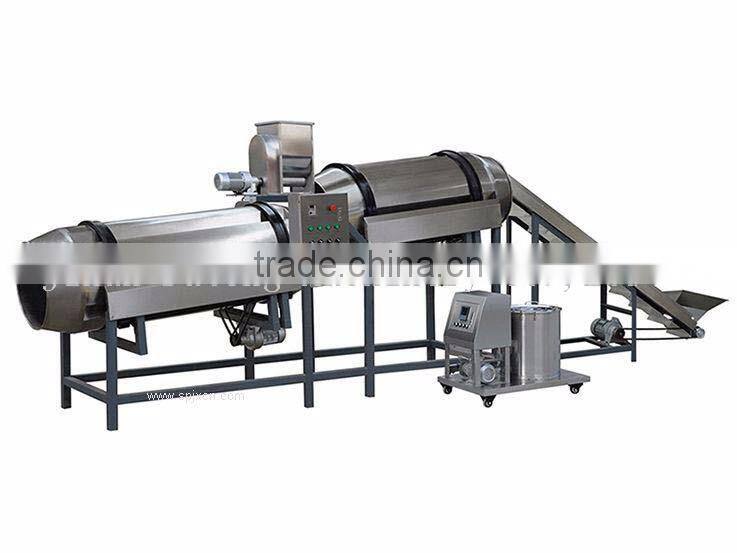

Flavouring part---double Drum:
Motor: 0.75kw
Material: stainless steel
Size: 2500*950*1600mm
Oil sprayer Function:
Motor: 0.37kw
Heating powder:6.0kw
Stainless steel
Air conveyer&Hopper
Air conveyer: 4.0kw
Size: 2.5*0.7*2.3m
Hopper sie: 1.5*1.8*2.0m
It can take the Pet food pellet to store it can make the packing machine working well,No need waiting enough pellet when packing.

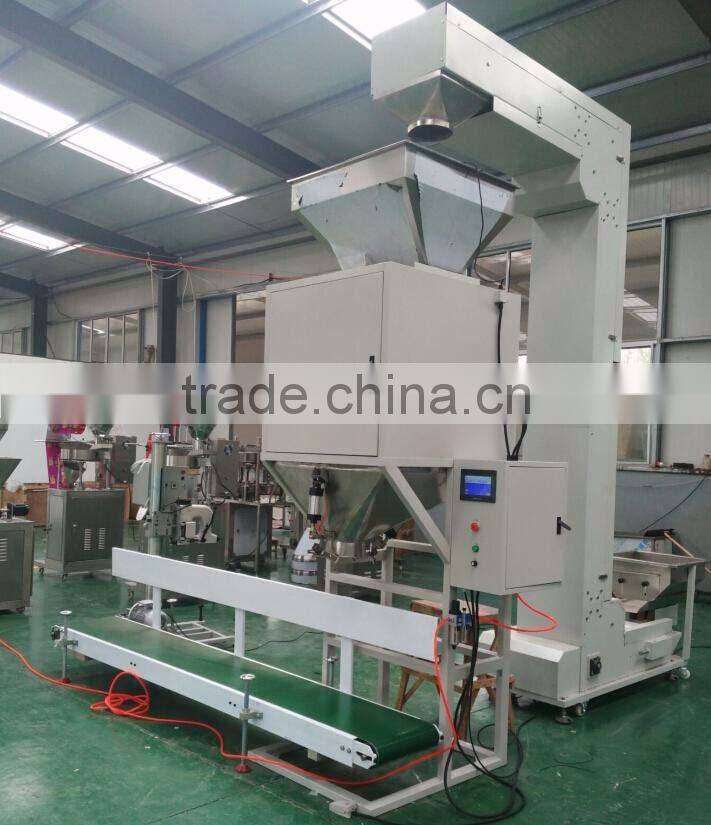

Z hoister&Packing machine
1.Stainless steel for material touch place
2.Main Motor :2.2kw
3.Size:3.0x0.6x6.0(m)
4. Convey the product from extruder to dryer.
Flowing Process:
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyer→Automatic bag sewing
Technical Parameter:
Type:BZJ
Weighting Range(kg): 15~20kg
Precisions: ±0.2%FS
Source(V/ Hz): 380 , 50, 3Phase, as per your needs
Air resource(Mpa): 0.4~0.6
Power(Kw): 2.2/3
1400×700×2800mm, subject to the real machine.
Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $50 daily subsidy per person.

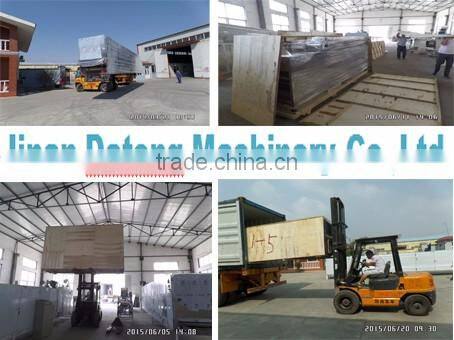

Packing: inside plastic bag, outside wooden case for core filling snack food puffed food making machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.

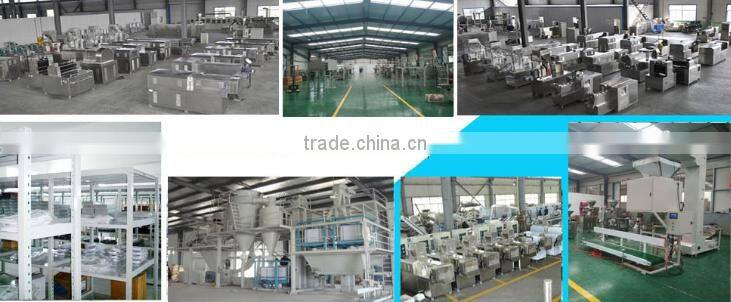

Welcome to visit Datong Extrusion Company!
Jinan Datong Extrusion Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.With our many years research and development extrusion technics has been widely used in more fields.
Our products consist of extrusion snack machine, twin screw food extruder, breakfast cereal and corn flakes machine, pet food machines and floating fish feed machinery,textured soya protein machine,modified starch machine, artificial rice making machine,bread crumb machine,single screw extruder,potato chips machine and biscuits machine, instant flour machine,flat bread machine,ect. We can also provide special design and product according to our clients` special requirements.
Now we have exported our machines to many countries, such as Malaysia, Indonesia. Pakistan, Sri Lanka, Brazil etc., and get good reputation from the clients. Some of them become our agents.
