1.Our Pet Food Making Machine Pet food Processing Line also may be referred to animal feed machine, pet food machine, shrimp feed extruder and so on, which is widely used for producing grains into high-grade aquatic feed pellets for:
A. Aquafeeds--- The fish feed pellet can make sinking fish feed pellets and other kind of aquatic feed .The fish feed pellet is 0.9-20mm size, you can choose the size you prefer.
B. Pet feeds---There have 9 shapes feed for your choosing, such as triangles, cross-shaped, square-shaped, feet shaped, large bone-shaped, small bone-shaped.All of these types feed pellet be made through changing the different shape molds.
2.Pet Food Making Machine Pet food Processing Line Raw materials:
All kinds of grains, such as bean, corn, wheat, etc. Some agricultural waste, such as rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially unformed materials.
Corn flour
bone meat powder
. Wheat flour
3.Pet food shapes/sample
As long as you change the extruder mould to get different shapes. like bone,heart,pellet,fish,traingle......
4.Pet Food Making Machine Pet food Processing Line process flow:
Raw material preparation→Mixing raw material→Conveying→Extrusion→Conveying→Drying→Screening→Oil spraying→Flavoring→Packing machine.

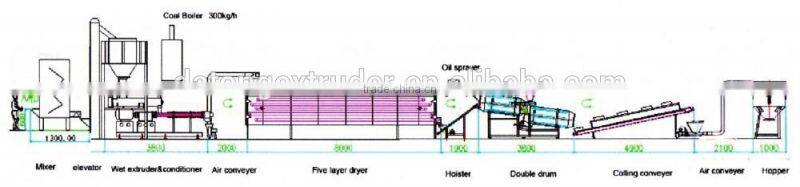

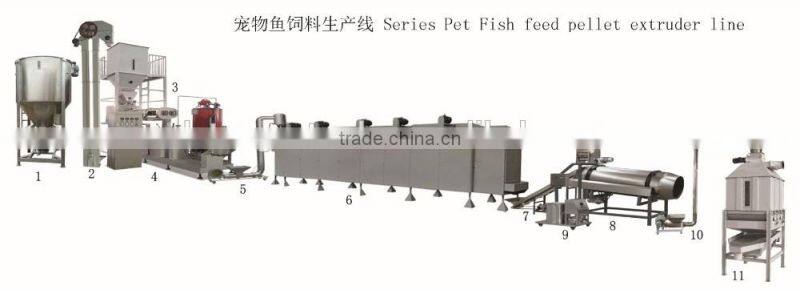

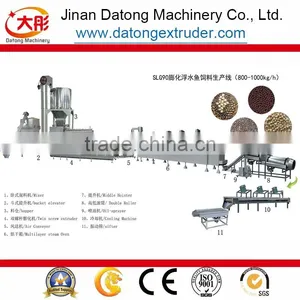

5.Pet Food Making Machine Pet food Processing Line setting:
Mixer→Conveyor→Extruder→Wind conveyor/hoister→Multi-layer dryer→Sifter→Hoister→Oil sprayer→Single/double roller→Packing machine
Double screw pet food machine
Installed Capacity:35.0kw
Drive Motor:30.0kw;
Feeding:1.5kw;
Oil-pump: 0.37kw;
Cutting: 1.5kw;
Output: 200-400kg/h
Dimension: 3000*850*1750mm

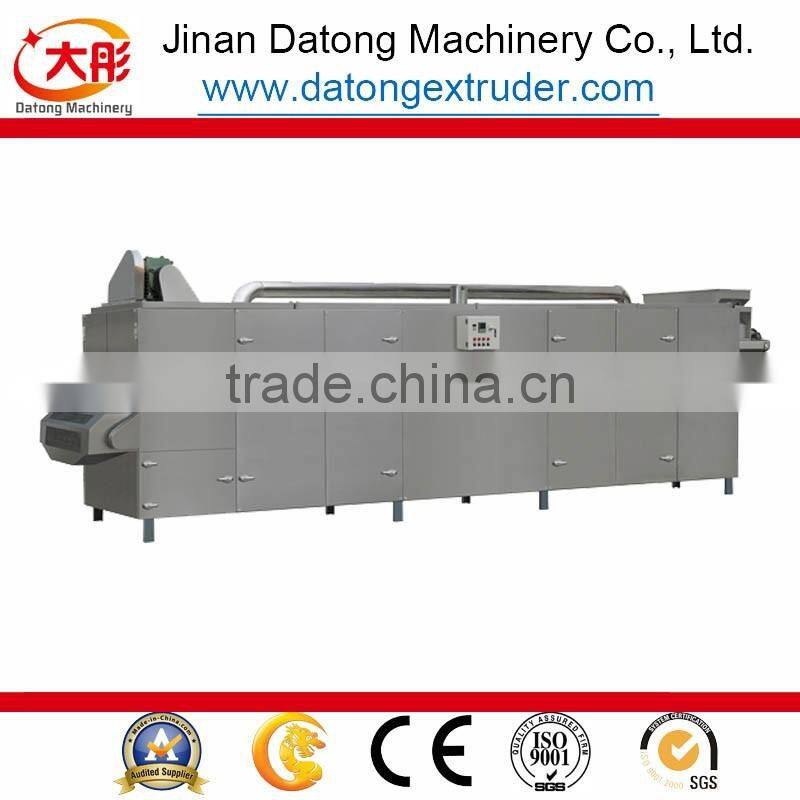

Dryer (electrical, steam, gas, diesel type):
1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°

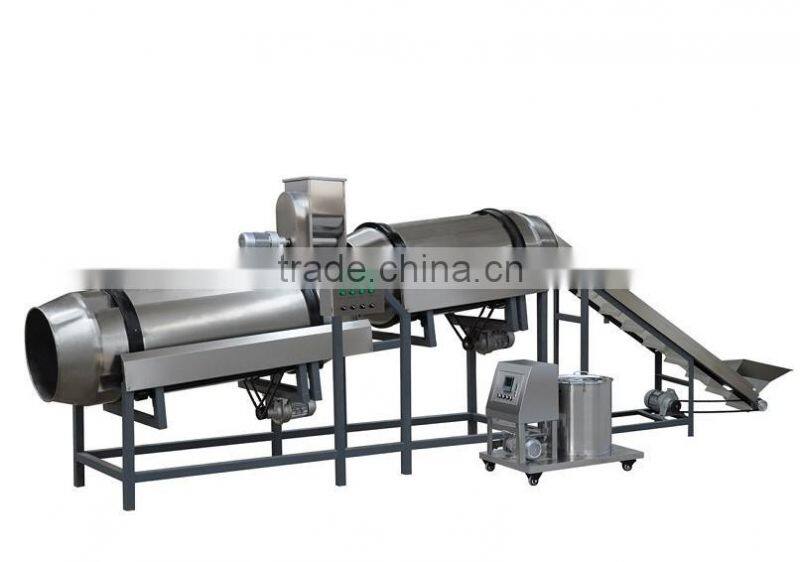

Flavoring system:
including hoister, flavors feed and rolling drum
1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.

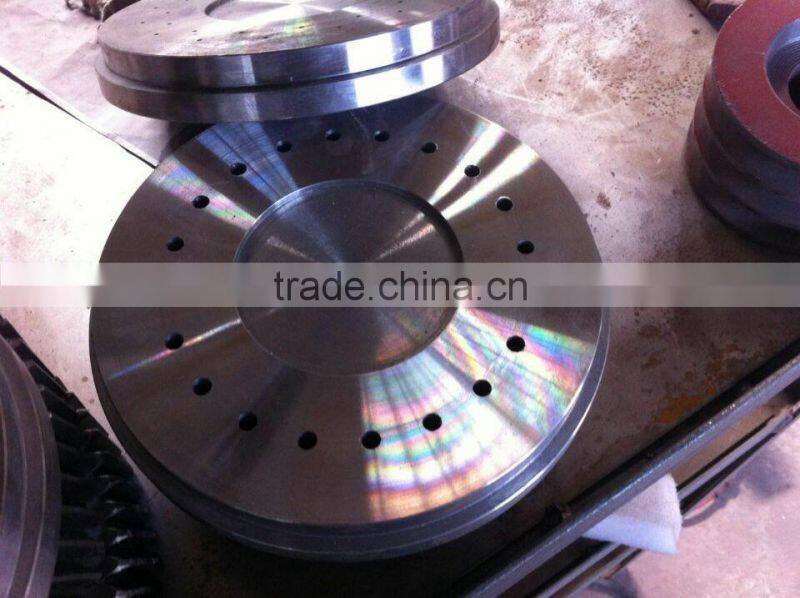

Food Mould.
1.We can change the final product size by the extruder mould.
2.We can design the moudl according to the customer require.
Extruder Cutting System:
1.Cutter speed can controlling
2.Inverter
3.wear-resisting
4.Change easily.
5.Adjust easily.
Packing machine with woodcase and plastic flim
Loading container in our factory
Packing: inside plastic bag, outside wooden case for Extruded Food Wheat Corn Snack Pellet Making Machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Extruded Food Wheat Corn Snack Pellet Making Machine.
