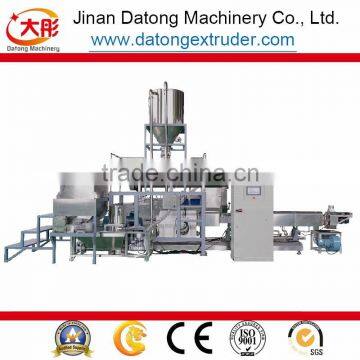

SLG100 steam animal food extruder

                      SLG95 steam animal food extruder

1.Floating fish feed machine can produce a premium quality special koi food, goldfish food, tropical fishes food, dog food, cat food, as well as laboratory dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented from customers. This fish feed machinery can do floating and sinking fish feed. fish feed machine, pet food machine, fish feedstuff machine, fish food machine.
2.Raw Material:corn flour,wheat flour,low temperature,soya flakes meal,rice ,wheat bran,annexing agent,etc.

3.Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
4.Features:
1.Datong Company fish feed extruder machine is used to produce the food with novel shape, particular taste and color.
2. Scientific nutrition combination catches up the trend of the market.
3. In this line, you will see the advanced technology of JINAN DATONG machinery. With simple operation, accurate parameter control, the products can be finished in the stipulated temperature, pressure, humidity and time.
4. Owing to the reasonable design, special materials ,the stability, repairs can be guaranteed and ensured.
5.The various shape and taste must meet the different requirements.

5.Fish food processing line Process chart:

Blender→elevator→Storage→Conditioner→Steam Fish food extruder→Air conveyer→Steam Dryer→Hoister→oil sprayer→Double Drum→Cooling conveyer→Sifter→Packing Machine.

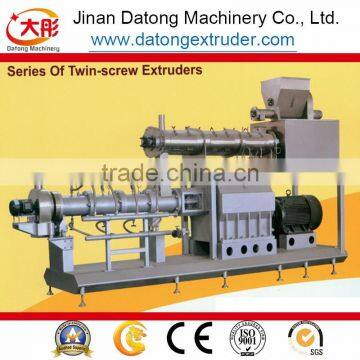

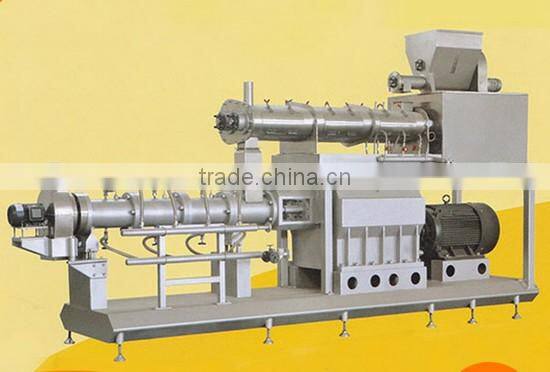

Double screw fish food extruder:

Pet food dryer(steam types)

Driving Motor：3kw（2 sets）.
Air circulate motor：27.5kw（5sets）.
exhaust fan ：2.2kw.
Heat Area：bigger than 400 square meters.
Steam press: more than 0.4mpa
Machine material：product touch net adopt stainless steel
Feed hopper parts adopt stainless steel
size：9000×1300×2200mm
Dryer surface adopt carbon steel
Functions:
This dryer can be used to bake and dry the food. It can bake all kinds of the inflating food,pet food, TVP/TSP food, peanut, nut, chew nut and so on.

Screw material:

Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°

Cutting System:

1.The blades is made of alloy steel,Very sharp.

2.It can cut the product easily.

3.Hardness material an used long time.

4.it can fix more cutter according require.

Feet pellet packing machine:

Flowing Process:
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyer→Automatic bag sewing
Technical Parameter:
 Type：BZJ
 Weighting Range(kg)： 15~30kg
 Precisions： ±0.2%FS
 Output： 100 bags/hour
 Source(V/ Hz)： 380 , 50, 3Phase, as per your needs
 Air resource(Mpa)： 0.4～0.6
 Power(Kw): 2.2/3
 Mainbody Dimension:
 1400×700×2800mm, subject to the real machine.

Conveyer&Blender:

1.Blender Main motor: 7.5kw
2.Size: 3.0×1.5×2.5(m)
3.Output: 800-1000kg/h
4. Operate easily and safety.
5.Screw Conveyer main motor:1.1kw

6.Two sharft inside which can mix materia well
It used to mix the raw material before extruder.

Elevator

1.Output: 1000-1500kg/h
2. Main motor:2.2kw
3.Size: Depend on the hopper require.1500*800*5600
4. Convey the material from mixer to hopper.

Raw material hopper

1.Size: 1.7×1.5×4.8m
2.The bottom with screw feeder to feed the ingredients at set speed.
3.The speed is regulated by inverter.
4.This storage can store the raw material.It can make sure enough material for extruder.
5.It can store about 800-1000 one time.
