Animal food pellet making machine/extruder machine
a. Raw Materials adopts wheat flour, rice flour, corn flour, defatted soy flour, fish meal and bone meal as raw main materials.
b. Capacity :80-150kg/h

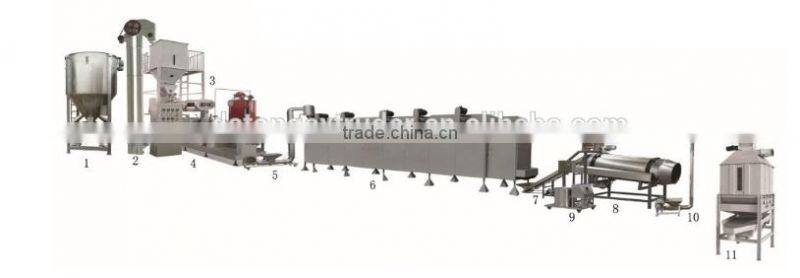

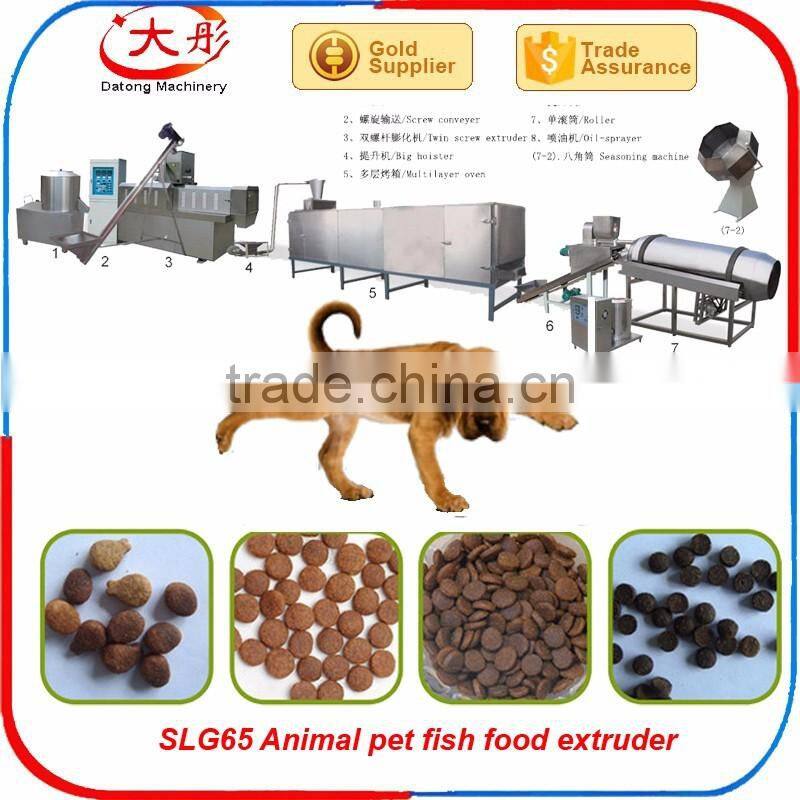

c. Flow chart :Mixing system---Pre-conditioner---Extrusion system----Steam drying system----Flavoring system---Packing system
d. Voltage in China three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
Name: Mixer
Brand: DATONG
Original: China
It is used to mix raw materials.We can supply different capacities to meet your demands: 30kg/batch,50kg/batch,100kg/batch and so on.
Name: screw conveyor
Brand: Datong
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.
Double screw food extruder Features:
Drive Motor:30kw
Feeding:0.75kw;Oil-pump:0.37kw;
Cutting:0.75kw;Output:200-240kg/h;
Dimendion；2600*950*1750mm
Main Features:
1.The main extruder motor,cutting motor adopts frequentcy speed controlling with high automation and stable per-formation.We can sdjust the motor speed according to our require easily,it can meet human safe level.
2.The screws are made of the alloy stell and special craft,durable usage ,high pressure,the screw can used long time .
3.This extruder have forced lubrication system,so that it can guarantee the equipment gear transmision and cooling the bearing.
4.Auto-temperature control system make the temperature aontrolling more direct viewing and the parameter more precise.
Name: Air conveyor
Brand: Datong
Original: China
Air conveyor is used to convey the produces to the dryer.It is suitable for long distance conveying.It has features of low consumption and high efficiency without leaking and pollution .
We will provide the most thoughtful services for our clients
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide free spare parts.
1.Packaging Specification
Outside Pachage:Wooden Packing as Exportand Standard.
2.Delivery time:
5-10days after received 40% of the whole payment.
3.About Shipping:
We can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China.
