Good Quality Pet Feed Extruder Making Machine Production Line

Good Quality Pet Feed Extruder Making Machine Production Line photo-1
Good Quality Pet Feed Extruder Making Machine Production Line photo-2
Good Quality Pet Feed Extruder Making Machine Production Line photo-3
Good Quality Pet Feed Extruder Making Machine Production Line photo-4

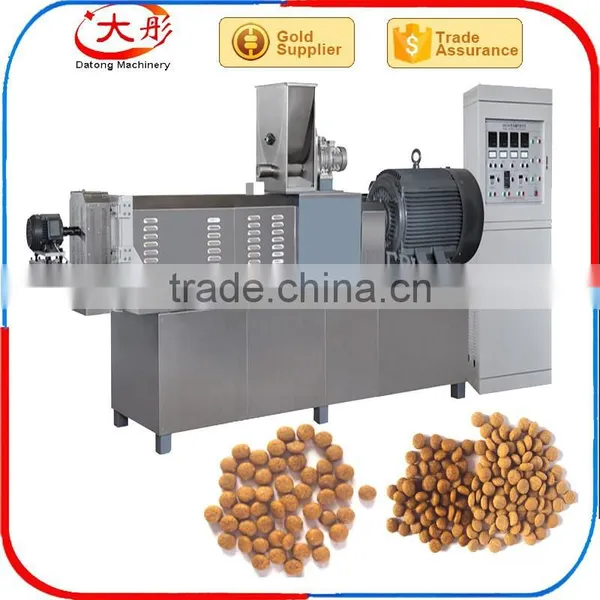

Good Quality Pet Feed Extruder Making Machine Production Line photo-5
Good Quality Pet Feed Extruder Making Machine Production Line photo-6
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Datong, DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Datong, DATONG
Model Number SLG65/70/85
Application Other, pet dog etc
Voltage 220V/380V
Power(W) 100kw
Weight 2000kg
Dimension(L*W*H) 19000*2000*2200mm
Certification CE ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

                                     Good quality pet feed extruder making machine production line

1.The introduction of Machine
(1) The pet feed extruder and pet feed making machine is researched and developed by our Datong company based on the foreign advanced technology.This processing machinery is suitable for the pet food,dog food,cat food and fish feed and shrimp food.
(2) The pet food generally consists of meat,cereals,grain,vitamins and minerals.The general grains,such as soyabean meal,corn meal,cracked wheat,and barley,are ofen used to improve the consistency of the products.
2.Mechanical principles :

Certifications
Detailed Images

Mixer

1.Main motor :4.0Kw
2.Size:1.2*0.9*1.4m
3.Output:30kg-4.0kg/time
Functions:
Mixer makes the raw material which adding water and liquid chemical additive fully mixer equally.the machine mixees the flour and prepares them ready to be used in the next step.


Name: screw conveyor
Brand: Datong
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.

Double screw food extruder Features:

Installed Capacity:45.87kw
Drive Motor:30kw
Feeding:0.75kw;Oil-pump:0.37kw;
Cutting:0.75kw;Output:200-240kg/h;
Dimendion;2600*950*1750mm
Main Features:
1.The main extruder motor,cutting motor adopts frequentcy speed controlling with high automation and stable per-formation.We can sdjust the motor speed according to our require easily,it can meet human safe level.
2.The screws are made of the alloy stell and special craft,durable usage ,high pressure,the screw can used long time .
3.This extruder have forced lubrication system,so that it can guarantee the equipment gear transmision and cooling the bearing.
4.Auto-temperature control system make the temperature aontrolling more direct viewing and the parameter more precise.

Flavouring System

Output:100-1000kg/h
Size:3.9*0.7*1.3m
Main power:1.5kw
1.The inside turning container is very sanitary because of adopting the stainless steel material.The small roller is used for the small output whereas the big roller is used for the plentiful output.
2.We can spray the oil and sprinkle flavoring material in this .First drum,we can flavoring products automatically.This drum is easy to operate it and easy to clean it after day work.

Machine Parts: dryer

1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, soybean protein, etc.

Our Service
Packing & Delivery

1.Packaging Specification
Outside Pachage:Wooden Packing as Exportand Standard.
2.Delivery time:
5-10days after received 40% of the whole payment.
3.About Shipping:
We can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China.
