Hot Sale Pet Feed Pellet Extruder Making Machine Production Line

Hot sale pet feed pellet extruder making machine production line

This pet feed extruder prodution line is specially designed to produce  healthy dog food , cat food ,fish food ,also pet  feed for every kind of animals. Normally using grains powder as main material, mixing with meat, bones powder, fish powder as a flavoring .Pet feed extruder machine through adopting pre-conditioning system for raw material, it can increase capacity and reduce power consumption. This line would satisfy different demands for capacity and quality. At the same time, we focus on palatability and scientific nutritional proportion, which make pet food pellet more easily digested and absorbed. On base of this pet feed  extruder machine, we would like to reach a multi-level and comprehensive cooperation with every client in this trade.

1.The line is simple to operate , easy to learn and easy to understand .it is an ideal choice for the manufacturers.
2.Capacity: 150kg/h, 240kg/h, 500kg/h 800kg/h 1000kg/h 2000kg/h

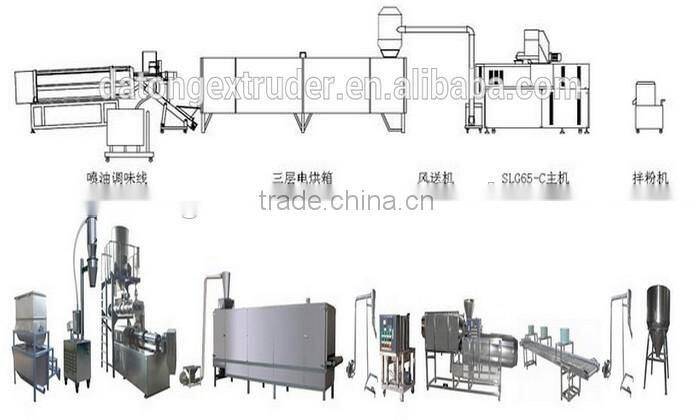

3.Flow chart:Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
4.Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
5.Machines materials:
All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
6.Technical Parameters

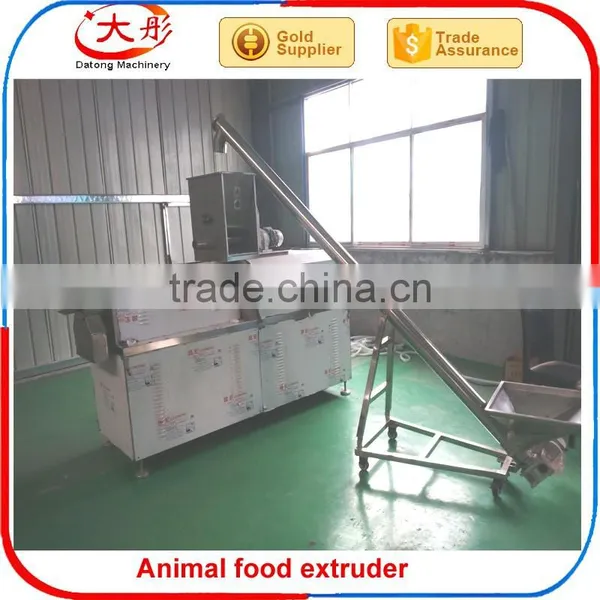

Name: screw conveyor
Brand: Datong
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.

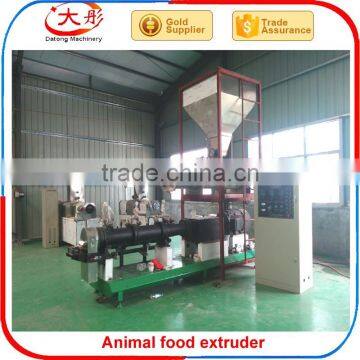

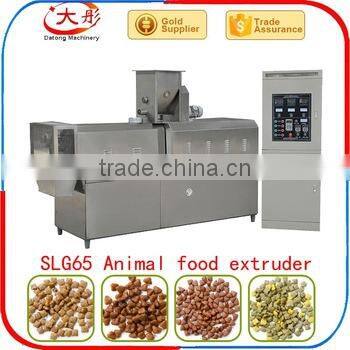

Name: Extruder
Brand: Datong
Original: China
we can supply your different models extruder according to your targer capacity.With a same extruder,you can produce different shapes of snacks by changing different moulds.

Name: Air conveyor
Brand: Datong
Original: China
Air conveyor is used to convey the produces to the dryer.It is suitable for long distance conveying.It has features of low consumption and high efficiency without leaking and pollution .

Name: Multi-layer dryer
Brand: Datong
Original: China
we can supply dryers of different heating ways,such as steam,electric,diesel,gas etc.We can customize the multi-layer dryer extruder according to your specific requirments.

Hoister:
Food types PVC for material touch place.
Main Motor:1.2kw
Size:2.0x0.5x2.8 (m)
Convey the product from dryer to double roller.

Flavouring System
Output:100-1000kg/h

Size:3.9*0.7*1.3m
Main power:1.5kw

Screw Parameter:

Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Wear sleeve and screw sleeve are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life.
