Core Filling Puff Snacks Food Making Machine Processing Line

1.Core Filling Puff Snacks Food Making Machine details:

1.Filled puffed snacks are directly expanded snacks co-extruded with creamy and sweet pastes. They are particularly innovative and easily adaptable to meet changing consumer demand.
2.A typical co-extrusion processing line includes mixing and oil spraying systems, a twin-screw extruder at the heart of the process and shaping equipment. Drying, coating and cooling devices are then used accordingly.
3.Extruded flakes can also be made on the same lines with complementary equipment.
2.Ingredient flexibility to process a wide variety of :
1.Outer parts with various materials : wheat, rice, corn, whole grain etc.
2.Fillings : chocolate flavors, jellies, fruit pastes, honey, yoghurt, etc.
3.Shapes : pillows, tubes, bars, triangles, nuts, balls, long and short ovals and specialty profiles, etc.

4.Expertly crafted co-extrusion dies with optimized flow design.

 5. The Core Filling Puff Snacks Food Making Machine  list:

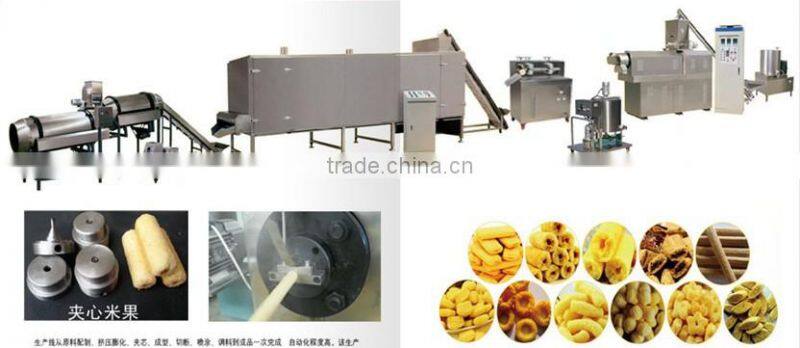

Mixer→ Screw conveyor → Twin screw extruder→ Core filling machine→ Shaping and cutting machine→ Air conveyor(Hoister)→ Electric dryer → Hoister → Oil Sprayer→ Flavoring roller(drum) → Cooling conveyor

3.Machine Parameter&Processing Chart:

4.Core Filling Puff Snacks Food Making Machine Main Features:

1) Raw materials: corn,rice,wheat,oat,barley etc.
2) products shape: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel, flower, star and heart
shape by adjusting the mould in the extruder, can custom-made the shape
3) Easily to operater the whole line. Only need three workers to control the processing line
4) Low power consumption
5) Long life and cheap spare parts.

5.Product Certificate:

6.Install drawing for Core Filled Snack Food Processing Line:

7.Core Filled Snack Food Processing Line  Features:

1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
3.The gearbox has automatic lubrication function, with extends gear life.
4. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
5. Barrel with water-cooled circulation, it makes extruder can be used not only for corn/rice, also for wheat flour/starch which are raw materials with high viscosity. Through different moisture-extrusion temperature ratio, it can make whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

Raw material Mixer:

1.Main motor: 4.0kw

2. Size: 1.2×0.9×1.4(m)
3. Output: 30kg-40kg/time
Functions:
Mixer makes the raw material which adding water and liquid chemical additive fully mixed equally. the machine mixes the flour and prepares them ready to be used in the next step.

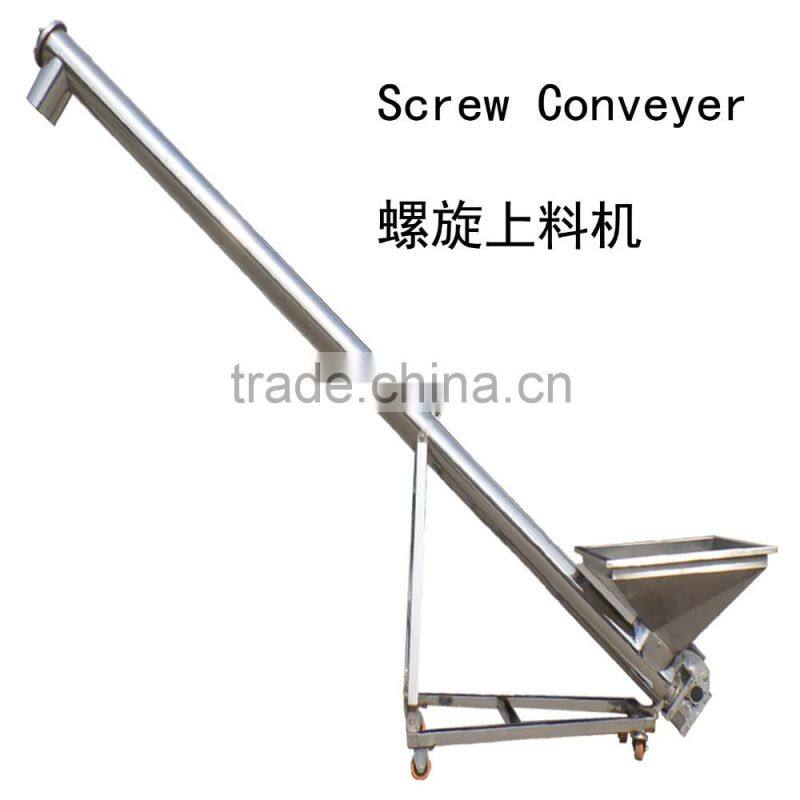

Screw Conveyer:

Output: 0-150kg/h

 Main motor:1.1kw

Size: 2500*600*2300mm
Function:
Screw conveyor can not only convey on the level but also by any angel these materials can be conveyed in the stainless steel roller without leaking, dust pollution.

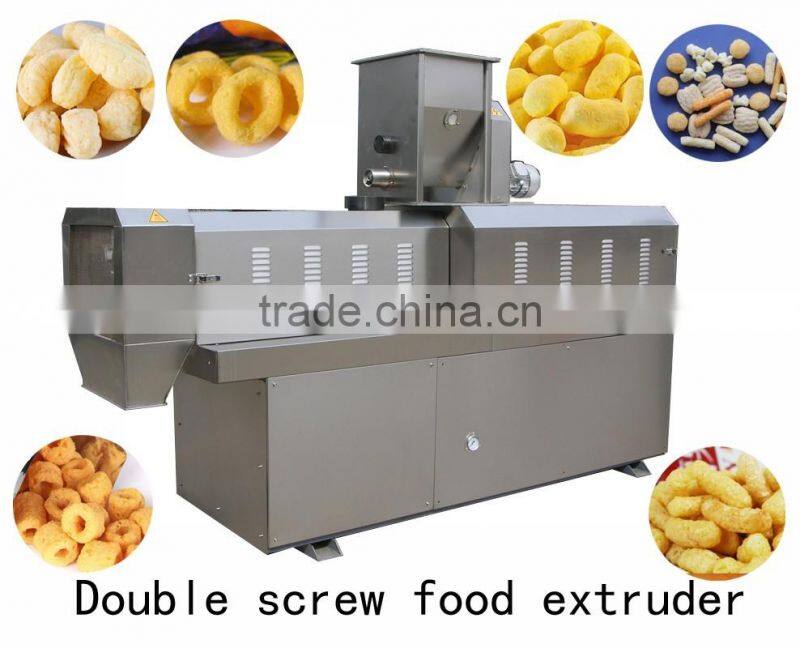

Double Screw Extruder:

Installed Capacity:45.87kw Drive Motor:30kw;
Feeding:0.75kw; Oil-pump: 0.37kw;
Cutting: 0.75kw; Output: 200-240kg/h
Dimension: 2600*950*1750mm
Main Features：
1.The main extruder motor,cutting motor adopts frequency speed controlling with high automation and stable per-formation.we can adjust the motor speec according to our require easily, it can meet human safe level.
2. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer,adopt 38CrMnAl.the screw can used long time.
3. This extruder have forced lubrication system, so that it can guarantee the equipment gear transmission and cooling the bearing
4.Auto-temperature control system make the temperature controlling more direct viewing and the parameter more precise.
5.This extruder have Self-cleaning, when stopping, it can be cleaned without disassembling.No need to take out the twin screw to clean it.
6.SLG Series Double screw Extruder is mainly composed by the following parts,evry part paly different role:
A Feeding System B Extruding System
C Cutting System D Heating System
E Lubrication System F Driving System
G Electricity Control System

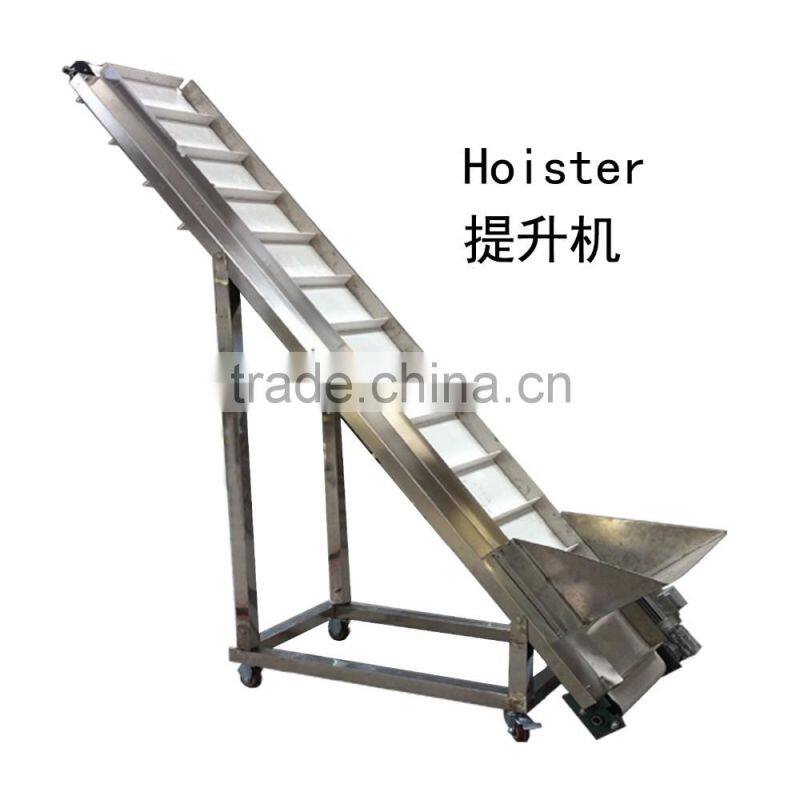

Hoister:

Food types PVC for material touch place.

Main Motor:1.2kw

Size:2.0x0.5x2.8 (m)

Convey the product from dryer to double roller.

Electricity Dryer:

1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, Fish food, soybean protein, etc.

Flavouring System:

Output:100-250kg/h

Size:3.9x0.7x1.3(m)

Mian power: 1.5kw
1.The inside turning container is very sanitary because of adopting the stainless steel material. The small roller is used for the small output whereas the big roller is used for the plentiful output.
2.we can spray the oil and sprinkle flavoring material in this First drum,we can flavoring products automatically.this drum is easy to operate it.and easy to clean it after day work.

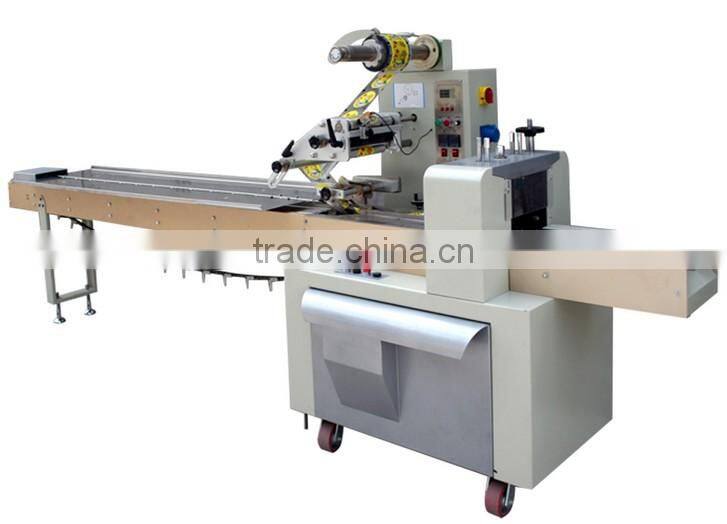

Pillow Packing Machine：

1. Performance and structural characteristics
*Advanced dual frequency control, flexible to control the length of bag, saving time and film.
*Manual operation machine, convenient and quick parameter setting
*Fault self diagnosis function, clear failure display.
*The digital input of the high precision photoelectric tracking system, sealing and cutting more precise, .
*The independent PID temperature control, suitable for all kinds of packaging materials.
*The positioning stop function, non stick knives, do not waste film.
2. Packaging range
Applicable to the towel, facial tissue paper, medicine, Chicken rolls, noodles, fish, sausage,
popsicle, candy, cookies, fruit and other soft, strip or irregular goods packaging.
