High Quality Corn Puff Snack Extruder Making Machine

Product Application

puff snacks food machineadopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
2. Snacks Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
3. Snacks food Products shapes:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4.puff snacks food machine Capacity:
60-80kg/h 100-150kg/h, 200-240kg/h, 500kg/h 800kg/h
5. puff snack making machine Flow chart:

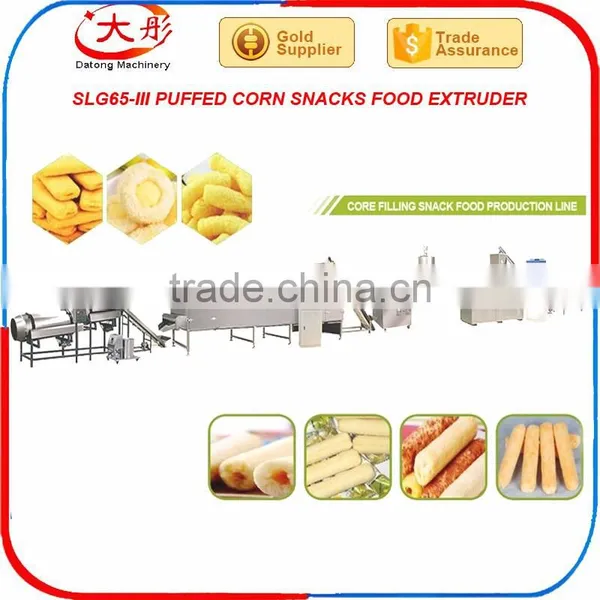

Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6. China standard industrial Voltage for the machine:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

Name: Mixer
Brand: Datong
Original: China
It is used to mix raw materials.We can supply different capacities to meet your demands: 30kg/batch,50kg/batch,100kg/batch and so on.

Main Features

Name: screw conveyor
Brand: Datong
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.

Machine Parts

Double screw food extruder Features:
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.

Main Features: dryer

1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, soybean protein, etc.
