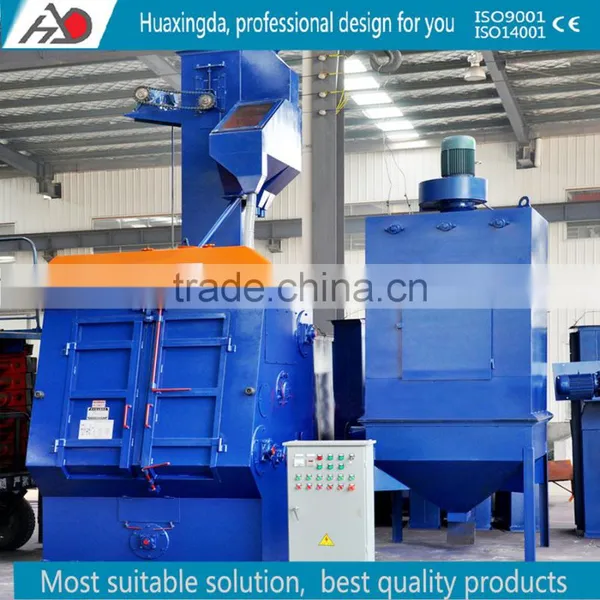

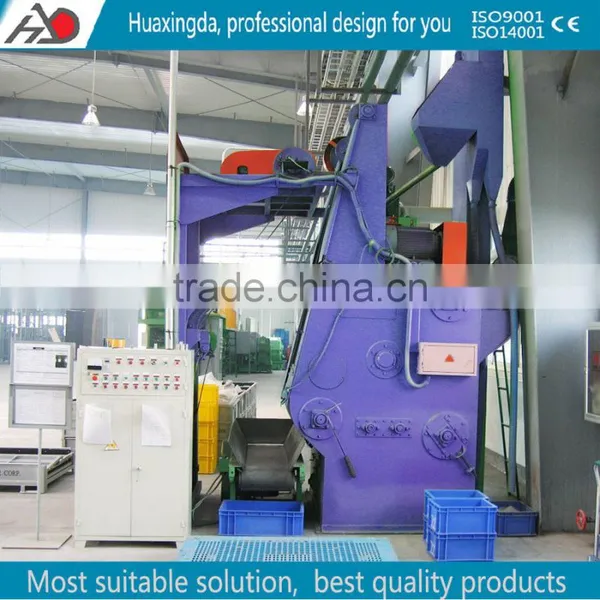

Help CenterQR3210 High Efficiency and Quality Assurance Tumble Belt Shot Blast Cleaning Machine
Related Products
-
QC37200C Buffing Dust-free Oil Tank Shot Blasting Machine for Large Size WorkpieceUS$ 211,500 - 325,000MOQ: 1 Set -
Q3710 Series China Supplier Offer Hanger Type Shot Blasting Machine for Casting IronUS$ 5,800 - 6,500MOQ: 1 Set
-
China Supplier Offer Portable Drum Type Shot Blasting MachineUS$ 4,900 - 5,200MOQ: 1 Set
-
Q31 Series Basic Customized/non-standard Drum Shot Blasting MachineUS$ 4,950 - 5,100MOQ: 1 Set
-
Q326EA High Efficiency Tumble Belt Shot Blast Cleaning Machine for Polishing Small CastingsUS$ 22,000 - 26,000MOQ: 1 Set
Rubbler belt
Blast wheel wear parts service time:
blast wheel ware parts:
Specification:
No. |
item |
Q326EA |
QR3210 |
1 |
productivity |
0.6-1.2 |
2-2.2 |
2 |
feeding amount |
200 |
600 |
3 |
maximum weight of single piece |
10 |
30 |
4 |
diameter of end disk |
Φ 650 |
Φ 1000 |
5 |
effective volume |
0.15 |
0.3 |
6 |
abrasive flow rate |
120 |
250 |
7 |
ventilation capacity |
2000 |
3500 |
8 |
power consumption |
12.6 |
24.3 |
9 |
outline dimesion |
1500*1880*3900 |
3976*2600*4768 |
10 |
Crawler material |
rubber |
rubber |
We offer two distinct categories of Tumblast or tumble blast machine. Batch Type Tumblast machines process parts batch by batch, in a stop-start operation, and Continuous Tumblast machines pass the parts through the machine and onto the next process in the operation.
This series are the optimum solution for descaling, sand removing,
roughening and deburring of bulk goods.
the workpiece loading capacity from 200kg to 3500kg.
• 1 to 2 blast wheel is optional according your requirement of efficiency.
• automatic control via PLC is also optional, to detect the abrasive jam in bucket elevator or other conveyor.
• Hydraulic, cable, or soft loading
• High life time by material optimization and by use of management.
load automatically option:
The following applications can be undertaken:
• Desanding and decoring of casting
• Descaling of castings, forgings and heat treated parts
• Shot peening (without process security)
• Deburring of plastic and rubber parts
tumlast machine Q32 Series are used for bulk, tumble proof material. The product range includes a comprehensive range of machines for desanding and decoring castings and for descaling forgings or heat-treated work pieces. The work pieces are continuously tumbled during the blasting process. our expertise in this field enables the development of customized solutions which can include automatic loading/unloading of work pieces and removal of abrasive residues from the part.
Q326C tumble type shot blasting machine
Belt driving blast wheel
