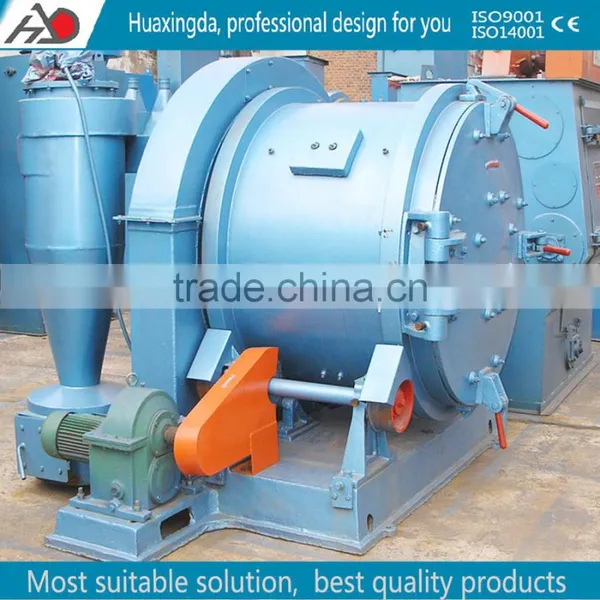

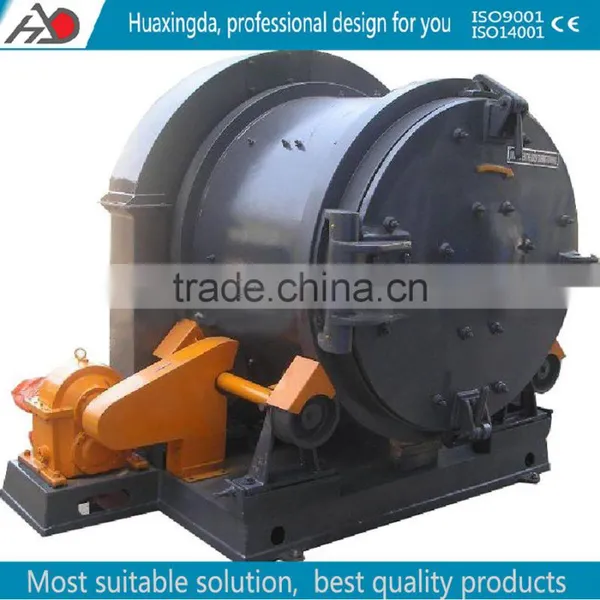

Q31 Series Small Metal Parts Rolling Drum Shot Blaster
The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many v
arieties.Put the work pieces into the barrel and blasting it in side way.
The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the
greensand or scaleson the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work
pieces whose weight are under 15g in medium or small-scale casting or forging workshops.
specification
NO |
Item |
Q3110BⅠ |
Q3110BⅡ |
Q3113BⅠ |
Q3113B Ⅱ |
1 |
Drum diameter |
1000 mm |
1000 mm |
1300 mm |
1300 mm |
2 |
Loading capacity |
300 kg |
300 kg |
600 kg |
600 kg |
3 |
Productivity |
600-1500 kg/h |
600-1500 kg/h |
2500-3500 kg/h |
2500-3500 kg/h |
4 |
Power supply |
9.7 KW |
11.9 KW |
14.5 KW |
16.3 KW |
5 |
Max. weight of workpiece |
15 kg |
15 kg |
30 kg |
30 kg |
6 |
Drum rotating speed |
3 r/min |
3 r/min |
2.5 r/min |
2.5 r/min |
7 |
Abrasive flow rate |
120 kg/min |
120 kg/min |
160 kg/min |
160 kg/min |
8 |
Ventilation capacity |
800 CBM/hour |
2000 CBM/hour |
2800 CBM/hour |
2800 CBM/hour |
9 |
Outline dimension |
2078*2458*1861mm |
3870*2458*3370mm |
2550*2341*2250mm |
4362*2341*2250mm |
casting iron base
not meldment
we have two type of material for drum liner:
special casting iron liner wear resistant rubber liner
drum blaster liner
Q3110BII
dust ventilation rate 2000CBM/Hr
