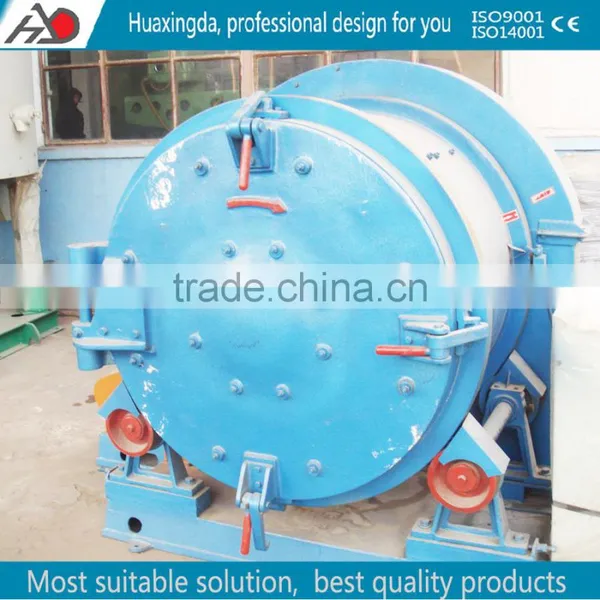

Q31 Series Basic Customized/non-standard Drum Shot Blasting Machine

US$ 4,950 - 5,100 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HXD

Qingdao Huaxingda Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HXD

Model Number Q3110BI

Feature Critical Cleaning / Residue Free

Fuel Electric

Certification CB, CE

Use Descaling / Stripping

Cleaning Process Other, steel shot ,steel grit

Cleaning Type Clean-In-Place (CIP)

Industry Used Other, foundry

Material Metal / Coil

Power(W) 9700

Dimension(L*W*H) 2078*2458*1861

After-sales Service Provided No overseas service provided

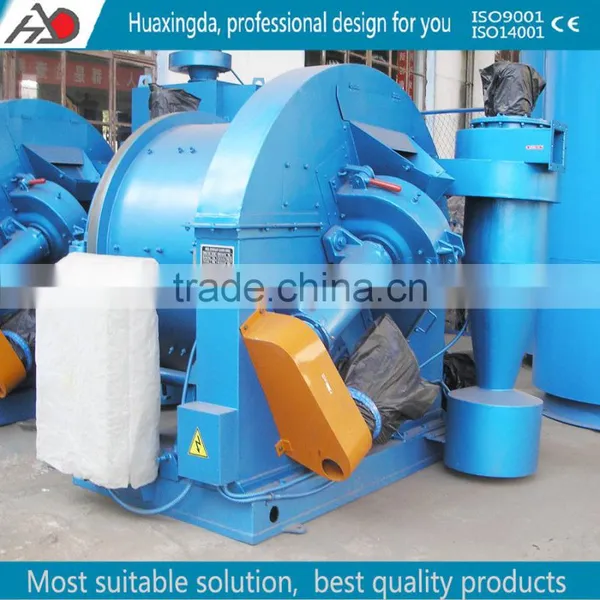

Q31 Series Small Metal Parts Rolling Drum Shot Blaster

The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many v

arieties.Put the work pieces into the barrel and blasting it in side way.

The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the

greensand or scaleson the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work

pieces whose weight are under 15g in medium or small-scale casting or forging workshops.

specification

Serial number	Type Item		Q3113BI	Q3113BII	Q3110BI	Q3110BII
1	Diameter of rolling drum	mm	Φ1300	Φ1300	Φ1000	Φ1000
2	Loading capacity	kg	600	600	300	300
3	Productivity	kg/h	2500-3500	2500-3500	600-1500	600-1500
4	Power(excluding dedusting)	Kw	14.5	16.3	9.7	11.9
5	Maximum weight of workpiece	kg	30	30	15	15
6	Rotational speed of rolling drum	r/min	2.5	2.5	3	3
7	Abrasive flow rate	kg/min	160	160	120	120
8	Ventilation capacity	m3/h	2000	2800	800	2000
9	Dedusting efficiency	%	85	99	85	99
10	Outline dimensions	mm	255023412250	436223412250	207824581861	387024583370
