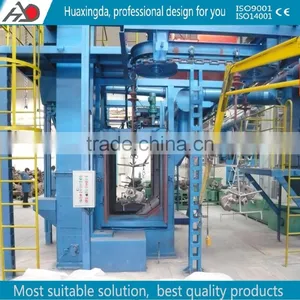

Help CenterQ385 Overhead Conveyor Chain Shot Blasting Machine Cleaning Equipments for Big Quantity Workpiece
Related Products
-
Q376F Hanger Type Shot Blasting Machine for Lage and Smal CastingUS$ 5,800 - 6,650MOQ: 1 Set -
Q3110BII Series Top Quality Continuous and Reliable Rolling Drum Type Shot Blasting Machine and Wear PartsUS$ 4,950 - 5,100MOQ: 1 Set
-
Q37 Series Price Favorable Hanger Type Shot Blasting Machine China Supplier Hot SaleUS$ 5,800 - 6,500MOQ: 1 Set
-
QR3210 Automatic Loading System Tumble Belt Shot Blast Cleaning MachineUS$ 22,000 - 26,000MOQ: 1 Set
-
Catenary Stepping Overhead Conveyor Chain Shot Blasting Machine by China Supplier OfferUS$ 45,600 - 46,650MOQ: 1 Set
Features:
1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
specification
5.Overhead chain is running continuously. operator should hang the job to following the chain timely.
NO. | Name | Q383F | Q383C | Q384C | Q385 |
1 | Productivity (hook / h) | 38 | 38,49,50,65 | 70,80 | 75 |
2 | Running speed chain hoists(m/min) | 0.8-2.6 | 0.5,0.65 | 0.8,0.93 | 0.65 |
3 | Single hook hoists(Kg) | 100 | 300 | 400 | 500 |
4 | Hanging from mm | 800 | 600,800 | 800 | 800 |
5 | Quantity of shot blasting(Kg/min) | 125*6 | 250*4 | 250*6 | 250*50 |
6 | The amount of dust wind(m/3h) | 20000 | 18000 | 26500 | 23700 |
7 | Cleanup workpiece size(mm) | φ400*800 | φ500*1200 | φ700*1500 | φ700*1500 |
8 | Total power(Kw) | 80.75 | 75.3 | 122.6 | 106.75 |

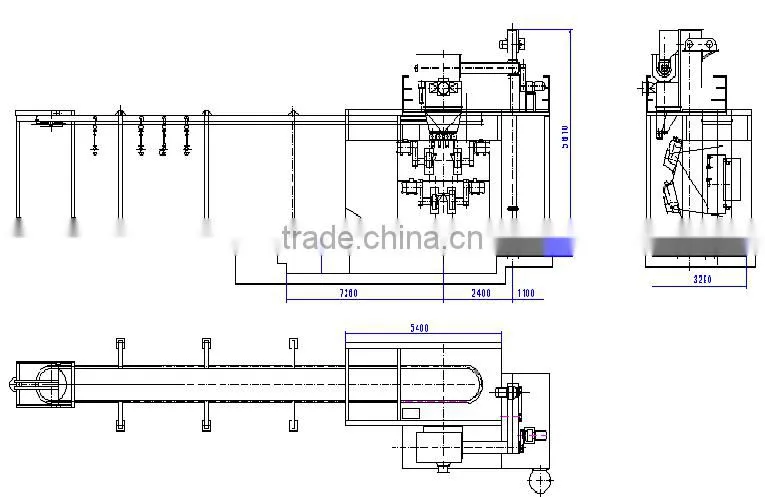

overhead chain system
work piece spinning device blast blade pneumatic abrasive feeder
blastwheel wear parts
blast wheel wear parts service time
wear parts chemical analysis table:
