Help CenterQ376F Hanger Type Shot Blasting Machine for Lage and Smal Casting
Related Products
-
Q3110BII Series Top Quality Continuous and Reliable Rolling Drum Type Shot Blasting Machine and Wear PartsUS$ 4,950 - 5,100MOQ: 1 Set -
Q37 Series Price Favorable Hanger Type Shot Blasting Machine China Supplier Hot SaleUS$ 5,800 - 6,500MOQ: 1 Set
-
QR3210 Automatic Loading System Tumble Belt Shot Blast Cleaning MachineUS$ 22,000 - 26,000MOQ: 1 Set
-
Catenary Stepping Overhead Conveyor Chain Shot Blasting Machine by China Supplier OfferUS$ 45,600 - 46,650MOQ: 1 Set
-
QH900 Gas Cyliner Shot Blasting MachineUS$ 23,000 - 28,000MOQ: 1 Set
Features:

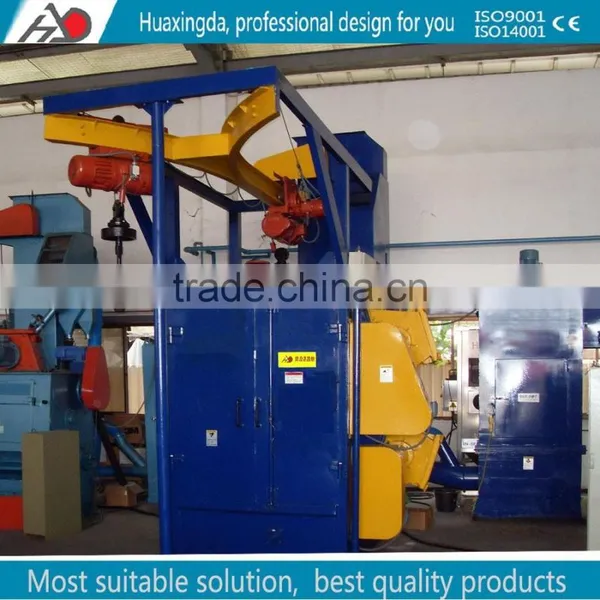

1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
hoist work piece spinning device blast blade

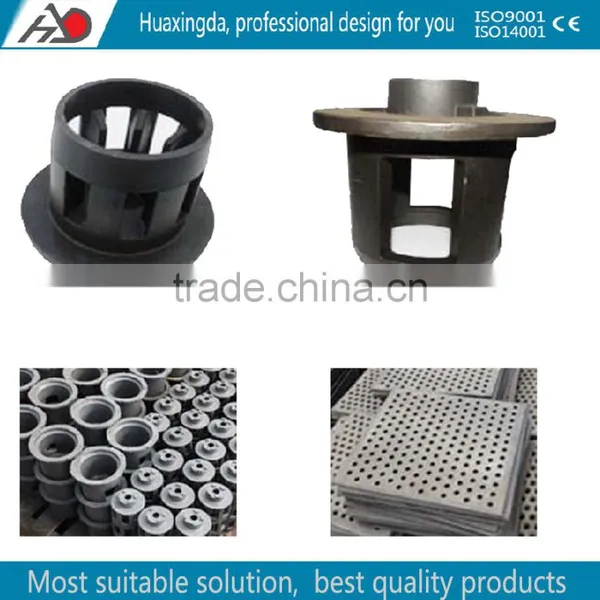

blastwheel wear parts
blast wheel wear parts service time
Technical parameters:
Serial number |
Item |
Type |
Q376F |
Q378. |
Q3710 |
QD3710. |
Q3720 |
Q3730 |
Q3750 |
Q3780 |
1 |
Size of cleaning piece |
mm |
Φ600*1100 |
Φ800*1500 |
Φ900*1600 |
Φ900*1600 |
Φ1400*2300 |
Φ1600*2200 |
Φ1800*2500 |
Φ2000*3000 |
2 |
Carrying weight of single hook |
kg |
600 |
1000 |
1000 |
1000 |
2000 |
3000 |
5000 |
8000 |
3 |
Abrasive flow rate |
Kg/min |
2*120 |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
4*250 |
4 |
Lifting amount of elevating conveyor |
t/h |
15 |
22 |
30 |
30 |
45 |
45 |
60 |
60 |
5 |
Separating amount of separator |
t/h |
15 |
22 |
30 |
30 |
45 |
45 |
60 |
60 |
6 |
Ventilation capacity |
m3/h |
5000 |
8000 |
9000 |
9000 |
15000 |
15000 |
18000 |
20000 |
7 |
Power(excluding dedusting) |
kw |
19 |
32.5 |
36.55 |
39.55 |
61.27 |
64.4 |
78.4 |
81.5 |
8 |
Outline dimensions |
mm |
4429*2850*3443 |
4325*2660*5009 |
5047*3850*5156 |
5844*2742*5716 |
6110*3599*7842 |
7085*4650*8652 |
7062*5460*8652 |
8050*6400*8526 |
wear parts chemical analysis table:
