ZH8415 Cold-core shooting machine
- 10 Set / Sets per Month
- qingdao port
- T/T Credit Card
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HXD |
Model Number: | ZH8415 | Voltage: | 380V | Power(W): | customized |
Dimension(L*W*H): | customized | Weight: | Customized Dimension | Certification: | CE/ISO9001 |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

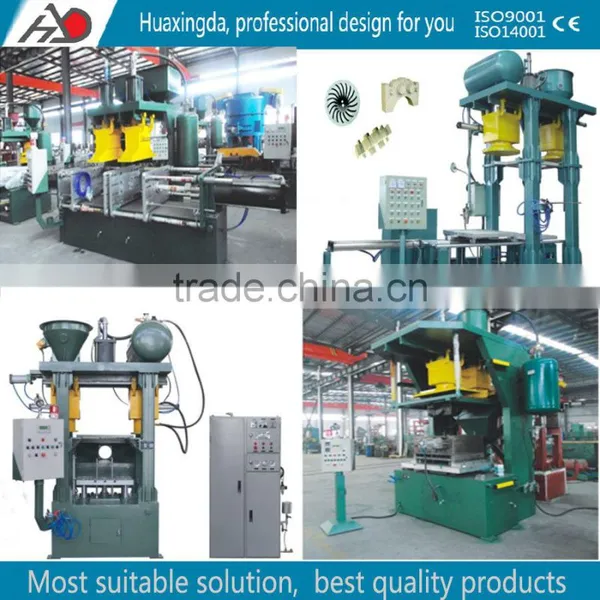

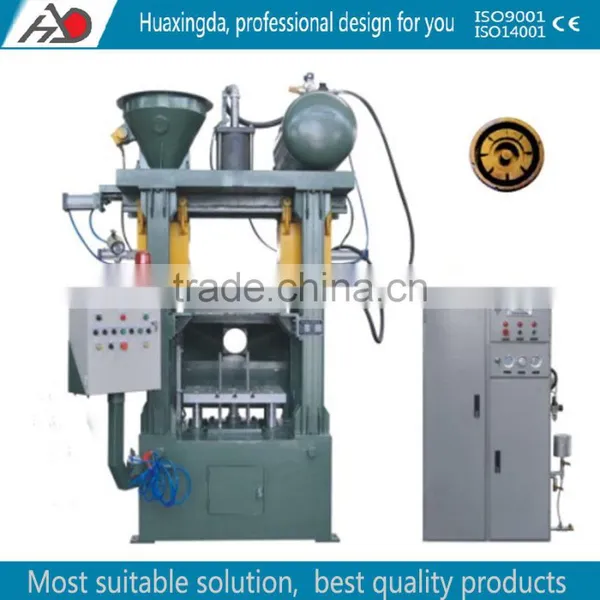

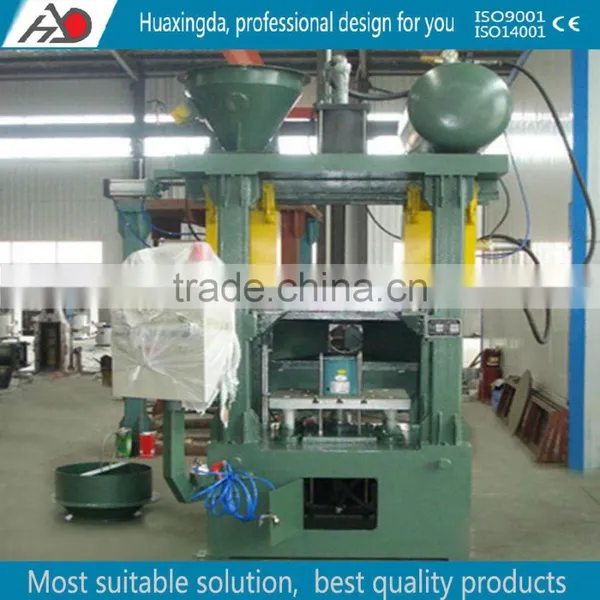

ZH8415 Cold-core shooting machine
Best Quality Widely Use Core Shooting Machine:
Core shooter is widely applied in foundry industry in recent years, due to use sand core shooting machine to mould, can not only save high salary of moulding labor, because is many boxes stacked pouring, can also reduce the waste of ingate and riser, the coated sand after pouring, collapsibility is very good, good for sand. sand core shooting machine production efficiency is high, the size precision of sand mould, can be appropriately reduced processing amount. Easy operation, the casting finished produts yield high . More foundry prefer using sand core shooting machine to mould.
(1) ZH8415 Cold-core shooting machine
Technical characteristics:
PLC control,CPM2A of MORON
Mold assembly, compress, hydraulic control
Shooting, walking, core top, pneumatic control
Triethylamine generator(We can make the low and high allocation according to the customer’s requirements)
It is suitable for the brake disk, the blade and the disk-shaped sand core
ZH8415 | |
Molding board maximum dimension(mm) | 700X600 |
Molding minimum thick(mm) | 300 |
Mould maximum open height(kg) | 580 |
Maximum sand core weight(kg) | 25 |
Sand hopper capacity(kg) | 200 |
control | Pneumatic/Hydraulic |
Working pressure(Mpa) | 10 |
Hydraulic pressure system(L/min) | 58 |
Motor power(Kw) | 7.5 |
System pressure | 0.5-0.6 |
Sand shoot press(Mpa) | 0.3-0.45 |
Operation mode | Semi-automatic Automatic |
(2) ZH8060 core shooter(Cold and heat )
Technical characteristics:
Core making process is simple, easy to operate;
PLC programmable control;
We can access to car batteries according to the customer’s requirement;
Die temperature automatic control;
It is suitable for the impeller, the blade and the disk-shaped sand core system.
Type | ZH8060-40 |
Molding minimum thick(mm) | 400 |
Molding maximum thick(mm) | 600 |
Mould assembly process(mm) | 450 |
Worktable size(mm) | 800X700 |
Maximum sand core weight(kg) | 40 |
Sand hopper capacity(kg) | 200 |
Heating mode | Electric heating/triethylamine |
Control | Pneumatic/hydraulic |
System work press(Mpa) | 10 |
Hydraulic pressure system(L/min) | 58 |
Motor power(kw) | 7.5 |
Pneumatic system(Mpa) | 0.5-0.6 |
Sand shoot press(Mpa) | Hot 0.20-0.35 cold 0.4-0.7 |
Operation mode | Semi-automatic/automatic |
(3) ZH870 series lever parting core shooter (Cold and heat)
Type | ZH750 | ZH870 | ZH870B | ZH1080 |
Molding maximum dimension(mm) | 780×600 | 930×750 | 930×750 | 1150×950 |
Molding maximum thick(mm) | 280 | 280 | 280 | 280 |
Mould assembly process(mm) | 300 | 300 | 300 | 300 |
Maximum sand core weight(kg) | 20 | 25 | 25 | 35 |
Sand hopper capacity(kg) | 200 | 200 | 200 | 300 |
Heating mode | Electric heating Triethylamine | Electric heating Triethylamine | Electric heating Triethylamine | Electric heating Triethylamine |
Electric heating power(Kw) | 25 | 30 | 30 | 45 |
Operation mode | Semi-automatic Automatic | Semi-automatic Automatic | Semi-automatic Automatic |
(4) ZH86 full automatic double station and double shooting head core shooter
Technical characteristics:
Double station, double shooting head
PLC programmable control
Adjustable about the technical parameters
Molding temperature about control
Type | Z8610BF | Z8613B | Z8613BF |
Molding maximum dimension(mm) | 620×300 | 660×330 | 920×320 |
Maximum sand core weight(kg) | 20 | 20 | 20 |
Sand hopper capacity(kg) | 200 | 200 | 200 |
Heating mode | Electric heating | Electric heating | Electric heating |
Electric heating power (Kw) | 25 | 25 | 25 |
System pressure (Mpa) | 0.55-0.65 | 0.55-0.65 | 0.55-0.65 |
Operation mode | Manual Monocyclic automatic | Manual Monocyclic automatic | Manual Monocyclic automatic |
Type | Z8615B | Z8615BF | Z8616BF |
Molding maximum dimension(mm) | 620×400 | 680×420 | 760×460 |
Maximum sand core weight(kg) | 20 | 20 | 20 |
Sand hopper capacity(kg) | 200 | 200 | 200 |
Heating mode | Electric heating | Electric heating | Electric heating |
Electric heating power (Kw) | 25 | 25 | 25 |
System pressure (Mpa) | 0.55-0.65 | 0.55-0.65 | 0.55-0.65 |
Operation mode | Manual Monocyclic automatic | Manual Monocyclic automatic | Monocyclic automatic |
