ZH95 Series Shell Core Shooting Molding Machine

ZH95 Series Shell Core Shooting Molding Machine thumbnail-1
ZH95 Series Shell Core Shooting Molding Machine thumbnail-2
ZH95 Series Shell Core Shooting Molding Machine photo-1
ZH95 Series Shell Core Shooting Molding Machine photo-2
US$ 5,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HXD
Contact Supplier Request Quote Chat Now
Qingdao Huaxingda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name HXD
Model Number Z956K
Voltage 380V
Power(W) customized
Dimension(L*W*H) customized
Weight Customized Dimension
Certification CE/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas



Specification

Item

Specification

Note

Mold board maximum dimension

550X400mm

Angle included

Cover die thickness

150mm



movable pattern thickness

150mm



Maximum distance of pattern span

600mm



Patter closing force

10000N



Injection hopper volume

200Kg



Heating

electricity



Heating power

25KW



Air pressure requirement

0.55-0.6Mpa



Sand shooting pressure

0.3-0..4Mpa

Pressure adjustable

Electricity power supply

AC380v/50Hz 3Phz



Control power voltage

DC24V



Core material

Alkalinity phenolic



Overall size

2400*2400*2560



Total weight

1.9Tonne

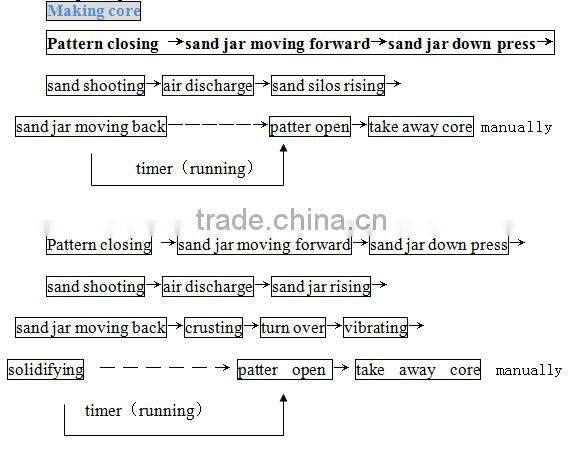

Function description:

1.      The technical parameters of the Z95 series full automatic shell core machine:

2.      Two function selectable on Panel.

3.      PLC programmable control.

4.      Adjustable about the technical parameters.

5.      Adopt the permanent baffle board.

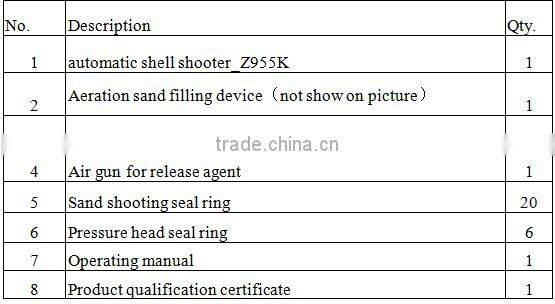

Package list
