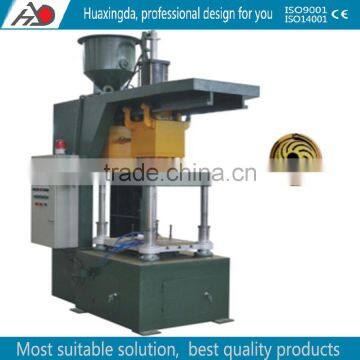

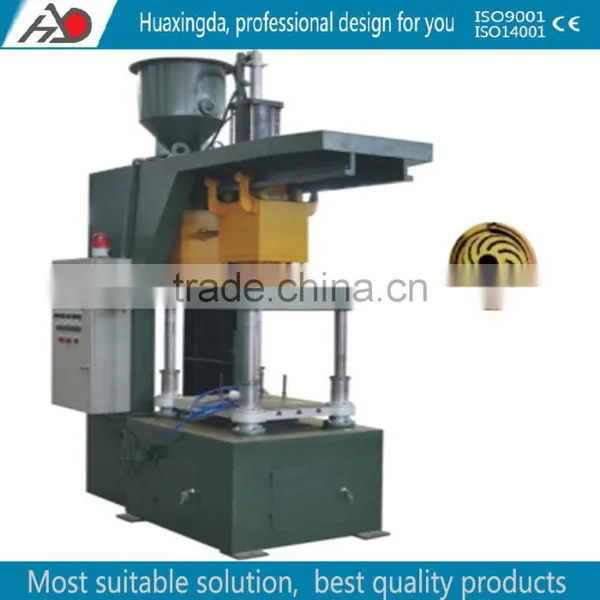

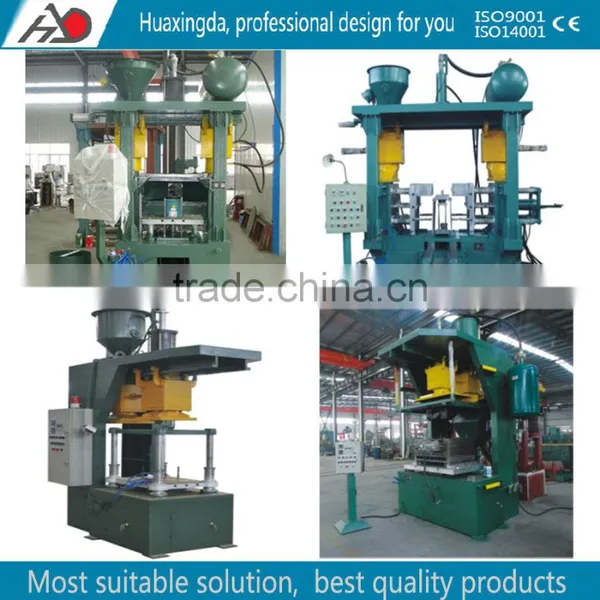

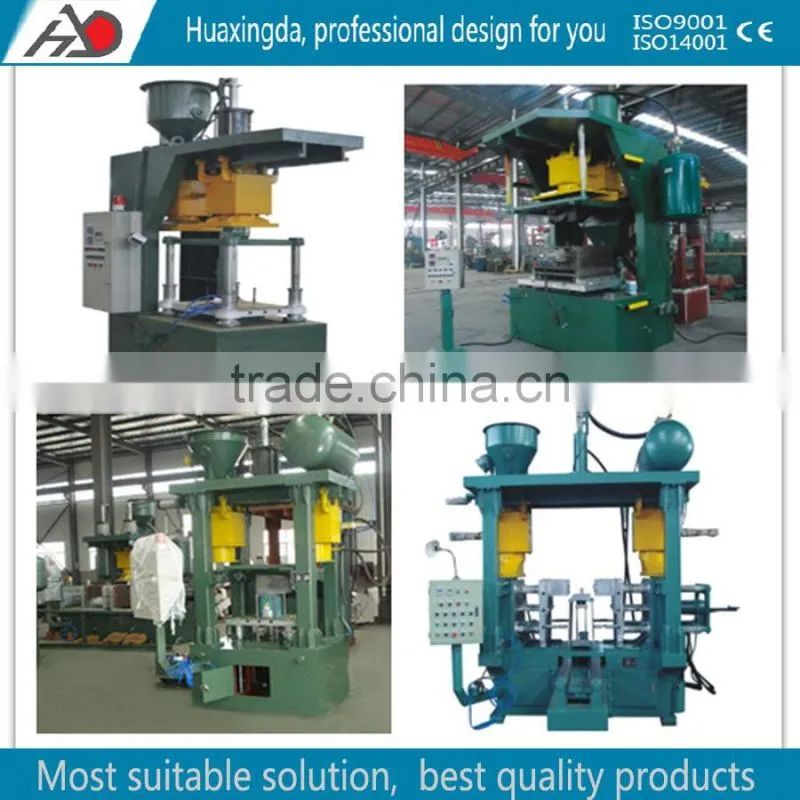

ZHT0700 Core shooting machine for brake disk
- 10 Set / Sets per Month
- qingdao port
- T/T Credit Card
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HXD |
| Model Number: | ZHT0600 | Voltage: | 380V | Power(W): | customized |
| Dimension(L*W*H): | customized | Weight: | Customized Dimension | Certification: | CE/ISO9001 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
ZHT0600 core shooter machine/Core shooting machine
Best Quality Widely Use Core Shooting Machine:

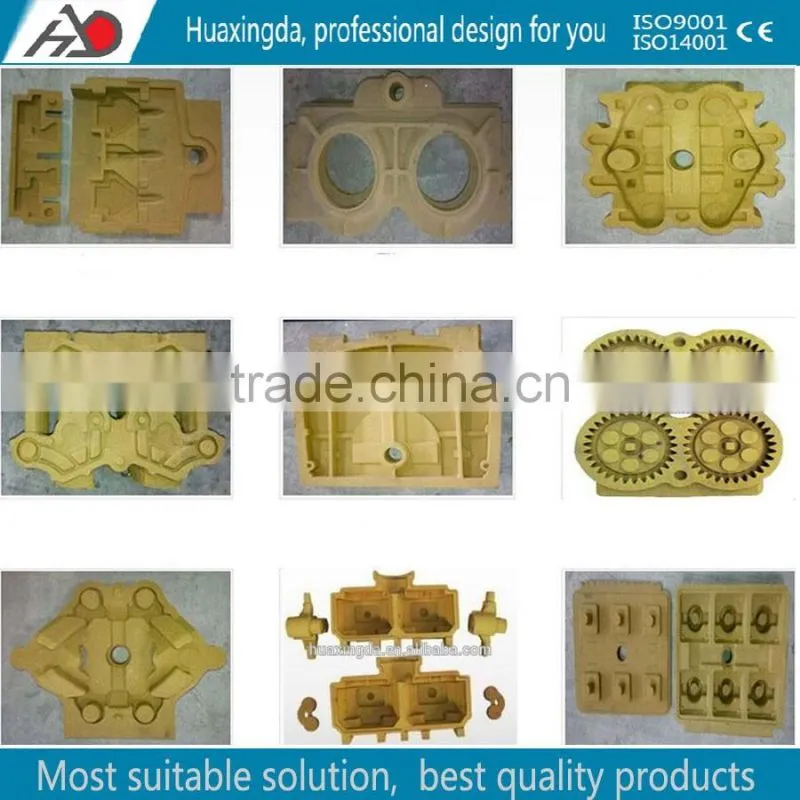

Core shooter is widely applied in foundry industry in recent years, due to use sand core shooting machine to mould, can not only save high salary of moulding labor, because is many boxes stacked pouring, can also reduce the waste of ingate and riser, the coated sand after pouring, collapsibility is very good, good for sand. sand core shooting machine production efficiency is high, the size precision of sand mould, can be appropriately reduced processing amount. Easy operation, the casting finished produts yield high . More foundry prefer using sand core shooting machine to mould.
(1) ZHT0600/700 core shooting machine for brake disk
Technical characteristics:
The coremaking process is simple, easy to operate.
PLC programmable control
Adjustable about the technical parameters
Molding temperate automatic control
Meet the production requirements for all various of the sand core of brakes disk
Type | ZHTO600 | ZHTO700 |
Moulding board maximum dimension(mm) | 780X600 | 930X750 |
Molding minimum thick(mm) | 280 | 280 |
Mould assembly process(kg) | 300 | 300 |
Maximum sand core weight(kg) | 8 | 10 |
Sand hopper capacity(kg0 | 200 | 200 |
Heating way | Electric heating | Electric heating |
Electric heating power(kw) | 20 | 30 |
System pressure(Mpa) | 0.55-0.70 | 0.55-0.70 |
Operation mode | Auto /Manual | Auto /Manual |
(2) ZH750 cold-core shooting machine
Technical characteristics:
PLC control. CPM2A of MORON
Mold assembly, compress, hydraulic control
Shooting, walking, core top, pneumatic control
Triethylamine generator (we can make the low and high allocation according to the customer’s
requirements
It is suitable for the brake disk, the blade and the disk-shaped sand core
Type | ZH750-25 |
Molding plate size(mm) | 700x600 |
Molding minimum thick(mm) | 280 |
Mould maximum open height(mm) | 580 |
Maximum sand core weight(kg) | 25 |
Sand copper capacity(kg) | 160 |
Control | Pneumatic/hydraulic |
Working pressure(Mpa) | 10 |
Hydraulic pressure system(L/min) | 58 |
Motor power(kw) | 7.5 |
Pneumatic system(Mpa) | 0.58 |
Sand shot press(Mpa) | 0.4-0.6 |
Operation mode | Semi-automatic/automatic |
(3) ZH8060 core shooter(Cold and heat ,two kinds of use )
Technical characteristics:
The coremaking process is simple, easy to operate;
PLC programmable control!
Adjustable about the technical parameters,
Manual boundary(it can according to the customer’s requirements) ;
Molding temperature automatic control
We can access to car batteries according to the customer’s requirement
It is suitable for the impeller, the blade and the disk-shaped sand core system
Type | ZH8060-40 |
Molding minimum thick(mm) | 400 |
Molding maximum thick(mm) | 600 |
Mould assembly process(mm) | 450 |
Worktable size(mm) | 800X700 |
Maximun sand core weight(kg) | 40 |
Sand hopper capacity(kg) | 200 |
Heating mode | Electric heating/triethylamine |
Heating power(kw) | 45 |
Control | Pneumatic/hydraulic |
System work press(Mpa) | 10 |
Hydraulic press system(L/min) | 58 |
Motor power(kw) | 7.5 |
Pneumatic system(Mpa) | 0.58 |
Sand shoot press(Mpa) | Hot 0.20-0.35 cold 0.4-0.7 |
Operation mode | Semi-automatic/automatic |
(4)Z8615 automatic double station and double shooting head core shooter
Type | Z8615 |
Moulding board maximum dimension(mm) | 620x400 |
Moulding maximum size(mm) | 620x420x |
Mould assembly process(kg) | 400 |
Maximum sand core weight(kg) | 18 |
Sand hopper capacity(kg0 | 200 |
Heating way | Electric heating |
Electric heating power(kw) | 20 |
System pressure(Mpa) | 0.55-0.6 |
Operation mode | Auto /Manual |
(5) ZH9650 four vertical column horizontal parting auto cover sand machine
Technical characteristics:
ZH 9650 cover sand machine is a new type hot-box core shooting machine which the sand core below 25 kilograms, efficient and automatic. It is the top of core shooter which developed based on the ZH-600,ZH-700 type. It is applicable to the sand core of horizontal parting!
ZH9560 core shooting machine is applicable to produce all kinds of complicated sand cores for mass production! It has advantages of accurate sand core size, high productivity, low labor intensity and so on! It adopts the electric heating mode and equipped with the appropriate temperature-controlled instrument.
Type | ZH9650 |
Maximum size of core box(LXWXH)mm | 900x650x300 |
Maximum distance between molding plate(mm) | 650 |
Die assembly cylinder process(mm) | 400 |
Die assembly cylinder diameter(mm) | 125 |
Sand core maximum weight(kg) | 25 |
Sand hopper maximum capacity(kg) | 200 |
Heated power(kw) | 30 |
Drive mode | Pneumatic |
Operate mode | Manual/single |
Power(220v) | 50HZ |
System pressure(Mpa) | 0.5-0.6 |
Sand shoot pressure(Mpa) | 0.3-0.45 |
Used sand core | Phenolic resin cover sand |
Total weight (T) | 2 |
(6) ZH94 series core shooter(cold and heat)
Technical characteristics:
PLC programmable control
Adjustable about the technical parameters
Molding temperature automatic control

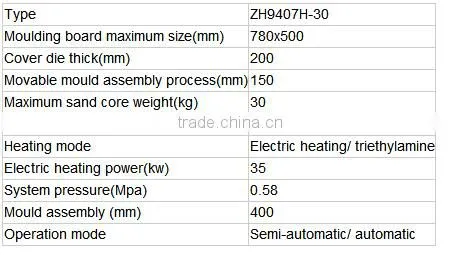

(7) ZH9407H-30series core shooter(cold and heat)
Technical parameters:
PLC programmable control
Adjustable about the technical parameters
Sand core moveable equipment (include the top core)
Human operation
(8) ZH9407H-30B series core shooter(cold and heat)
Technical characteristics:
PLC programmable control
Adjustable about the technical parameters
Sand core moveable equipment (include the top of core)
The top core box templates can move up and down
It is suitable for four-cylinder, six-cylinder, water jacket sand core core system
Human operation

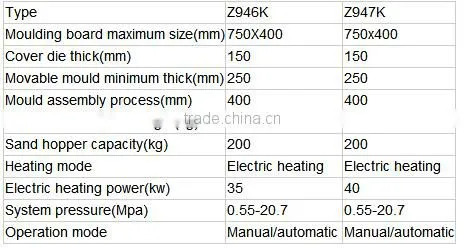

(9) Z946K/Z947K standard core shooter
The technical characteristics of the Z946K/Z947K standard core shooter:
Meet the production needs of small and complicated sand core or shell mould
PLC programmable control
Adjustable about the technical parameters
Molding temperature automatic control
(10) Z95 series full automatic shell core machine
The technical parameters of the Z95 series full automatic shell core machine:
Meet the needs of shell mould, shell core
PLC programmable control
Adjustable about the technical parameters
Adopt the permanent baffle board
