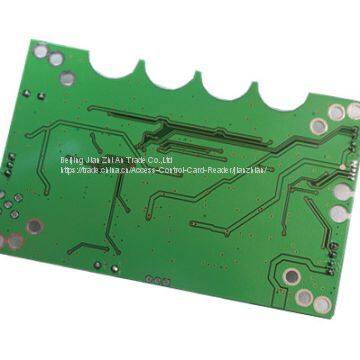

YST307 series are RFID reader/writer module which pick or send command by USB and RS232 ports. YST307 series meet kinds of international contactless IC card standards. Also YST307 series can support kinds of cards from suppliers. YST307series RF antenna is separated from the module. The RFID module can be very good at reading/writing and very stable for impedance analyzer adjusting between RF circuit and antenna. The module is connected to the antenna by the 50ohm cable. It is with flexible antenna size and layout.
Characters:
The module is connected to the antenna by the 50ohm cable. It is with flexible antenna size and layout.
Qualifications
PCD: NXP RC500
Working frequency:13.56MHz
RF standard: ISO14443A, ISO14443B, ISO15693, ISO7816
SAM card slot: 2
Cable to antenna: 60cm, can be custom-made, 0.1-1.5mm
Operating distance: 80mm(depending on card and antenna design)
Anti collision ability: Full functions anti collision; be able to process multi-card simultaneously; be able to set operate single card only.
Auto detecting card: yes, default OFF
EEPROM: 4K
Interface: USB or RS232
Max command length: 1024 Bytes
Interface level: 3.3V
Power consumption: 50mA
Dimension: 80mm*60mm*8.5mm
Package: DIP32
Weight about:100g
Operating temperature: -25～+85℃(-77～+185℉)
Storage temperature: -40～+125℃(-104～+257℉)
ISP: Yes
Module |
YST307A |
YST307C |
YST307G |
YST307H |
RF base station |
RC500 |
RC531 |
RC400 |
RC632 |
Interface |
USB, RS232 |
USB, RS232 |
USB, RS232 |
USB, RS232 |
Data FLASH |
4K |
4K |
4K |
4K |
Buzzle |
yes |
yes |
yes |
yes |
RF standard |
ISO14443A, Mifare |
ISO14443A, ISO14443B, Mifare |
ISO15693 |
ISO14443A, ISO14443B, ISO15693 Mifare |
Reading distance |
80mm |
80mm |
80mm |
80mm |
SAM Card slot |
2 |
2 |
2 |
2 |
PICC |
|
|
I.CODE 1 |
MIFARE 1K |
