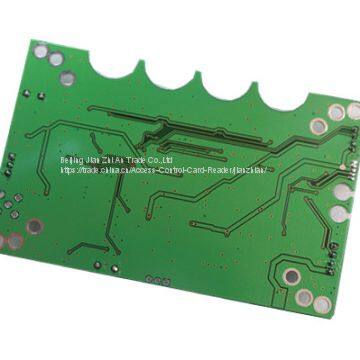

YST306 series are RFID reader/writer module which pick or send command by USB and RS232 ports. YST306 series meet kinds of international contactless IC card standards. Also YST306 series can support kinds of cards from suppliers. YST306 series RF antenna is separated from the module. The RFID module can be very good at reading/writing and very stable for impedance analyzer adjusting between RF circuit and antenna. YST306 series RF antenna is separated from the module. The module is connected to the antenna by the 50ohm cable. It is with flexible antenna size and layout. There is a LED lamp holder, can output LED lamp state.
Qualifications
Where it can be used: bus, access control system, bank, water meter, etc.
PCD: NXP RC500
Working frequency: 13.56MHz
RF standard: ISO14443A, mifare, ISO14443B, ISO15693, ISO7816
SAM card slot:4
Cable to antenna: 60cm, can be custom-made, 0.1-1.5mm
Operating distance: 80 mm (depending on card and antenna design)
Cable to antenna: 60cm, can be custom-made, 0.1-1.5mm
Anti collision ability: Full functions anti collision; be able to process multi-card simultaneously; be able to set operate single card only.
Auto detecting card: yes, default OFF
EEPROM: 4K
Interface: USB or RS232
Max command length: 1024 Bytes
Interface level: 3.3V
Power consumption: 50mA
Dimension: 105mm*67mm *8.5mm
Package: DIP32
Weight about: 100g
Operating temperature: -25～+85℃(-77～+185℉)
Storage temperature: -40～+125℃(-104～+257℉)
ISP: Yes
Module | YST306A | YST306C | YST306G | YST306H |
RF base station | RC500 | RC531 | RC400 | RC632 |
Interface | USB, RS232C | USB, RS232C | USB, RS232C | USB, RS232C |
Data FLASH | 4K | 4K | 4K | 4K |
Buzzle | yes | yes | yes | yes |
RF standard | ISO14443A, Mifare | ISO14443A, ISO14443B, Mifare | ISO15693 | ISO14443A, ISO14443B, ISO15693 Mifare |
Reading distance | 80mm | 80mm | 80mm | 80mm |
SAM Card slot | 4 | 4 | 4 | 4 |
PICC | | | I.CODE 1 | MIFARE 1K |
